All stock codes associated to this product
USB3DHDS, II36939, 9319868745963

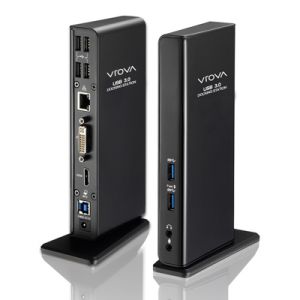

Alogic VROVA USB3.0 Universal Dual Display Docking Station
Product Description
The VROVA Universal USB 3.0 docking station (USB3DHDS) provides extra ports to the computer that has extra connectivity needs. Through the docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, speaker and microphone using only one USB port on your computer.
This docking station features built-in USB 3.0 ports which mean you can enjoy the super speed data transmission between USB peripherals. Besides, this product is fully compliant with the USB 1.1/2.0 specification.
Dual Display is other major feature of the product with the DVI and HDMI® port(s), you can connect more monitor, LCD or projector. The connected monitor can be configured to either mirror your primary screen, or extend the Window desktop allowing visibility of more applications at the same time. No more stacking windows within the confines of a single display.
Product Specification
|
Host Interface
|
USB 3.0
|
|
Connector
|
Video output
|
HDMI 30pin Female Connector
|
|
DVI HDDE 30pin Female Connector
|
|
Host upstream link
|
USB B Type Female Connector
|
|
HUB downstream link
|
USB A Type Female Connector
|
|
Audio Port
|
3.5mm stereo mini-jack 2.1ch
|
|
Ethernet Port
|
RJ45 Connector
|
|
Power
|
DC power jack
|
|
Video resolution
|
HDMI
|
2048x1152
|
|
DVI
|
2048x1152
|
|
Supported colors
|
16 Bits and 32 Bits
|
|
Audio
|
2.1Ch
|
|
Ethernet
|
10/100/1000
|
|
Power
|
Power Mode
|
Self-powered
|
|
Power Adapter
|
Input: AC 100-240V
Output: DC 5V/4A
|
|
Power Consumption
|
Operating Power: 14.43W
Suspend Mode Power: 1.95W
|
|
Physical Properties
|
Housing
|
ABS (Plastic)
|
|
Weight
|
365g approx.
|
|
Working Environment
|
Operation Temperature
|
0~ 40 degree
|
|
Storage Temperature
|
-20 ~ 70 degree
|
|
Compliance
|
CE, FCC
|
System requirements
The minimum requirements for the PC are:
1.6 single core CPU or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor 1GB of RAM
USB 2.0/3.0 port
30MB of available disk space
Windows® XP 32-bit,Windows® Vista 32/64-bit,Windows® 7 32/64bit, Windows® 8 32/64bit.
To play DVD on the extra connected monitor through docking station, in addition to the requirements above, the following requirements should also be met:
With dual core CPU at 2.0 GHz processor clock
PRODUCT FEATURE
Compatible with USB 3.0/2.0 specification
Resolution up to 2048x1152
Support audio 2.1 channel
Support Gigabit Ethernet
Support HDMI® 1.4
Support 1 X USB3.0 Fast Charge Port for Tablets / Mobile
Package contents
USB3.0 Docking Station x1
USB 3.0 Cable x1
Power Adapter x1
CD (Driver and User's Manual) x1
Quick Installation Guide x1
