Overview
The Commander FT is Thermaltakes first-ever touchscreen fan controller,
allowing you to monitor and control the fan speed and system temperature of five
fans at one time! The expansive 5.5 touchscreenone of the largest availablemakes
interacting with it easy, and the auto, manual, performance, and silent
operating modes give you comprehensive control of fan cooling performance. All
you need is an empty 5.25 driver bay and youre ready to go.
5.5” Remarkable Touchscreen
With the Commander FT’s extraordinarily large 5.5” touch panel and gorgeous
layout, on-the-fly cooling control and noise adjustments has never been
easier.

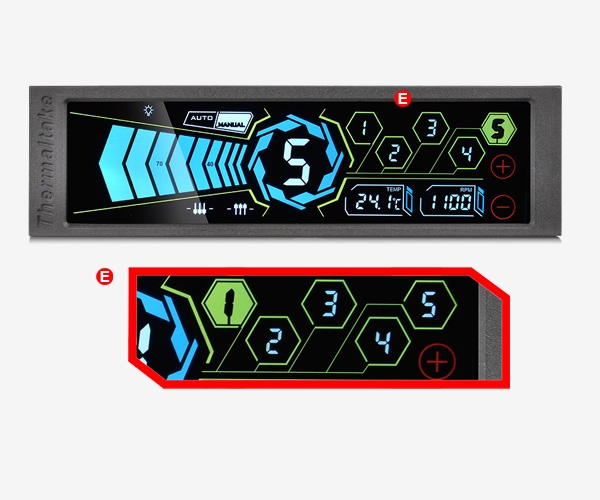

Channel Selector
The Commander FT supports up to five independent fans, with each channel
delivering up to 10W to drive all types of fan efficiently. Tap from ‘1’ to ‘5’
on the central fan display to easily adjust fan speeds independently or
simultaneously.

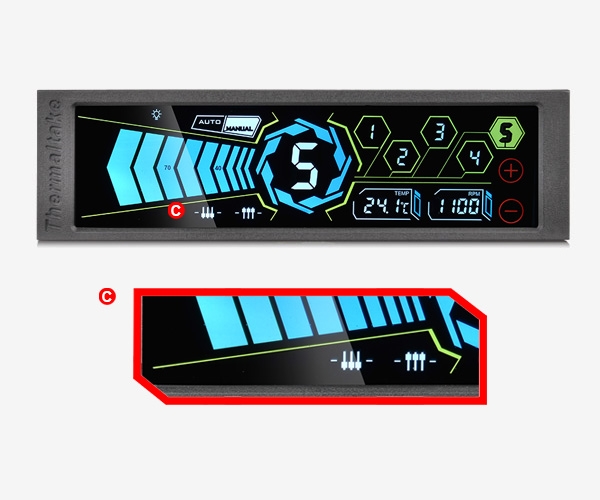

Intuitive Fan Speed Slider
The fan speed slider offers complete fan control through a user-friendly
interface.

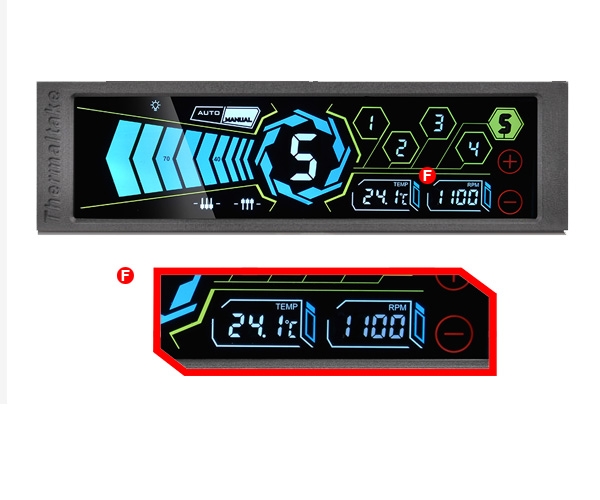

Thermal Monitoring
The Commander FT helps you keep an eye on temperature, showing you
information down to the selected fan speed (RPM). Choose Celsius or Fahrenheit,
according to your preferences. Additionally, the embedded temperature warning
alarm can be set.
Performance and Silent Mode
Two adjustments arrows at the bottom left are performance and silent mode.
The performance mode is tuned for best cooling performance, automatically
adjusts all fans to its fastest speed and provides the ultimate airflow in
seconds.

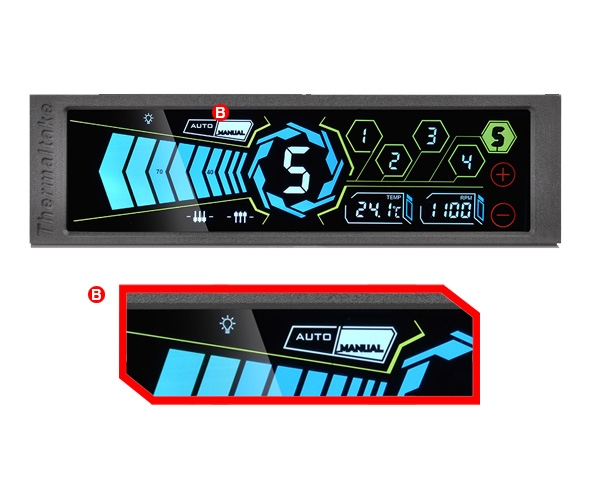

Auto and Manual Mode
The Commander FT’s Auto mode is intelligently tuned to automatically adjust
all fans based on thermal sensor temperature readings. Manual mode is completely
customizable, allowing for individual fan speed adjustments; user settings will
be memorized and maintained even after reboot.

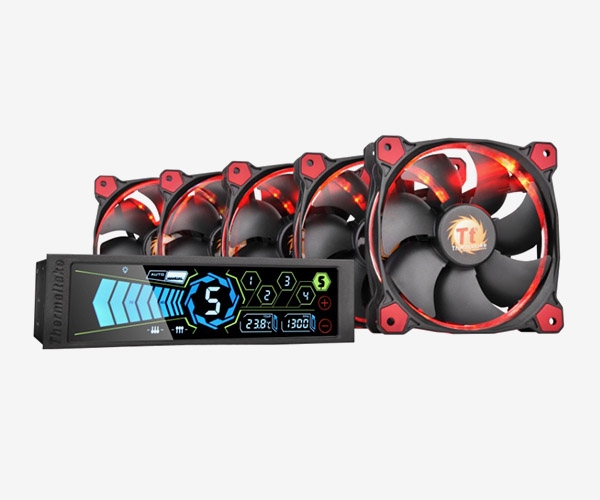

Comprehensive Control of Fan Cooling and Noise
Support up to 5 independent fans, each channel delivers up to 10W to drive
any type of fans efficiently. Commander FT makes it easier for users to make
adjustments on cooling control and minimize the noise as well.

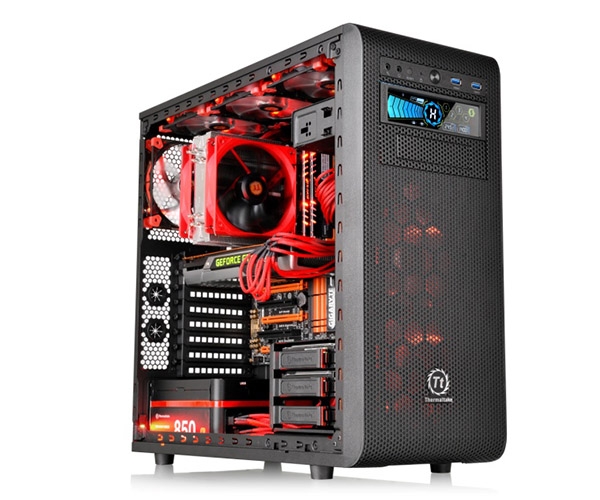

Easy Installation
The Commander FT comes with all necessary cables to connect up to five fans
with standard 3-pin or PWM connector. All you need is an empty 5.25” drive bay
and you’re ready to go!
|
Dimension |
148 x 88 x 42 mm |
|
Form
Factor |
5.25 Driver
Bay |
|
Material |
Steel,
Plastic |
|
Weight |
300g |
|
Fan |
Channels :
5 |
|
Channel Wattage :
10W |
|
Combined Wattage :
50W |
|
Speed Range : 0 9990
RPM |
|
Screen |
Size : 5.5
Inches |
|
Type : Touch
Screen |
|
Main Function : Fan
Controller |
|
Temperature |
Sensor :
1 |
|
Temperature Range : 0 -
90 |
|
Display Unit :
Fahrenheit (F) / Celsius (C) |
|
Connector |
Fan : 3-Pin or
4-Pin |
|
Power : 4-Pin
Molex |
|
Accessories |
M3 Screws x 4 ; Sensor
tape x 1 |
|
Product Part
No. |
AC-010-B51NAN-A1 |
