- Intel Xeon E3-1241v3 (3.5 GHz, 8 MB cache, 4 cores)
- Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
- NVIDIA Quadro K620 (2 GB)
- 16 GB DDR3-1600 ECC unbuffered SDRAM (2 x 8 GB)
- HP Z Turbo Drive 256 GB PCIe SSD
Rock solid reliability, affordably priced
Designed for heavy 24x7x365 workloads. The affordable HP Z230 Tower Workstation handles the demanding workloads of business applications.
Gain peace of mind from our extreme test and validation processes with workstations designed for always-on environments.
Control your environmental impact better than ever[1] while lowering your total cost of ownership with a 92% efficient power supply and enhanced system reliability.
Work smarter with your software tools. This HP workstation has earned a wide range of ISV certifications to deliver better, smarter performance.
Power for now, room to grow
Grow along with your business. The HP Z230 Tower Workstation is designed to scale and expand, so you can add more storage and connectivity when you need it.
Complete computing power in a new compact design. HP’s redesigned and more compact workstation is robust and flexible, while freeing up more space for work.
Spend less time waiting. Speed up data transfers with six available drive bays including a 2.5-inch HD bay for high speed solid state drives.
Boost your storage performance with RAID, solid state drives, or get the best of both worlds by combining large hard drives with an optional solid state drive as a cache device.[2]
Optimize this workstation for peak performance. HP Performance Advisor helps you easily configure your system with the best settings designed for specific applications.[3]
Totally immersive. Perfectly productive.
Power to spare—and share. The latest Intel® Xeon® processors[4] and rich graphics keep up with your work. Plug in and work on up to six displays.[5,6]
Enjoy the latest in performance and energy efficiency from Intel’s next generation processor architecture.
Keep more work front-and-center with support for up to six monitors. Choose between cost-effective integrated graphics and powerful 2D or 3D discrete graphics choices.[5,6]
Easily connect your peripherals and devices using the four PCIe slots[7], one PCI input/output slot, ten external USB ports and the fast charging USB port.
With HP RGS you can take your graphics intensive workstation applications wherever you go. Collaborate with colleagues around the office or around the world, in real time.
Technical details

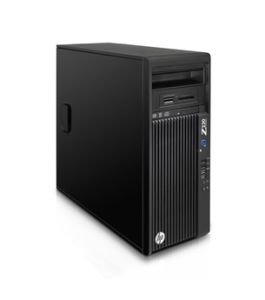

HP Z230 Tower Workstation
Supported Operating Systems
Operating system
- Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
Operating system note
- This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
Processor
Processor family
Processor
- Intel Xeon E3-1241v3 (3.5 GHz, 8 MB cache, 4 cores)
Number of processors
Memory
Memory, standard
- 16 GB DDR3-1600 ECC unbuffered SDRAM (2 x 8 GB)
Memory upgrade
Drives
Hard drive description
- HP Z Turbo Drive 256 GB PCIe SSD
Optical drive
- SATA SuperMulti DVD writer
Graphic Subsystem
Graphics
- NVIDIA Quadro K620 (2 GB)
Multimedia
Audio
- Integrated Realtek ALC221 HD audio
Input devices
Keyboard
Pointing device
Battery and Power
Power
- 400 W 92% efficient, wide-ranging, active PFC
Connectivity and Communications
Network interface
- Intel I217LM PCIe GbE controller
Ports
- 2 USB 3.0
- 4 USB 2.0
- 2 PS/2
- 1 RJ-45
- 1 audio line in
- 1 audio line out
Warranty
-
- 3-year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
