All stock codes associated to this product

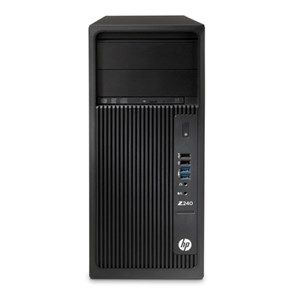

Z240(T9U05PA), 889894922090
Part Number: T9U05PA
Features
HP’s entry level workstations just got better. The HP Z240 with two amazingly versatile form factors, packs the performance, features, and reliability of a workstation into the price point of a desktop PC.
Intel® Xeon® E3-1225v5 with Intel HD Graphics 530 (3.3 GHz, up to 3.7 GHz with Intel Turbo Boost, 8 MB cache, 4 cores)
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
NVIDIA® Quadro® K2200 (4 GB)
8 GB DDR4-2133 ECC registered SDRAM (1 x 8 GB)
256 GB mSATA SSD
Features
Powered to manage your challenges
Powerful processors, graphics, memory, and two optional ultra-fast HP Z Turbo Drives[4] make the HP Z240 a true workstation-class solution. Handle your growing and complex workloads with performance for any stage in your work process.
Small price, big possibilities
The essential features of the HP Z240 Tower easily support your workload with slots and ports to spare. When you’re ready for workstation class features, like professional ISV certifications, the HP Z240 Tower is the right first step.
Priced for your budget
HP’s most affordable workstation allows you to customize your experience while still balancing your IT budget. HP reliability, thorough testing, and ISV certification means your HP Z240 is designed as a long-term budget friendly solution.
Specifications
| Supported Operating Systems |
| Operating system |
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) |
| Operating system note |
This
system is preinstalled with Windows 7 Pro software and also comes with a
license and media for Windows 10 Pro software. You may only use one
version of the Windows software at a time. Switching between versions
will require you to uninstall one version and install the other version.
You must back up all data (files, photos, etc.) before uninstalling and
installing operating systems to avoid loss of your data. |
| Processor |
| Chipset |
Intel® C236 |
| Processor speed |
3.3 GHz |
| Processor family |
Intel® Xeon® E3 processor |
| Processor |
Intel® Xeon® E3-1225v5 with Intel HD Graphics 530 (3.3 GHz, up to 3.7 GHz with Intel Turbo Boost, 8 MB cache, 4 cores) |
| Number of processors |
1 |
| Drives |
| Hard drive description |
256 GB mSATA SSD |
| Optical drive |
HP Slim Blu-ray Writer |
| External drive bays |
Two 5.25"
One slim ODD |
| Internal drive bays |
One 2.5"
Two 3.5" |
| Storage type |
SSD |
| Storage controller |
Integrated
SATA (4 ports 6 Gb/s) with RAID 0 (striped array) and RAID 1 (mirrored
array) supported on Windows operating system only. Requires identical
hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data
configuration) for PCIe SSDs. |
|
| Compatible displays |
HP Z27s 27-inch UHD Display
HP Z27q 27-inch IPS 5K Display
HP Z24s 24-inch UHD IPS Display
HP Z Display Z30i 30-inch IPS LED Backlit Monitor
HP Z Display Z27i 27-inch IPS LED Backlit Monitor
HP Z Display Z24i 24-inch IPS LED Backlit Monitor
HP Z Display Z23i 23-inch IPS LED Backlit Monitor
HP Z Display Z22i 21.5-inch IPS LED Backlit Monitor
HP DreamColor Z24x Professional Display
HP DreamColor Z27x Professional Display |
| Graphic Subsystem |
| Graphics |
NVIDIA® Quadro® K2200 (4 GB) |
| Graphics |
Discrete |
| Multimedia |
| Audio |
Integrated Realtek HD ALC221-VB audio |
| Input devices |
| Keyboard |
HP USB Business Slim Keyboard |
| Pointing device |
HP USB Optical Mouse |
| Connectivity and Communications |
| Network interface |
Integrated Intel® I219LM PCIe GbE |
| Ports |
2 USB 3.0
2 USB 2.0 (1 charging)
1 headphone
1 microphone |
| Expansion slots |
1 PCIe Gen3 x16
1 PCIe Gen3 x4 (x4 connector)
1 PCIe Gen3 x4 (x16 connector)
1 PCIe Gen3 x1 |
| Network interface type |
LAN |
| I/O Port location |
Front |
| Ports |
4 USB 3.0
2 USB 2.0
2 DisplayPort 1.2
1 DVI-I single link
2 PS/2
1 RJ-45
1 audio line-in
1 audio line-out |
| I/O Port location |
Back |
| Ports |
1 USB 3.0
2 USB 2.0 |
| I/O Port location |
Internal |
| Ports note |
1
USB 3.0 and 2 USB 2.0 ports available as 2 separate 2x10(3.0 x1, 2.0
x1) and 2x5(2.0 x2) header. Supports one HP Internal USB 2.0 Port Kit
and one USB 3.0 media card reader. |
| Battery and Power |
| Power |
400 W 92% efficient, wide-ranging, active PFC |
| Weights |
| Weight |
Starting at 8.6 kg |
| System Components |
| Form factor |
Tower |
| Software and Applications |
| Software |
HP Performance Advisor
HP Remote Graphics Software (RGS) 7.1
PDF Complete - Corporate Edition
Cyberlink Power DVD and Power2Go
HP PC Hardware Diagnostics UEFI
HP Client Security Software
Buy Office |
| Dimensions |
| Minimum dimensions (W x D x H) |
170 x 442 x 399 mm |
| Memory |
| Memory, standard |
8 GB DDR4-2133 ECC registered SDRAM (1 x 8 GB) |
| Memory slots |
4 UDIMM |
| Memory, maximum |
64 GB DDR4-2133 Unbuffered SDRAM |
| Memory maximum note |
Transfer rates up to 2133 MT/s |
| Warranty |
| Warranty |
3-year
(3-3-3) limited warranty and service offering includes 3 years of
parts, labor and on-site repair. Terms and conditions vary by country.
Certain restrictions and exclusions apply. |
