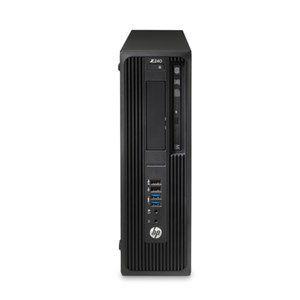

HP’s entry level workstations just got better. The HP Z240 with two amazingly versatile form factors, packs the performance, features, and reliability of a workstation into the price point of a desktop PC.
Features
Powered to manage your challenges
Powerful processors, graphics, memory, and two optional ultra-fast HP Z Turbo Drives[3] make the HP Z240 a true workstation-class solution. Handle your growing and complex workloads with performance for any stage in your work process.
The workstation that fits your workspace
Take back your workspace. At 57 percent smaller than the tower, the HP Z240 SFF conserves space and maintains workstation performance. And with HP’s no compromise reliability, your HP Z240 is designed to work today and well into the future.
Priced for your budget
HP’s most affordable workstation allows you to customize your experience while still balancing your IT budget. HP reliability, thorough testing, and ISV certification means your HP Z240 is designed as a long-term budget friendly solution.
| Processor |
| Chipset |
Intel® C236 |
|
| Additional storage |
SD media card reader (optional) |
| Memory |
| Memory slots |
4 UDIMM |
| Drives |
| External drive bays |
One shared 3.5" (shared with internal 3.5" bay)
One slim ODD |
| Internal drive bays |
One 3.5"
One 2.5"
One shared 3.5" (shared with external 3.5" bay) |
| Storage controller |
Integrated
SATA (4 ports 6 Gb/s) with RAID 0 (striped array) and RAID 1 (mirrored
array) supported on Windows operating system only. Requires identical
hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data
configuration) for PCIe SSDs. |
|
| Compatible displays |
HP Z27s 27-inch UHD Display
HP Z27q 27-inch IPS 5K Display
HP Z24s 24-inch UHD IPS Display
HP Z Display Z30i 30-inch IPS LED Backlit Monitor
HP Z Display Z27i 27-inch IPS LED Backlit Monitor
HP Z Display Z24i 24-inch IPS LED Backlit Monitor
HP Z Display Z23i 23-inch IPS LED Backlit Monitor
HP Z Display Z22i 21.5-inch IPS LED Backlit Monitor
HP DreamColor Z24x Professional Display
HP DreamColor Z27x Professional Display |
| Connectivity and Communications |
| Ports |
2 USB 3.0
2 USB 2.0 (1 charging)
1 headphone
1 microphone/headphone |
| Expansion slots |
1 PCIe Gen3 x16
2 PCIe Gen3 x1 (x1 connector)
1 PCIe Gen3 x4 (x16 connector) |
| Expansion slots note |
All slots are low profile |
| I/O Port location |
Front |
| Ports |
6 USB 3.0
3 DisplayPort 1.2
1 serial
2 PS/2
1 RJ-45
1 audio line-in
1 audio line-out |
| I/O Port location |
Back |
| Ports |
1 USB 3.0
2 USB 2.0 |
| I/O Port location |
Internal |
| Ports note |
1
USB 3.0 and 2 USB 2.0 ports available as 2 separate 2x10(3.0 x1, 2.0
x1) and 1x6(2.0 x1) header. Supports one HP Internal USB 2.0 Port Kit
and one USB 3.0 media card reader. |
| Battery and Power |
| Power |
240 W 92% efficient, wide-ranging, active PFC
200 W 85% efficient, wide-ranging, active PFC |
| Weights |
| Weight |
Starting at 5.7 kg |
| System Components |
| Form factor |
Small Form Factor |
| Security Management |
| Security management |
HP Solenoid Lock and Hood Sensor (optional)
HP Business PC Security Lock kit (optional)
HP UltraSlim Cable Lock Kit (optional) |
| Dimensions |
| Minimum dimensions (W x D x H) |
338 x 381 x 100 mm |
