WS60 6QH

• Windows 10 Pro
• 6th Gen. Intel® Coreâ„¢ i5/i7 processor
• DDR4-2133 Memory up to 32GB
• NVIDIA^® Quadro^®M600M Professional Graphics Card 2GB GDDR5
• 15.6“ FHD (1920 x 1080), Wide-view, Anti-Glare
• Pre-calibrated panel through True Color display technology
• Exclusive Cooler Boost 3 Technology: Higher efficiency dual cooling system.
• Shortcut Manager to simplify the long command into one key with a set of optimized shortcuts that reflect to your professional experience
• Supports up to 3 external displays

Overview

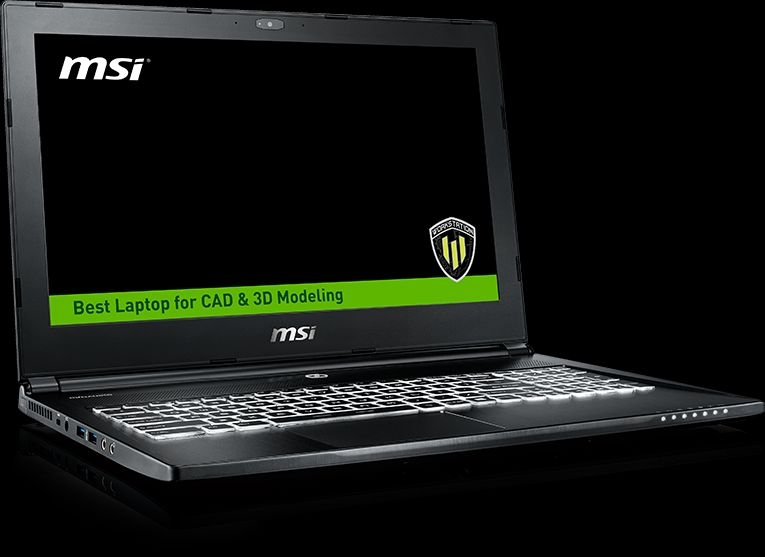

Workstation WS60 6QH

Create today, built tomorrow.

LATEST 6TH GENERATION INTEL CORE i7 PROCESSORS AND XEON PROCESSORS

The new 6th generation Intel processors consume less power but deliver much improved performance than previous generation processors. A 20% performance increase in average can be discovered on the new Intel Core i7 CPU.

MSI mobile workstations powered by the latest 6th generation Intel Core i7 CPU and the new Xeon E3-1505M processor display unmatched performance capabilities.

UNMATCHED PERFORMANCE

Powered by the NVIDIA Quadro M-series, provides an unmatched graphics power and performance to get the job done faster than ever.

MADE TO MULTI-TASK

MSI’s exclusive Matrix Display technology supports up to 3 external monitors to go from a portable notebook into the ultimate multi-tasking workstation. Output you work to a 4K display for the best viewing experience and stunning details.

CRAZY FAST NVMe PCI-E Gen3 X4 SSD

Get the most advanced storage technology before everyone else with the latest PCI-E Gen 3.0 x4 bandwidth utilizing NVMe technology on single M.2 SSD. Harness the full performance potential of the Gen 3.0 SSD through the optimization of the hardware and software outputting extreme read speeds up to 2200MB/s, 5x faster than SATA3 SSD's

ISV Certified Mobile Workstation

MSI workstations are ISV Certified. Officially recognized by major ISVs such as AutoDesk, Dassault Systems, PTC, Adobe, and more, this certification ensures your most critical applications will run reliably on the MSI Mobile Workstation, providing optimal performance and high quality user experience.

DDR4-2133 - New Memory Benchmark

Get the best possible performance out of your notebook with support of the advanced DDR4-2133 memory, achieving over 2.9GB/s in reading speed and 3.5GB/s in writing. With over 30% faster performance than previous generations DDR3-1600, DDR4-2133 is the new laptop standard to take your improved working efficiency to the next level.

THUNDERBOLTâ„¢ 3

The latest and fastest interface Thunderboltâ„¢ 3, supports up to 40Gbps data rate, supporting dual 4K displays with daisy chain capabilities. Support USB3.1 ultra speed devices, and up to 5V and 3A current output for charging. (Optional)

Connect 4K

60Hz display with single Thunderboltâ„¢ 3. Enjoy your game with double the sensation.

4k

True Color Technology

MSI True Color Technology guarantees that each panel in a MSI notebook comes with the finest precision in color. After examination and an extensive factory calibration process by the MSI True Color Technology, the panel quality will be more accurate, close to 100% sRGB. Hence, each color is delivered with the highest standard precision in detail, guaranteeing excellent color fidelity for many applications.

MSI has partnered with Portrait Displays, Inc. in developing a level of accuracy for display technology that sets a new standard. Trusting that the displays colors naturally represent the content is MSI’s goal.

TRUE COLOR PROFILE

Vision and sound are the most important two factors. Work or play, you can easily switch to the mode that best suits your eyes. The profile sharing feature permits you to share your True Color settings to other users anywhere.

Specifications

Operating System
Windows 10 Pro 64bit

Display
15.6� Full HD (1920X1080), Anti-glare, Wide-View Edition,IPS level panel

Processor
Intel® Coreâ„¢ i7-6700HQ Processor  2.60 GHz (6M Cache, up to 3.50 GHz)

Chipset
Intel HM170

Memory
8GB ( 1 x 8GB )DDR4-2133MHz

Graphics
NVIDIA® Quadro® M600M Graphics Card / GDDR5 2GB

Storage
128GB M.2 PCI-E Gen 3 x 4 Solid State Disk + 1000GB 7200rpm

Keyboard
Keyboard by Steelseries with single color backlit (white)

USB 3.1 port
1

USB 3.0 port
2

Card Reader
SD (XC/HC)

Audio

Sound by Dynaudio system
Support 7.1 channel S/PDIF output
ESS SABRE Hi-Fi audio DAC technology
Nahimic Audio Enhancer

Video Output
Mini DisplayPort x 1, HDMI x1,USB Type-C(support DisplayPort x1)

Mic-in/Headphone-out
1/1

Wireless LAN
Gigabit Ethernet LAN(10/100/1000 Mbps)
