- Intel® Core™ i7-6700 Processor (3.4 GHz, up to 4 GHz with Intel Turbo Boost, 8 MB cache, 4 cores)
- Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
- Intel® HD Graphics 530
- 23" diagonal IPS widescreen backlit 10-point capacitive touch LCD
- 8 GB DDR4-2133 SDRAM. 256 GB SATA SSD
Features
Place it here, there, and everywhere

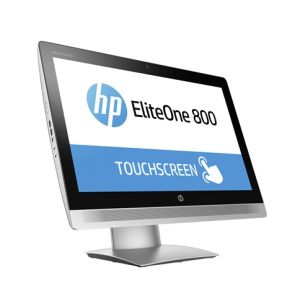

Deploy this redesigned, stylish All-in-One with a 23” diagonal FHD display anywhere you need a powerhouse PC. Its slim design and integrated cable management make an impression at reception, on an executive’s desk or mounted on a wall.
Deeply secure
Help secure your PC with comprehensive hardware and software tools like an optional fingerprint reader[3] and HP BIOSphere with Sure Start’s customizable BIOS-level passwords.[4]
Power-packed performance
Drive your most demanding workloads with an All-in-One powered by fast 6th Gen Intel® Core™ processors[5], plus AMD Radeon™ R9 360 discrete graphics[2] for your most challenging use cases.
Count on premier audiovisual clarity
Collaborate naturally with Cortana[6] on Windows 10 Pro,[1] optional 10-point capacitive touch,[2] Audio by Bang & Olufsen, HP Clear Sound Amp, HP Noise Reduction Software, and a 2MP HD webcam.[7]
Specifications
| Supported Operating Systems |
| Operating system |
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) |
| Operating system note |
This
system is preinstalled with Windows 7 Professional software and also
comes with a license and media for Windows 10 Pro software. You may only
use one version of the Windows software at a time. Switching between
versions will require you to uninstall one version and install the other
version. You must back up all data (files, photos, etc.) before
uninstalling and installing operating systems to avoid loss of your
data. |
| Processor |
| Chipset |
Intel® Q170 |
| Processor family |
Intel® Core™ i5 processor
Intel® Core™ i7 processor |
| Processor |
Intel® Core™ i7-6700 with Intel HD Graphics 530 (3.4 GHz, up to 4 GHz with Intel Turbo Boost, 8 MB cache, 4 cores) |
| Memory |
| Memory, standard |
8 GB DDR4-2133 SDRAM (1 x 8 GB) |
| Memory slots |
2 SODIMM |
| Drives |
| Hard drive description |
256 GB SATA SSD |
| Optical drive |
Slim Tray-load SuperMulti DVD writer |
| External drive bays |
One slim ODD (optional) |
| Internal drive bays |
Two 2.5" |
| Storage type |
SSD |
| Display Specifications |
| Display |
23" diagonal IPS widescreen backlit 10-point capacitive touch LCD (1920 x 1080) |
| Graphic Subsystem |
| Graphics |
Intel® HD Graphics 530 |
| Graphics |
Integrated |
| Multimedia |
| Audio |
Audio
by Bang and Olufsen utilizing HP Clear Sound Amp which supports the
integrated high-performance stereo 2.2W internal speakers, microphone
array, headphone jack, line-out jack and a microphone jack that is
retaskable to second headphone or line in. |
| Webcam |
2 MP full HD webcam (optional) |
| Input devices |
| Keyboard |
HP USB Business Slim Keyboard |
| Pointing device |
HP USB Mouse |
| Connectivity and Communications |
| Network interface |
Intel® i219M GbE |
| Ports |
2 audio line out
1 headphone
1 microphone
2 USB 3.0 (1 charging)
1 USB Type-C™ |
| Expansion slots |
1 M.2 2230
1 M.2 2280 |
| Expansion slots note |
M.2 2230 slot for WLAN
M.2 2280 slot for SSD |
| Ports |
1 fingerprint reader |
| I/O Port location |
Right side |
| Ports |
4 USB 3.0
1 DisplayPort 1.2
1 RJ-45
1 audio line out
1 serial (optional)
2 PS/2 (keyboard/mouse) optional |
| I/O Port location |
Back |
| Battery and Power |
| Power |
160 W, up to 90% efficient, active PFC |
| Weights |
| Weight |
Starting at 6.84 kg |
| System Components |
| Form factor |
All-in-one |
| Security Management |
| Security management |
Optional USB port disable at factory (user configurable via BIOS)
Power-on password (via BIOS)
RAID (available as a configurable option)
Removable media write/boot control
SATA port disablement (via BIOS)
Security lock slot
Serial, parallel, USB enable/disable (via BIOS)
Setup password (via BIOS)
HP BIOSphere with Sure Start
Support for Noble Locking Plate (third-party option)
HP Touchpoint Manager
Integrated fingerprint reader
DriveLock and Automatic DriveLock
Infineon TPM SLB9670 1.2/2.0 (Common Criteria EAL4+ certified)
Intrusion detection system |
| Security management footnote number |
[13] |
|
| Software footnote number |
[10,11,12] |
| Dimensions |
| Minimum dimensions (W x D x H) |
567.2 x 59 x 392.7 mm |
| Warranty |
| Warranty |
3-year
(3-3-3) limited warranty and service offering includes 3 years of
parts, labor and on-site repair. Terms and conditions vary by country.
Certain restrictions and exclusions apply. |
