CC-9011087-WW
Overview
High airflow.
Small size.
Huge potential.
If you're building a compact gaming rig with a MicroATX board, you've found something special. The SPEC-M2 features excellent cooling and great expansion options. Modern features like USB 3.0 and SSD compatibility, room for full sized graphics cards and PSUs, and an oversized side panel window mean your next rig can look expensive – even if it's not.

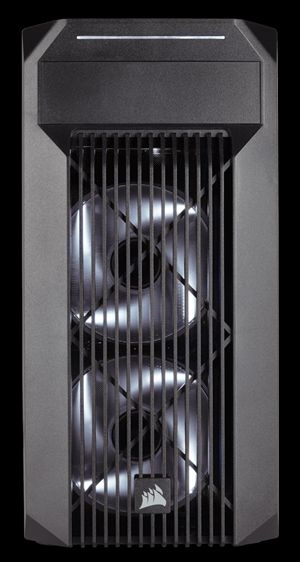

Compact high airflow design
With a full mesh front panel and direct airflow path to the GPU, the SPEC-M2 gets cool air directly to your hottest components with nothing in between.
Great cooling options
A front LED 120mm fan gets your cooling off the ground, and extra mounts provide more expandability. Take advantage of the 240mm front radiator support to upgrade your CPU or GPU to liquid cooling.
A modern design, inside and out

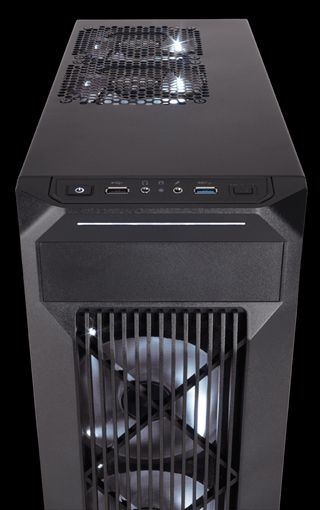

There's a USB 3.0 front panel port for the latest high-speed peripherals. Inside, there are built-in mounts for dual high-performance 2.5" SSD drives, and 3.5" and 5.25" drive installation is tool-free. Cable routing channels and cutouts simplify builds and improve aesthetics.

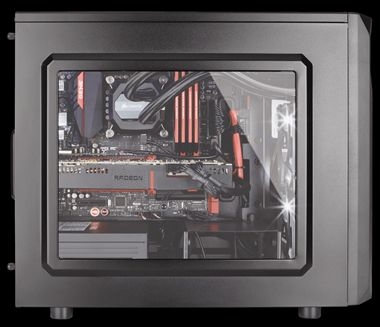

Flush-mounted side panel window
Showcase your powerful components. And when you want to get at them, the thumbscrews let you get quick access without looking for a screwdriver.
Contents and Specifications
Package contents
- Carbide Series Clear SPEC-M2 MicroATX Gaming Case
- Accessory kit
- Warranty and Support Information
Compatibility
- MicroATX, Mini-ITX motherboards
Technical specifications
- Dimensions (L x W x H): 448 x 198 x 378mm
- Maximum GPU Length: 383mm
- Maximum CPU Cooler Height: 150mm
- Maximum PSU Length: 160mm
- Expansion Slots: 4
- 5.25" Drive bays: 1
- 3.5" Hard Drive Bays: 2
- 2.5" Drive Bays: 2
- Fans included: (x1) 120mm fan
- Cooling Layout:
- Front: (x2) 120mm (1 x 120mm included)
- Top: (x2) 120mm
- Rear: (x1) 120mm
- Radiator Compatibility:
- 240mm: Front only
- 120mm: Front, or Rear
- Dust filters for front and bottom intakes
- Front I/O Panel includes: (x1) USB 3.0 port, (x1) USB 2.0 port, Headphone and Microphone jacks, Power on and Reset buttons
Specifications
Case Form Factor:
MicroATX
Dimensions:
448mm x 198mm x 378mm
Case Motherboard Support: Mini-ITX, MicroATX
Maximum GPU Length:
383mm
Maximum CPU Cooler Height:
150mm
Maximum PSU Length:
160mm
Case Drive Bays:
(x1) 5.25in
(x2) 3.5in
(x2) 2.5in
Case Power Supply: ATX (not included)
External Connections
(x1) USB 3.0
(x1) USB 2.0
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations
Front: (x2) 120mm
Top: (x2) 120mm
Rear: (x1) 120mm
Fans Included
Front: (x1) 120mm
Radiator Mount Locations
Front: 240mm
Rear: 120mm
Compatible Corsair Liquid Coolers
H55, H60, H75, H80i, H100i, H105
