All stock codes associated to this product
, REDESP6G
REDESP6G

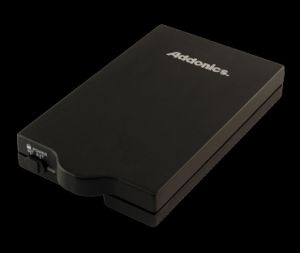

Ruby 6G external hard drive kit with eSATAp cable and
set of power tips. For 2.5" SATA I / II / III HDD/SSD. Black aluminum
casing. Shock and vibration resistant. Include 5V power adapter

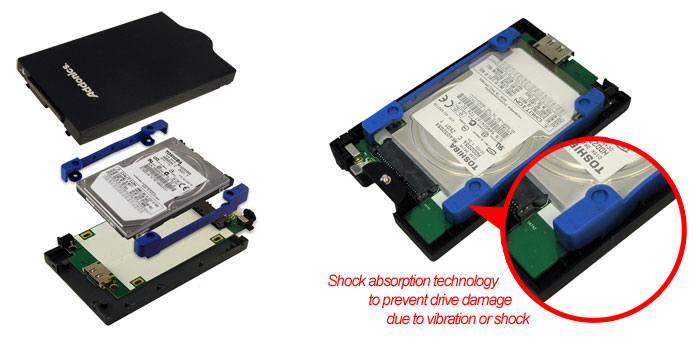

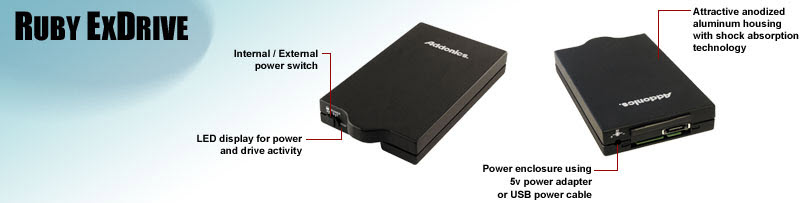

Anatomy of the Ruby drive enclosure
The Ruby ExDrive kit can connect to standard eSATA port, eSATA / USB hybrid port (EUHP) that appears on many new Notebook systems, USB 3.0 or 2.0 port using an optional USB 3.0 - eSATAp adapter. Depending on the implementation by the Notebook manufacturer, the eSATA performance can be as fast as 6 Giga bits per sec, almost 15 times the speed of USB 2.0.
Power and data via a single eSATA cable (power over eSATA)
By connecting to the eSATA / USB hybrid port (EUHP) with the Addonics eSATAp cable, the Ruby ExDrive can be directly powered from the Notebook with high speed eSATA connection - the combination of true portability and fastest drive performance similar to internal hard drive. The Ruby ExDrive can also be directly powered from USB port when using the Addonics eSATAp cable in conjunction with the USB3.0 - eSATAp adapter.
Product features

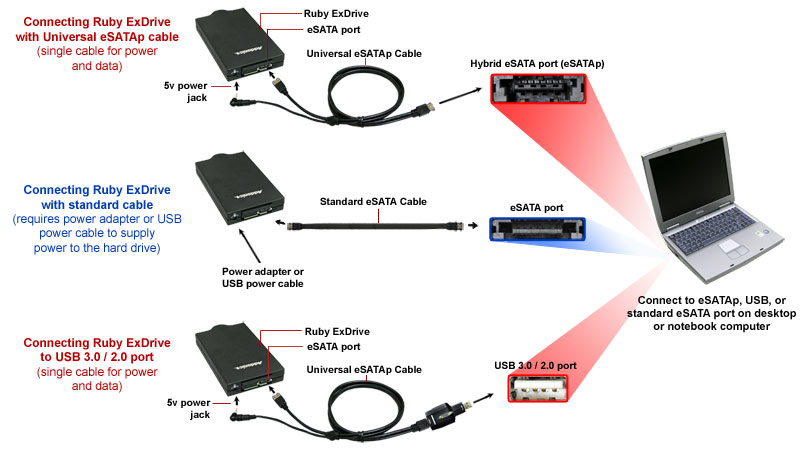

- Connection options and summary
|
connecting port
|
maximum throughput
|
power and data over one cable
|
bootable externally
|
optional adapter
|
| eSATA USB Hybrid port (EUHP) |
eSATA III - 6 Gbps
|
Yes, using the bundled Addonics universal eSATAp cable |
Yes |
No |
| eSATA port |
eSATA III - 6 Gbps |
No, require separate USB power cable or power adapter |
Yes |
No |
| USB 3.0 port |
5 Gbps |
Yes, using the bundled Addonics universal eSATAp cable |
Depending on OS and system BIOS support |
Yes, requires Addonics USB 3.0 - eSATA adapter |
| USB 2.0 port |
0.48 Gbps |
Yes, using the bundled Addonics universal eSATAp cable |
Depending on OS and system BIOS support |
Yes, requires Addonics USB 3.0 - eSATA adapter |
- Stylish and rugged black anodized aluminum
- Compact size - fits inside a pocket
- Light weight
- Shock proof - up to 3 feet damage protection for the hard drive
- Support maximum drive height of 9.5mm
- 6G enclosure for SATA III HDD/SSD*
- Support full SATA 3.0 speed of 6 Gbps when connecting to eSATA port supporting such speed
- Connect to following ports:
- BUS powered (powered directly with one data cable connection) from EUHP or USB port using Addonics Universal eSATAp cable (included in certain models)
- Use as a drive cartridge in the Ruby Drive Cartridge system.
- Hard drive connectors are isolated by a SATA direct bridge from wear and tear in removable drive application
- Use it like a VHS cassette in the Ruby Drive Cartridge System.
- Support large hard drive beyond 137G with single partition.
- LED for both power and drive access
- OS support in external hard drive mode
- eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, 8, Mac, Linux and Solaris
- USB 3.0 - Windows 2000, XP, Vista, Windows 7, 8
- USB 2.0 - Windows 98SE, Me, 2000, XP, Vista, Windows 7, 8, Mac, Linux and Solaris
* When using 6G hard drive or SSD, the standard
Ruby enclosure may encountered connectivity problem or degraded data
transfer with some drives in combination with certain computers. The 6G
drive enclosure or Ruby drive kit is recommended when installing 6G
HDD/SSD. In the Drive Cartridge application, the Ruby drive cradle (the
unit that mounts inside the drive bay) will also needs to be the 6G
version in order to have reliable connection and maximum data
throughput.
