All stock codes associated to this product
RAILA0357, RAIL-A03-57, QN99868SN, BAQNRAILA0357, BAQN-RAIL-A03-57, 4712511127393
Description
Rail Kit for 2U/3U/4U rackmount models.
Applied Model
TS-879U-RP, TS-1279U-RP, TS-EC879U-RP, TS-EC1279U-RP, TS-1679U-RP,
TS-EC1679U-RP, WB-1200U-RP, WB-1600U-RP, TS-EC880U-RP, TS-EC1280U-RP,
TS-EC1680U-RP, REXP-1220U-RP, REXP-1620U-RP, REXP-1220U-RP, TS-EC880U R2,
TS-EC1280U R2, TS-EC1680U R2, TVS-EC880U-SAS-RP, TVS-EC1280U-SAS-RP,
TVS-EC1580MU-SAS-RP, TVS-EC1680U-SAS-RP, TVS-EC880U-SAS-RP R2,
TVS-EC1280U-SAS-RP R2, TVS-EC1580MU-SAS-RP, TVS-EC1680U-SAS-RP R2,
TDS-16489U

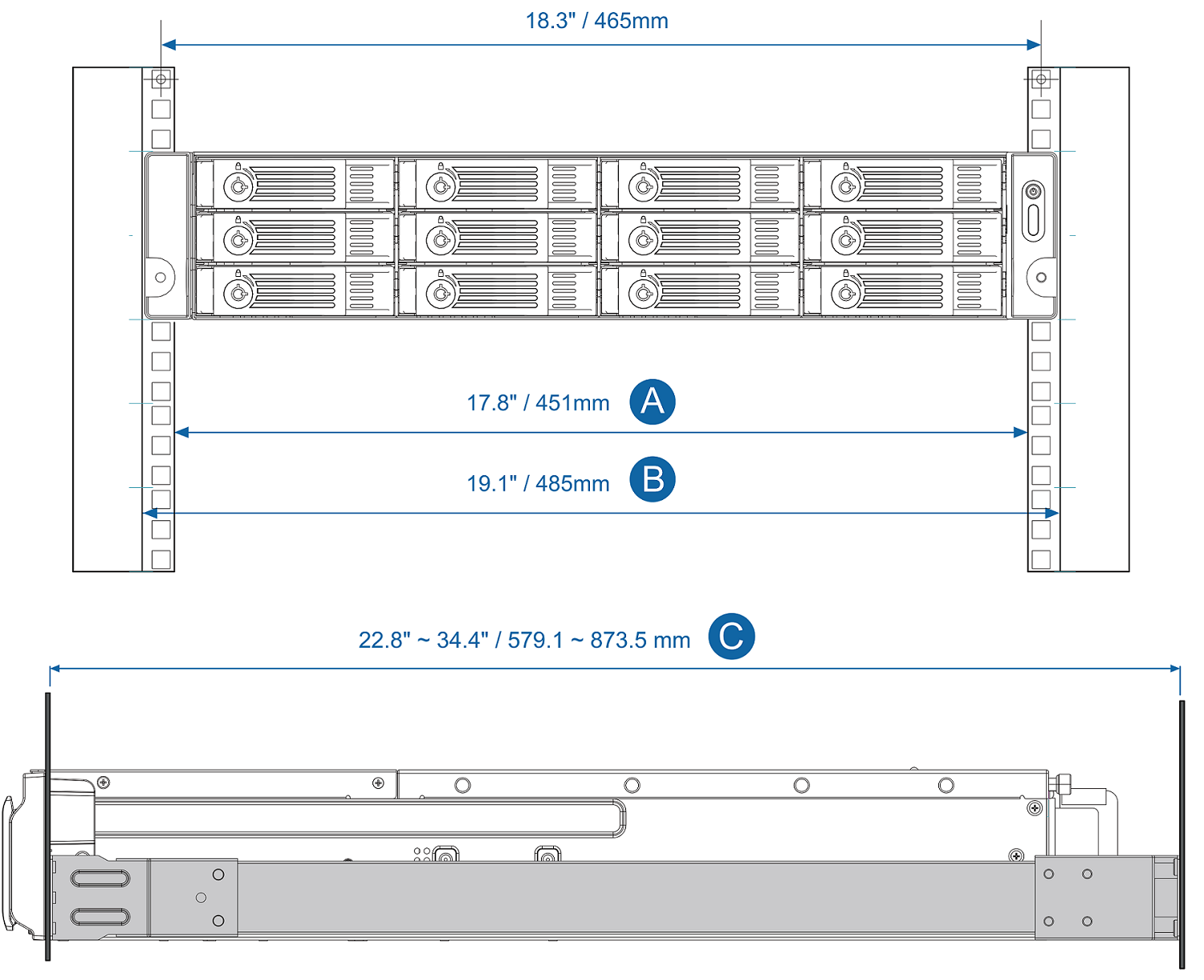

Please make sure the server racks conform to the following criteria:
1. Rack size
A. Mounting post
width: 17.8"/451mm
B. Panel width: 19.1"/485mm
C. Mounting post depth:
22.8" ~ 34.4"/579.1mm~873.5mm
D.The distance between two rack
posts is 18.3"/465mm (center-to-center measurement of the rack's square
holes).
Specifications
Dimension: 710 x 99
x 68 mm (28.4 x 3.96 x 2.72 inch)
Weight: 2.63kg
(5.80lb)
Max Load: 57
Kg
