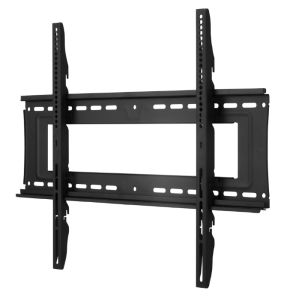

Atdec TH-40100-UF Telehook Wall Mount for Flat Panel Display

The TH-40100-UF is the ideal mounting solution for large displays and heavy touch screens weighing up to 150kg (330lbs) and up to 100" in size. Its low profile design supports the display just 39mm (1.5") from the wall while a range of pre and post installation adjustment features, including spacers for uneven surface mounting, help to simplify the installation process. Incorporating a lockable security bar and robust steel construction adds additional security in challenging public environments.

• General
• BrandTelehook
• ColourBlack

• Compatibility
• Maximum supported weight, per display (kg)150
• VESA mounting hole patternUniversal
• Universal Width (mm) From200
• Universal Width (mm) To800
• Universal Height (mm) From200
• Universal Height (mm) To600
• Wall mounting typeMasonry , Timber stud
• Minimum number of studs recommended2

• Range of movement
• Range of movementFixed/Flush
• Spring assisted height adjustability-
• Tilt adjustment0
• Pan adjustment0
• Height adjustableYes
• Landscape to portrait screen rotation-
• Ultra low profileYes
• Minimum distance from wall (mm)39
• Maximum arm reach (mm)39

• Installation
• Quick release mechanism-
• In-built spirit level-
• Portrait screen installation-
• Security featuresIncorporates a lockable security bar (requires a small padlock)
• Mounting hardware includedYes

• Other
• Warranty10 years
• MaterialSteel
• Other featuresLow profile design

• Packaging dimensions
• Length, single unit (cm)88
• Width, single unit (cm)28
• Height, single box (mm)5
• Weight, single unit (kg)5.6
• Single units per master pack4
• Length, master carton (cm)90
• Width, master carton (cm)29
• Height, master carton (cm)21
• Weight, master carton (kg)24.6
