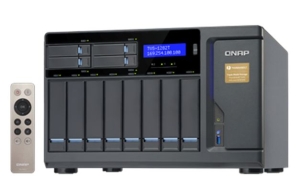

QNAP Systems TVS-1282-i5-16G-450W 12-Bay NAS System - Diskless
  • 2.5"/3.5" SSD/HDD(8), 2.5" SSD(4), Intel Core i5-6500(3.2GHz), 16GB-RAM, 512MB-DOM, M.2(2), GigLAN(4), HDMI(3), TWR

IMG 1 of 1
No Longer Available
Part Number:
410158
(?) Brand:
QNAP Systems
Manuf No:
TVS-1282-i5-16G-450W
TVS1282i516G450W
Shipping Weight:
14 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
TVS1282i516G450W, TVS-1282-i5-16G-450W, QN17575

Qnap Systems TVS-1282-i5-16G-450W 12-Bay NAS System - Diskless

Features

  • Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Transcodes 4K H.264 videos on-the-fly or offline*
  • Triple HDMI output for smooth 4K video playback
  • Scalable design with economical QNAP storage expansion enclosures
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282’s storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization

Overview

The TVS-1282 features advanced hardware by adopting 6th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-1282 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-1282 presents an ideal choice for a complete business-ready storage solution.

6th Generation Intel® processors, extraordinary performance

The TVS-1282 is powered by high-performance 6th Generation Intel® multi-core processors with options including Core™ i3, Core™ i5, and Core™ i7, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K @30Hz video playback, and serving large numbers of simultaneous connections.

Advanced hardware for greater efficiency

High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.

1. 4 x 2.5 SSD slots

Offers flexible configuration in tiered storage and enables cache acceleration.

2. Tool-less HDD tray and installation

2.5 SSD trays and 3.5 hard drive trays feature tool-less design for easy installation and replacement.

3. 2 x built-in M.2 SSD slots

2.5 SSD trays and 3.5 hard drive trays feature tool-less design for easy installation and replacement.

4. DDR4 2133 MHz memory

Supports four DDR4 memory modules for a maximum of 64GB RAM.

5. 6th Generation Intel Core Processor

Features the latest 14nm manufacturing technology with faster buses to support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely efficient data transmission.

6. 3 x PCIe Gen.3 expansion slots

PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon R7 or RX 480), and USB 3.1 expansion cards.

7. 4 x Gigabit Ethernet ports

Allows optimized network traffic distribution for diverse applications. The Network & Virtual Switch app makes network management much easier.

8. 3 x HDMI outputs

Three HDMI ports support duplicated and extended desktop options.

9. Compartmentalized smart cooling

Separately detects the CPU and hard drive temperatures to dynamically control fan speed and performs quieter fan operations.

10. 3.5mm audio jack

Connect speakers or headphones for direct audio output from the NAS.

11. 2 x built-in speakers

Supports direct audio output and provides verbal system warnings.

M.2 SATA 6Gb/s SSD & 2.5" SSD cache

The TVS-1282 provides 4 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-1282 combines M.2 SSD, 2.5 SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.

Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution

The advanced hardware design of TVS-1282 can facilitate optimized storage deployment based on different usage scenarios.

Tiered Storage

QNAPs Qtier Technology empowers the TVS-1282 with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-1282 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-1282 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-1282.

Application-based Partitioning

Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-1282 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Network Traffic Distribution

With four 1 Gigabit Ethernet ports, the TVS-1282 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-1282, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch.

450W power supply fuels GPU passthrough

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TVS-1282 offers an option with a 450 watt power supply that is capable of powering an AMD Radeon R7 Series or RX 480 graphics card for smooth GPU passthough to virtual machines.

Three HDMI outputs - switch between HD Station and Linux desktop

The TVS-1282 comes with three HDMI outputs for using three monitors in either duplicated or extended desktop configuration. Duplicating will display the same content on every display, and extended desktop mode allows users to display applications across the displays for improved multitasking convenience and productivity. When displaying content using HDMI, you can use the TVS-1282 as an amazing multimedia player by using HD Station to enjoy rich apps including Plex Home Theater, Google Chrome, Mozilla Firefox, and more. Alternatively, you can choose to output the Linux operating system desktop to use the TVS-1282 as a PC.

Seamless capacity expansion via SAS or USB interface

The TVS-1282 supports online capacity expansion by connecting multiple high-performance SAS-enabled QNAP RAID expansion enclosures or economical USB 3.0 expansion units to meet the needs of growing business data. The total storage capacity of the TVS-1282 can be gradually expanded and easily managed by the QTS Storage Manager, being useful for large data applications such as video surveillance, data archiving, and TV broadcast storage, and more.

The maximum number of drives available by connecting QNAP expansion enclosures:

QNAP NAS Model RAID Expansion Enclosure No. of RAID Expansion Enclosure Total HDD No. (NAS + Enclosure)
TVS-1282 REXP-1000 Pro 4 48
3 38
2 28
1 18
UX-800P** 2 24
1 16
UX-500P** 2 18
1 13

**To support UX-500P and UX-800P, QTS 4.2.0 (or later) firmware is required. Please create a separate static volume or storage pool on the UX expansion unit to expand the NAS storage space.

Use NAS to expand NAS capacity with Virtual JBOD

Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand storage of your QNAP NAS with multiple QNAP NAS units. You can mount iSCSI LUNs from a QNAP NAS to the TVS-1282 as local disks, and create virtual storage pools and volumes for operating NAS functionalities, such as creating and reverting snapshots, indexing multimedia files into the media library, and even further creating iSCSI LUNs. With VJBOD, you can centrally utilize the storage space from multiple QNAP NAS units* and manage it with the interface on the local NAS. VJBOD supports 10GbE/40GbE Ethernet connection interface and port trunking (link aggregation with multiple LAN ports) that increase the performance and reliability of your VJBOD storage.

QTS – simple and powerful

The intuitive QTS features a modern flat design to streamline loading times, and its intelligent desktop allows you to find desired functions quickly, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency.

QRM+: Centralized management solution for networked computing devices

QRM+ is QNAP's Centralized Management Solution, designed for IT teams, for networked computing devices. It provides a single-point solution to discover, map, monitor and manage all of the critical computing devices (including servers, PCs, and thin clients) in your network, and facilitates device discovery with the graphical topology diagram. QRM+ supports IPMI 2.0, provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports tracking every action using KVM recording and playback. Simply install QRMAgent on your Windows and Linux devices and you will see their system status on the QRM+ management interface. With centralized management using QRM+ on the NAS, IT infrastructure and device security is enhanced while troubleshooting and network resource performance analysis is greatly simplified.

QmailAgent: a mailroom center for your private cloud

QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents from the TVS-1282 when composing emails. Qmail also allows iOS and Android users to quickly check multiple email accounts with mobile devices, and to browse & send emails using the QmailAgent on their TVS-1282.

Storage for hosting virtual machines and containerized applications

Virtualization Station allows you to host virtual machines (VM) on the TVS-1282 and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VM. Virtualization Station allows the TVS-1282 and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed virtual switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. An AMD Radeon R7 Series or RX 480 graphics card can also be installed into the TVS-1282's PCIe slot for GPU passthrough to virtual machines, greatly boosting the computational and rendering power of virtualized applications.

The TVS-1282 also features Container Station, which integrates LXC and Docker lightweight virtualization technologies. You can operate multiple isolated Linux systems on the TVS-1282 as well as download apps from the built-in Docker Hub Registry.

Storage for comprehensive virtualization applications

As an iSCSI/IP-SAN storage solution, the TVS-1282 supports VMware and Citrix, and is compatible with Microsoft Hyper-V and Windows Server 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-1282 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications.

Comprehensive security

QNAPs full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-1282. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-1282 also provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more.

Well-rounded backup & disaster recovery solutions

The TVS-1282 offers flexible backup solutions for Windows and Mac users, Volume/LUN snapshots (block-based LUN* and file-based LUN), Folder snapshot, Snapshot Replica and Clone. It also supports Hybrid Backup Sync that consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.

Cross-device file synchronization

Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration. Any file uploaded to the TVS-1282 will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices.

Comprehensive surveillance solution providing 24/7 security

Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-1282. The TVS-1282 includes 8 free IP camera channels and you can expand up to 80 channels by purchasing additional licenses.

Install-on-demand apps to extend NAS functionality

The TVS-1282 has a built-in App Center that provides over 100 apps, including tools for backup/sync, business, content management, communications, downloading, entertainment, and much more. You can freely install apps as needed to expand your TVS-1282s functionality.

Additional SMB-ready features

The TVS-1282 supports various business applications as an all-in-one Turbo NAS with cost-efficiency.

FTP Server

The Turbo NAS supports FTP server to share large files, coming with user-defined settings including bandwidth limitations, number of connections, and write-only permission.

Web Server

The Turbo NAS supports a Web server which allows numerous websites built on the same server conveniently. Administrators can manage up to 32 websites on a single Turbo NAS with reduced IT cost.

RADIUS Server

The Turbo NAS supports RADIUS server which provides centralized authorization management for computers to connect and use a network service.

VPN Server

The Turbo NAS supports VPN server which provides an easy way for IT administrators to build up a secure private network and allows the staff to log on from outside the office and access business resources securely such as files and Internet connections.

Printer Server

The Turbo NAS supports Printer server to send remote printing request over the Internet (max. 3 USB printers), and supports IPP (Internet Printing Protocol), Samba, print job management and Bonjour printing for Mac OS X.

Surveillance Station

The Turbo NAS supports Surveillance Station to connect and manage multiple IP cameras remotely, including real-time monitoring, video recording, playback, and event notifications.

Front

1

SSD LEDs

7

Power button

2

LCD panel

8

Status LED

3

Enter button

9

USB One Touch Copy LED

4

Select button

10

USB 3.0 One Touch Copy port

5

M.2 LEDs

11

USB One Touch Copy button

6

Drive LEDs

Rear

1

PCIe 3.0 x8 (slot 1)

9

HDMI ports

2

PCIe 3.0 x4 (slot 2)

10

Reset button

3

PCIe 3.0 x4 (slot 3)

11

Kensington security slot

4

USB 3.0 ports

12

System fans

5

Console port

13

Power switch

6

6.3 mm microphone jacks

14

Power port

7

3.5 mm speaker jack

15

Speakers

8

Gigabit RJ45 Ethernet ports

Hardware Specifications

Ordering P/N

TVS-1282-i5-16G-450W

CPU

TVS-1282-i5-16G /TVS-1282-i5-16G-450W: Intel Core i5-6500 3.2 GHz quad-core processor

System memory

TVS-1282-i5-16G / TVS-1282-i5-16G-450W: 16 GB DDR4 RAM (8 GB x 2)

Flash Memory

512MB DOM

M.2 Slot

2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD

Note:

1. The M.2 SSD is not included as standard.

2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAPor a third-party provider) on the M.2 SSD.

Hard Drive Tray

4 x 2.5 SSD

8 x 2.5/3.5 hard drive or SSD

Drive Interface

SATA 6Gbps/3Gbps; Hot-swappable

USB

1 x USB 3.0 port (Front)

4 x USB 3.0 port (Rear)

LAN Port

4 x GbE port (10GbE and 40GbE are supported with the purchase and installation of compatible network adapters)

Note:

1. For a list of compatible network adapters, please visit the Compatibility List.

2. For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual.

HDMI Output

3

Audio Input

Audio In: 2 x 6.3mm MIC In

Audio Output

2 x built-in speaker, 1 x 3.5mm Line-out jack

Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.

LED Indicators

System status, 2.5 SSD, M.2 SSD, 3.5 HDD

Buttons

System: Power button, Reset button, USB one-touch-backup button

System Warning

Buzzer

Form Factor

Tower

Dimensions

234.6 (H) x 369.9 (W) x 319.8 (D) mm

9.23 (H) x 14.56 (W) x 12.59 (D) inch

Weight

Net (NAS only): 11.55kg/ 25.46 lb

Gross (with packing and accessories): 13.65 kg/ 30.09 lb

Sound Level (dB)*

Sound pressure (LpAm) (bystander position): 21.6 dB

(with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)

Temperature

0-40C

Relative Humidity

5~95% non-condensing, wet bulb: 27C

Power Supply

TVS-1282-i5-16G-450W / TVS-1282-i7-32G-450W / TVS-1282-i7-64G-450W: Input: 100-240V~, 8-4A, 60-50Hz; Output: 450W

Note: If you plan to use a graphics card with your NAS, please check its power requirements beforehand. When using advanced graphics cards, the TVS-1282-i5-16G-450W and TVS-1282-i7-32G-450W are recommended as they have a suitable power supply for these graphics cards.

PCIe Slot

3 (1* PCIe Gen3 x8; 2* PCIe Gen3 x4)

Fan

System: 3 x 8 cm cooling fan

CPU: 1 x 9 cm fan

Software Specifications

Operating System

QTS 4.2 (embedded Linux)

Supported Client OS

1. Windows 7, Windows 8, Windows 10, Windows Server 2003/2008 R2/2012/2012R2

2. Apple Mac OS X

3. Linux & UNIX

Supported Browsers

1. Microsoft Internet Explorer 10+

2. Google Chrome

3. Apple Safari 7+

4. Mozilla Firefox

Multilingual Support

1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

File System

1. Internal Hard Drive: EXT4

2. External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

1. TCP/IP (IPv4 & IPv6: Dual Stack)1

2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)

3. Service binding based on network interfaces

4. Squid Proxy server

5. Proxy client

6. DHCP client, DHCP server

7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

8. UPnP & Bonjour Discovery

9. USB Wi-Fi Adapter Support**

** 802.11ac support may vary by model.

Network & Virtual Switch

1. TCP/IP (IPv4 & IPv6: Dual Stack)1

2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)

3. DHCP client, DHCP server

4. USB Wi-Fi Adapter Support**

5. Virtual Switch

Security

1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

2. CIFS host access control for shared folders

3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption2

4. AES 256-bit external drive encryption2

5. Importable SSL certificates

6. Instant alerts via email, SMS, beep, push service, and LCD panel3

7. 2-step verification

Storage Management

1. Storage Space Utilization monitoring

2. QNAP flexible Volume/LUN with thin provisioning and space reclaim3

3. Disk volume types: RAID 0,1, 5, 6, 10, + hot spare, JBOD single

4. Supports storage pools3

5. Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD drives are required)3

6. Supports snapshots (4GB System RAM required)3

Supports Volume/LUN snapshot

Snapshot manager

Snapshot clone

Snapshot vault

Snapshot replica

Snapshot agent for Microsoft Windows and VMware vSphere

7. Online volume expansion

8. Online storage pool expansion

9. Online RAID capacity expansion and online RAID level migration

10. SMART data migration

11. Storage expansion via QNAP TX-500P/UX-800P expansion units3

12. JBOD enclosure roaming

13. SSD read-only/read-write cache

14. Bad block scan and hard drive S.M.A.R.T.

15. Bad block recovery & RAID recovery

16. Bitmap support

Power Management

1. Wake on LAN

2. Internal hard drive standby mode

3. Scheduled power on/off

4. Automatic power on after power recovery

5. USB and network UPS support with SNMP management

6. System sleep mode (S3)3

Access Right Management

1. Batch users creation

2. Import/Export users

3. User quota management

4. Local user access control for CIFS, AFP, FTP, and WebDAV

5. Application access control for Photo Station, Music Station, Video Station, and File Station

6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station

Domain Authentication Integration

1. Microsoft Active Directory (AD) & Domain Controller support

2. LDAP server, LDAP client

3. Domain users login via CIFS/SMB, AFP, FTP, and File Station

myQNAPcloud Service

1. Private cloud storage and sharing

2. Free host name registration (DDNS)

3. Optional myQNAPcloud SSL certificates (DDNS)

4. Auto router configuration (via UPnP)

5. Web-based file manager with HTTPS 2048-bit encryption

6. CloudLink for remote access without any complicated router setup

7. myQNAPcloud connect for easy VPN connection (Windows VPN utility)

Qsync

1. Sync files across multiple devices with SSL secure connection

2. Selective synchronization for only syncing specific folders

3. Use team folders as a file center for greater team collaboration (maximum sync tasks: x86:32, ARM:5)

4. Shares files by links via e-mail

5. Policy settings for conflicting files and file type filter support

6. Version control: up to 64 versions.

7. Unified privilege management

8. Unified configuration management

9. Supports central configuration mode

10. Supports remote erase/restore

11. Supports shared folders sync

12. Supports Windows & Mac OS

Web Administration

1. Multi-window, multi-tasking based system management

2. Smart toolbar and dashboard for neat system status display

3. Dynamic DNS (DDNS)

4. SNMP (v2 & v3)

5. Resource monitor

6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station

7. Automatic Cleanup

8. File Type Filter

9. Comprehensive logs (events & connection)

10. Syslog client/server

11. System settings backup and restore

12. Mobile app: Qmanager for remote system monitoring & management

File Server

1. File sharing across Windows, Mac, and Linux/UNIX

2. Microsoft networking

3. Windows ACL

4. Advanced folder permissions for CIFS/SMB, AFP, FTP

5. Shared folder aggregation (CIFS/SMB)

Powerful All-in-one server

FTP Server

1. FTP over SSL/TLS (Explicit)

2. FXP support

File Station

1. Supports mounting cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Amazon Drive, Yandex Disk and Box).

2. Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (SMB/CIFS)

3. Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)

4. Supports ISO Mounting (Up to 256 ISO Files)

5. Supports sharing download links and upload links

6. Drag-n-drop Files via Chrome and Firefox Browsers

7. Photo, music, and video preview and playback with hardware-accelerated transcoding3

8. File Compression (ZIP or 7z)

9. Creation of and sending download links for sharing public files with expiration date and password protection

10. Supports displaying subtitles (*.SRT, UTF-8 format)

Video seeking support for video playback during on-the-fly transcoding3

Supports slideshow playback in media viewer

11. Mobile App: Qfile for file browsing and management

Transcode Management

1. Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution

2. Automatic video transcoding for watched folders

3. Hardware accelerated transcoding support3

4. Embed subtitles into videos for background transcoding

Backup Station

1. Remote replication server (over rsync)

2. Real-time remote replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB server

3. Works as both RTRR server & client with bandwidth control

4. Real-time & scheduled backup

5. Backup versioning for RTRR

6. Snapshot support for RTRR/Rsync

7. Encryption, compression, file filter, and transfer rate limitation

8. Desktop backup with QNAP NetBak Replicator for Windows

9. Apple Time Machine backup support

10. Data backup to multiple external storage devices

11. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.

Cloud Drive Sync

1. Multiple cloud account management like Google Drive, Dropbox, OneDrive, and hubiC

2. Supports multiple cloud accounts

3. Manual, scheduled, periodic and continuous sync

4. Flexible file filtering using type, date, and size

5. SSL transfer encryption

6. Dashboard and job statistics

7. Configurable network error recovery options

8. Extensive job activity logging for tracing history of status and statistics

9. Concurrent job execution and multi-threaded data transfer

10. Per-account bandwidth throttling

Cloud Backup Station

1. S3 Plus (including Amazon S3)

2. Amazon Glacier

3. Google Cloud Storage

4. WebDAV-based cloud storage

5. Microsoft Azure

6. OpenStack Swift

Print Server

1. Max number of printers: 3

2. Supports Internet Printing Protocol

3. Print job display and management

4. IP-based and domain name-based privilege control

Photo Station

1. Show photos by thumbnails, list, timeline, or folder view

2. Supports virtual/smart albums

3. Validity control for sharing albums

4. Tag photos with text, colors, and ratings

5. Slideshows with background music and different transition effects

6. Geotag photos and display them on Google maps

7. Supports uploading photos/videos to Picasa, Flickr, Weibo, YouTube

8. Supports face detection (with the Photo Station Extension)

9. Supports PDF to image conversion (with the Photo Station Extension)

10. Supports Facebook friends login

11. Backup/Restore album configuration

Music Station

1. Play or share music via web browser

2. Supports streaming music to multiple devices.

3. Supports changing album covers via Google search or by uploading photos.

4. Internet radio (MP3)

5. Up to 8 music alarms

6. Mobile app: Qmusic for music streaming and management

iTunes Server

1. Audio and video sharing for Windows & Mac iTunes

Video Station

1. Show photos by thumbnails, list, timeline, or folder view

2. Supports virtual/smart collections

3. Tag videos with text, color, and ratings

4. Share video links to social websites or through email

5. Display movie information and posters from Internet sources or user-uploaded files

6. Supports displaying subtitles (*.SRT,*.ASS, *.SSA)

7. Supports online searching and downloading of subtitles as well as importing subtitle files

8. Supports adjusting the display style of subtitles

9. Supports Facebook friends login

10. Supports multi-zone video display

11. Video seeking support for video playback during on-the-fly transcoding3

12. Mobile app: Qvideo for online video browsing and management

AirPlay & Chromecast

1. Streams videos, photos and music from NAS to Apple TV or Chromecast via File Station, Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic, Qphoto or Qvideo).

Note: The Media Streaming add-on app must be installed from the QTS App Center.

Download Station

1. PC-less BT, FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl download (up to 500 Tasks)

2. BT download with search, Magnet Link and PT support

3. Scheduled download and bandwidth control

4. RSS subscription and download (broadcatching)

5. Proxy support for BT download

6. Mobile app: Qget for downloads browsing and management

Notes Station

1. Direct and quick backup from Evernote with re-editing availability

2. Supports Google Calendar

3. Import/Export PDF and .epub file

4. RSS live feed and auto update

5. Online quick preview of multimedia attachments

6. Notes encrypt/decrypt

7. Smart snapshot for version control

8. Full site backup for admin user

HD (HybridDesk) Station 3.13

1. Watch various online content such as Flickr, Picasa, Shoutcast, etc.

2. Web browsers (Chrome, Firefox)

3. Supports international keyboards, input and mouse

4. Supports user login permissions

5. A variety of applications are available including Skype, Plex Home Theater, and more

Note:

The playback and quality of some video les may be affected by the systems CPU and GPU decoding abilities.

Linux Station

1. Support install the Ubuntu OS via Linux Station. Use your NAS as an Ubuntu PC using the NAS HDMI output.

2. Download and use a variety of applications from the Ubuntu Software Center.

3. Supports remote desktop to monitor and access Ubuntu remotely.

4. An open source software platform for developers.

Note: The NAS requires at least 4GB RAM and Container Station must be installed.

Virtualization Station3

1. Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android

2. Supports VM import and export

3. Supports VM cloning & snapshots

4. Supports VM backup and restore

5. VM console can be displayed via HDMI output - QVM

6. HTML5-based shared remote console

7. Supports three different networking modes: Isolated, External-only and Bridged

8. Supports GPU pass-through via the discrete card

Container Station

1. Supports LXC and Docker

2. Download applications from the built-in Docker Hub Registry

3. Supports one-click installation, container export/import & console mode

4. Supports two network modes (NAT and host)

5. Supports auto-start containers

6. Supports downloading Docker certificates

7. Supports adding private registries

8. Added an application repository for users to switch to any repository on GitHub.com.

Signage Station

1. Supports dynamic content including videos, images, music, and text

2. Supports multi-user collaboration

3. Supports sharing by email and social network

4. Supports design software: iArtist Lite

5. Supports playback on Chrome browser

Qsirch

1. Supports full-text search

2. Supports near real-time search

3. Bar chart to show data distribution

4. Supports previews for photos, music, videos, Gmail, PDF .etc

5. Show search results using thumbnails or a list

6. Supports search Chrome extension

iSCSI (IP SAN)

1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)

2. Supports LUN mapping & masking

3. Online LUN capacity expansion

4. Support for SPC-3 persistent reservation

5. Supports MPIO & MC/S

6. iSCSI LUN backup, one-time snapshot, and restoration

7. iSCSI connection and management by QNAP Windows Qfinder

8. Virtual disk drive (via iSCSI initiator)

9. Stack chaining master

10. Max No. of virtual disk drives: 8

Surveillance Station

1. Supports over 3,000 IP cameras

2. Includes 8 free camera licenses, up to 80 camera channels by purchasing additional licenses3

3. Instant playback to check recent events

4. Visual aid by e-map

5. Playback and speed control using the shuttle bar

6. Video preview on playback timeline

7. Intelligent video analytics (IVA) for advanced video searching

8. Surveillance client for Mac

9. Mobile surveillance app: Vmobile (iOS and Android)

10. Mobile recording app: Vcam (iOS and Android)

VPN Server

1. Secure remote access: PPTPL2TP/IPsec & OpenVPN VPN services

2. Max number of clients: 45

DLNA Server

1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One

2. Support CUE indexing file for APE, FLAC audio format.

3. Video and Audio On-the-y Transcoding3

Qcenter (NAS CMS)

1. Multiple NAS monitoring

2. Utilization history reports

3. Unified configuration management

4. Visual display reports

5. Monitor NAS behind NAT routers with Qcenter Assistant

6. Virtual appliances supported with Microsoft Hyper-V and VMware ESXi

OceanKTV

1. Use the NAS as a karaoke machine.

2. Display songs by artists, languages, and favorites.

3. Enhance the experience with effects such as tuning echo, key, or applause

4. Control the playlist with a mobile app.

5. Supports keyboard and remote control (RM-RF001/ RM-IR002).

Note: Microphone not included.

Qfinder Pro with Storage Plug & Connect

1. Creating and mapping shared folders by QNAP Windows Qfinder Pro

2. Creation of and connection to iSCSI target/LUN

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 3 | TM: 7 | LM: 14 | TY: 132 | T: 617

About | Contact Us | Service & Support | Feedback | Policies | Secure login | Free signup! | FAQ | SiteMap
We accept the following with No surcharge on VISA, Mastercard and Paypal!
© Techbuy Pty Ltd 2000 - 2024 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
