All stock codes associated to this product
IWMS0401, IW-MS04-01, 2861549
Overview
- SATA Backplane (6Gb/s supported)
- Unique server design ideal for small office
- Flex ATX power supply supported
- Slim ODD supported
- Front access USB 3.0 x 2 Ports
Features

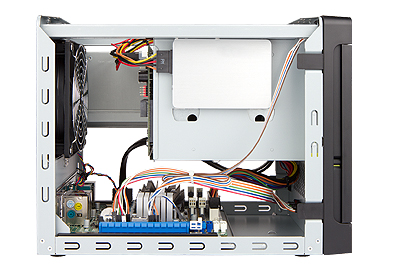

Inside View
2.5” HDD for OS
M/B tray for easy maintenance
Slim ODD x 1 (Optional 2.5" HDD bracket)
Panel Lock for security
Supports standard Flex ATX PSU
Supports 120 x 25 mm rear PWM fan for system cooling
Supports kensington slot and padlock loop
Specifications
M/B Form
Factor |
Mini ITX (M/B Cooler
Max. 65 mm ) |
Dimensions (D x W x
H)w/o Front Panel |
275 x 210 x 230
mm |
|
(10.8" x 8.3" x
9.1") |
Drive
Bay |
External: Slim ODD x 1,
Hot-Swap 3.5" x 4 or 2.5" x 4 |
|
Internal: 2.5" x 2 (One
for Option) |
Power
Supply |
Supports Form factor:
Flex ATX |
Front Control
Panel |
Power Switch, System
Reset, USB 3.0 x 2 |
Backplane |
SATA x 4 (6Gb/s
Supported) |
Chassis
Security |
Intrusion Switch,
Padlock Loop, Kensington Slot |
Cooling
Fan |
Supports 120 mm rear
PWM fan x 1 |
Expansion
Slot |
Low profile Slot x
1 |
Material |
Material:
SECC |
|
Thickness: 0.8
mm |
Packing Dimensions
(D x W x H) |
282 x 262 x 370
mm |
Shipping
Information |
Net Weight: 5.31
kg |
|
Gross Weight: 6.33
kg |
|
Cubic Feet:
0.96 |
|
Container
Info |
|
Single Packing:
20': 840pcs, 40': 1722pcs, 40HQ:1932pcs |
|
Single
Packing With Pallet: 20': 600pcs, 40': 1320pcs,
40HQ:1584pcs |
