All stock codes associated to this product
CUP5510D1AU
Overview
Small and stunning power.

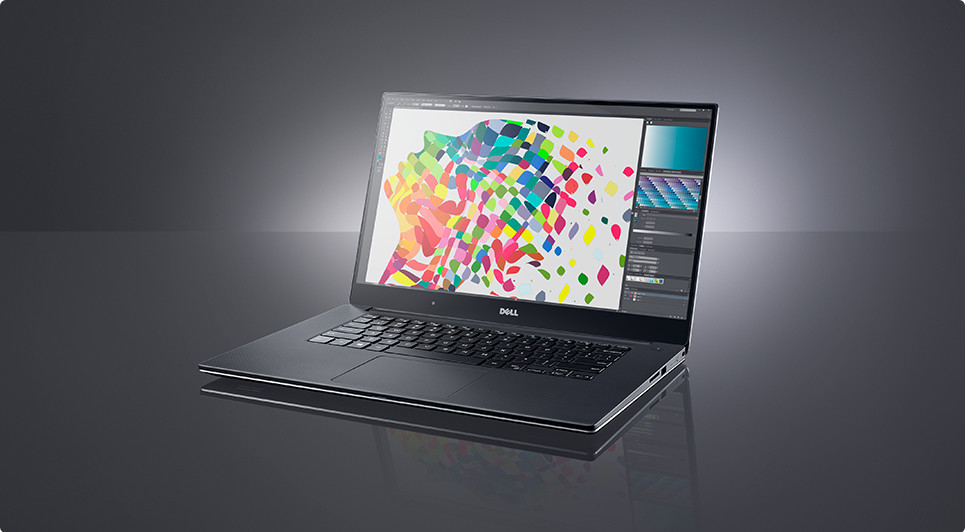

Thinnest, lightest, smallest 15" mobile Workstation with
big performance. Featuring Intel® processors and a PremierColor 4K InfinityEdge
display.
Features & Design
Available with Windows 10 Home for a smooth, versatile PC
experience.
See the big picture, better than
ever
The new PremierColor InfinityEdge display offers a
completely new level of eye-popping detail with 4K Ultra HD resolution and over
8 million pixels three million more than a Retina display. The PremierColor
panel guarantees you the unprecedented color fidelity of a 100% AdobeRGB minimum
gamut display
Elegant, innovative and
efficient
Feels good, looks even better
The
World's thinnest, and lightest mobile Workstation with InfinityEdge display
offers virtually borderless viewing cleverly fits a 15-inch display into the
size of some 14-inch laptops. And the new industrial design with carbon fiber
palm rest delivers rigidity, durability and cool-to-the-touch
operations.
Easy office integration
Multitasking is a breeze with single cable docking, and
large file transfers are quick and easy with Thunderbolt 3
connectivity.
Outstanding professional
performance
Accelerated workflows:New 6th Gen Intel
Core i5 and i7 processors and the first-ever mobile Xeon processors provide the
power to extract maximum performance from the demanding professional software
you rely on to do your job

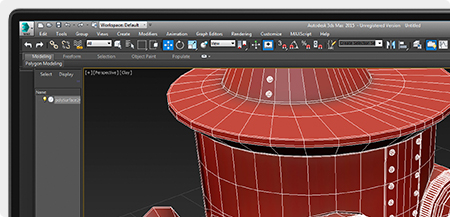

Professional graphics:From rendering to
complex modeling, you'll notice an incredible performance boost thanks to NVIDIA
Quadro M1000M graphics with 2GB memory.
Big storage for big jobs:Easily store,
transfer and access large and complex 3D, multimedia and video project files
with the speed and reliability of up to 2TB of storage and available Thunderbolt
Your work can count on it
Independent Software Vendor (ISV)
certification:Precision Workstations are tested to ensure the
high-performance applications you rely on every day run smoothly. Dell
ISV-certifications cover the most popular independent software
applications
Specificatiions
|
Processor |
Intel Core i7-6820HQ Processor(Quad Core 2.70GHz, 3.60GHz
Turbo, 8MB 45W, w/Intel HD Graphics 530) |
|
Operating System |
Windows 7 Professional 64-bit (English), No
Media |
|
Windows 10 Pro (64bit) English |
|
Windows 7 Professional English 64bit (Includes Windows 10
Pro License) |
|
Memory |
16GB (2x8G) 2133MHz DDR4 Memory Non
ECC |
|
Chipset |
Mobile Intel CM236 |
|
Video Card |
NVIDIA Quadro M1000M with 2GB GDDR5 dedicated
memory |
|
Intel Pro Graphics 530 &
P530 |
|
Display |
15.6" UltraSharp FHD IPS (1920x1080) Wide View Anti-Glare
LED-backlit with Premium Panel Guarantee (72% color
gamut) |
|
Hard Drive |
Up
to 1000GB2 SATA hard drive (5400RPM) |
|
Up
to 1000GB2 Solid State Drive SATA hard
drive |
|
Up
to 500GB2 SATA hard drive (7200RPM) |
|
Connectivity |
Wired: Type C to Ethernet adapter
included |
|
Wireless LAN: Intel 8260 Dual-Band 2x2 802.11 ac (Miracast)
Bluetooth 4.0, NFC |
|
Dell DW1830 3x3 802.11ac + Bluetooth 4.0,
NFC |
|
Dell DW1820A 2x2 801.11ac + Bluetooth 4.1,
NFC |
|
Security |
Intel Platform Trust Technology |
|
Trusted Platform Module (TPM)
1.2 |
|
Chassis lock slot support |
|
Support for optional Computrace8 |
|
Multimedia |
Dual integrated high quality speakers and dual integrated
noise cancelling digital array microphones
standard |
|
MaxxAudio Pro by Waves |
|
Integrated light sensitive HD video
webcam |
|
|
|
Power |
130
Watt AC adapter (4.5mm barrel) |
|
|
|
Dimensions |
Height: 11.48mm (0.45) x Width: 357.23mm (14.06) x Depth:
235.47mm (9.27) |
|
Weight: 1.78kg (3.93lb) |
|
|
|

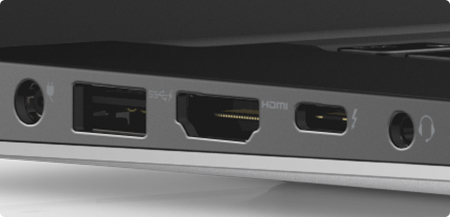

Ports |
1
Thunderbolt 3 |
|
2
USB 3.0 with PowerShare |
|
1
HDMI |
|
1
Headphone and microphone combo jack |
|
|
|
Slots |
SD
Card Reader (SD, SDHC, SDXC, supporting up to
64GB) |
