ATEN CL1000N 19" PS/2 VGA LCD Console
  • 19", 1280x1024, 5ms, 1000:1, 250cd/m2, SPHD-15(Female, Yellow)(1), USB, PS2

IMG 1 of 1
Our Price:
$1,696.30
or quickly purchase this product
Backorder
Part Number:
412673
(?) Brand:
ATEN
Manuf No:
CL1000N
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CL1000N, KVACL1000NA, KVA-CL-1000NA, 4710423779976, 4719264642463

Overview

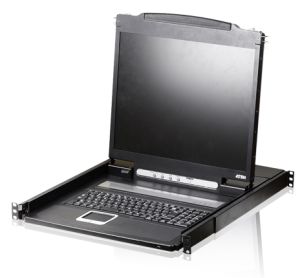

The CL1000N is a LCD KVM console that features an integrated 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U rackmountable housing. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

ROHS Weee

Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions.
  • Integrated KVM console with a 19" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack.
  • LCD module rotates up to 115° for a more comfortable viewing angle.
  • Improved design – optional single person installation kit.
  • Compatible with most KVM switches.
  • Internal power supply.
  • High video resolution: Up to 1280 x 1024 @75Hz , Supports DDC, DDC2, DDC2B , DDC emulation of the LCD monitor – Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Keyboard language support: English (US); English (UK);French; German; German (Swiss); Greek; Italian; Japanese;Hungarian; Korean; Spanish; Swedish; Traditional Chinese;Russian

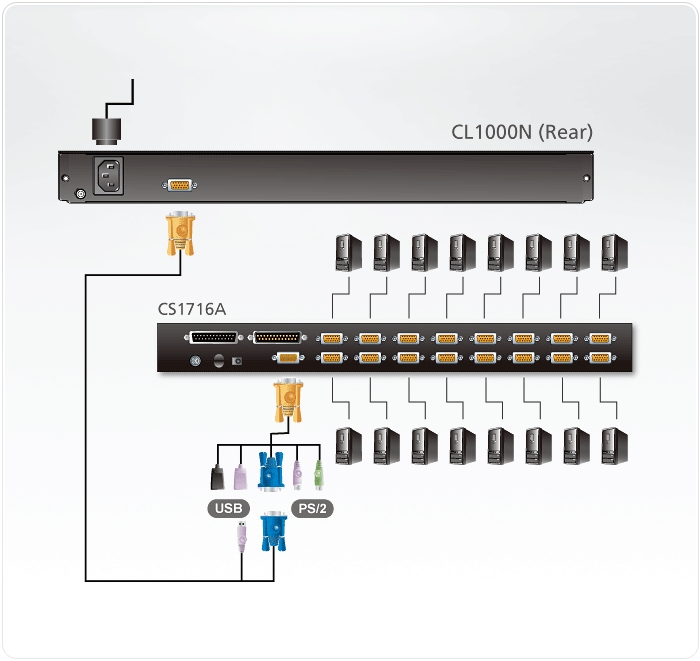

Diagram

Specifications

LCD Console

Panel Spec

LCD Module

19" TFT-LCD

Pixel Pitch

0.294 mm x 0.294 mm

Support Color

16.7M colors

Contrast Ratio

1000:01:00

Luminance

250 cd/m

Response time

5 ms

Viewing Angle

170 (H), 160 (V)

Connectors

Console Ports

1 x SPHD-15 Female (Yellow)

Power

1 x 3-prong AC Socket

Switches

LCD Adjustment

4 x Pushbuttons

LCD Power

1 x Pushbuttons

LEDs

CPU

1 (Green)

Num Lock

1 (Green)

Caps Lock

1 (Green)

Scroll Lock

1 (Green)

Emulation

Keyboard / Mouse

PS/2, USB (with 2L-52xxUP USB KVM cable)

Video

1280 x 1024 @ 75 Hz ; DDC2B

Maximum Input Power Rating

100-240 VAC; 50/60 Hz; 1A

Power Consumption

120 V/23 W; 230 V/24 W

Environmental

Operating Temperature

0 - 50C

Storage Temperature

-20 - 60C

Humidity

0 - 80% RH, Non-condensing

Physical Properties

Housing

Metal + Plastic

Weight

11.06 kg ( 24.36 lb )

Dimensions (L x W x H)

48.30 x 58.52 x 4.40 cm

(19.02 x 23.04 x 1.73 in.)

Package Contents

1 x CL1000N with Standard Rack Mount Kit

1 x Custom KVM Cable Set

1 x Power Cord

1 x User Instructions

Compatibility

2L-520UP

2L-5206UP

2L-5203UP

2L-5202UP

2L-5203P

2L-5202P

2L-5201P
