Overview
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches
with its native DVI compatibility. Building on ATEN’s renowned, space-saving
approach to KVM switches – which integrates an LCD panel, full keyboard, and
touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD
KVM switch which features the ability to control up to 64 computers by cascading
8 additional CS1768 8-port KVM switches
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p
video – greater clarity than typical analog interfaces – the CL6708MW
incorporates the YUV video format for greater compatibility with high-definition
signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital
Content Protection (HDCP) compatible, making it well-suited for use with
content-protected media in corporate, educational, and commercial settings
Features
- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- Single rail, sliding housing with top and bottom clearance for smooth
operation in a 1U rack
- Controls eight Single Link DVI computers
- Supports an external console with DVI video port
- Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
- KVM port extendable via one-level cascade (up to 8 additional CS1768
8-port KVM switches)
- Computer selection via front panel pushbuttons, hotkeys, and multilingual
on-screen display (OSD)
- Broadcast mode – allows you to send commands from the console to all
computers to perform operations simultaneously
- Firmware upgradable
- Supports YUV video format for greater compatibility
- DVI monitor support – fully compliant with DVI specifications
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display
problems and optimizes responsiveness when switching between ports
- Note: Video DynaSync™ only works with digital video sources
- HDCP-compatible for hassle-free content-protected media playback
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
- Adjustable depth to fit within the rack
- Audio support for connecting speakers
- Auto Scan Mode for monitoring all computers
- Multiplatform support Windows, Linux, Mac, Sun
- Console lock – enables the console drawer to remain securely locked away
in position when not in use

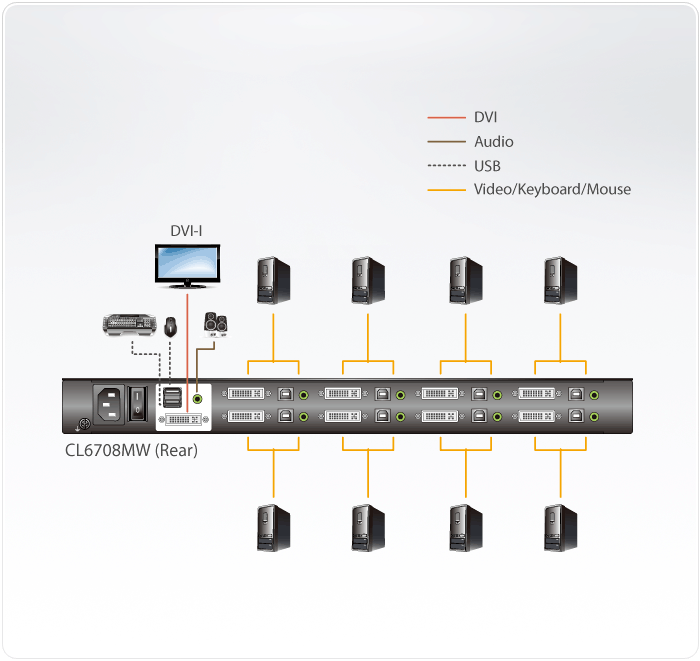

Diagram
Specifications
Computer
Connections |
|
Direct |
8 |
Maximum |
64 |
Port
Selection |
OSD, Hotkey,
Pushbutton |
Connectors |
|
External Console
Ports |
1 x DVI-I Female, 2 x
USB Type A Female, 1 x Mini Stereo Jack Female |
External Mouse
Port |
1 x USB Type-A
Female |
KVM
Ports |
8 x DVI-I Female, 8 x
USB Type A Female, 8 x Mini Stereo Jack Female |
Firmware
Upgrade |
1 x RJ-11
Female |
Power |
1 x
IEC60320/C14 |
Switches |
|
Reset |
1 x Semi-recessed
Pushbutton |
Power |
1 x Rocker
Switch |
Firmware
Upgrade |
1 x Slide
Switch |
LCD
Adjustment |
4 x
Pushbutton |
LCD
On/Off |
1 x
Pushbutton |
Port
Selection |
8 x
Pushbutton |
LEDs |
|
Online |
8
(Orange) |
Selected |
8
(Green) |
Power |
1 x KVM Power(Dark
Green) |
|
1 x LCD
Power(Orange) |
Lock |
1 x Num Lock
(Green) |
|
1 x Caps Lock
(Green) |
|
1 x Scroll Lock
(Green) |
Panel
Spec |
|
Screen
Size |
17.3" |
Pixel
Pitch |
0.1989 mm x 0.1989
mm |
Support
Color |
262144
colors |
Contrast
Ratio |
650:01:00 |
Luminance |
300
cd/m |
Response
time |
8
ms |
Viewing
Angle |
140 (H), 120
(V) |
Emulation |
|
Keyboard /
Mouse |
USB |
Video |
1920 x 1080 @ 60 Hz;
DDC2B |
Scan
Interval |
1255
sec. |
Maximum Input Power
Rating |
100240 V AC, 50/60 Hz,
1 A |
Power
Consumption |
110V, 29.26W ; 220V,
28.82W |
Environmental |
|
Operating
Temperature |
040C |
Storage
Temperature |
-2060C |
Humidity |
080% RH,
Non-condensing |
Physical
Properties |
|
Housing |
Metal +
Plastic |
Weight |
12.70 kg ( 27.97 lb
) |
Dimensions (L x W x
H) |
48.00 x 68.92 x 4.40
cm |
|
(18.9 x 27.13 x 1.73
in.) |
