All stock codes associated to this product
CA1F500F1WN00, CA-1F5-00F1WN-00
Overview
Thermaltake presents the latest TT Premium product line which follows the
core values of Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity. Under this product line is the new Core W Series Core W200
and Core WP200 super tower chassis with the Core P200 pedestal chassis to
deliver versatility in different superior looks.
Being as the first dual system chassis with full assembly concept, the Core W
Series is the great new challenges for makers to start from zero and experience
the true DIY by putting every piece together to complete a high-end system. The
Core W200 is capable of housing more than twenty drive trays and up to ten
expansion slots, which can be served as another workstation in the industrial
field. With its unprecedented space for high-end hardware and liquid cooling
expansion, the Core W200 supports the latest XL-ATX, E-ATX, ATX, Micro ATX,
Mini-ITX motherboards, and also SSI MEB. All standard equipment of the chassis
is included, what makers need to purchase is custom liquid cooling components
ones need for building up aesthetically-superior water cooling systems by
incorporating externally-modular upgrades for their chassis.
TT Premium
To continue achieving the corporate mission of delivering the perfect user
experience, Thermaltake developed "TT Premium" with the essence of combining
supreme quality products with a new logo design. TT Premium is far more than
just a guarantee of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake's desire to be the most innovative brand in the PC
hardware market. To satisfy the demand of the high-end PC users, TT Premium
follows its core values of Excellent Quality, Unique Design, Diverse
Combinations and Boundless Creativity to provide a high performance PC product
for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.
DMD - Dismantlable Modular Design
Being the first chassis with a ground up build it yourself design, the Core W
Series is a great new challenge for makers to start from zero by putting every
piece together to complete a high-end system. With removable "3 + 14" drive
racks and freely interchangeable SSD/HDD cage sections, the Core W200 offers
more for maximum interior space. Take advantage to include high-end, maximum
capacity, cooling allotment without the reduction of GPU length limitations when
incorporating liquid cooling expansion for the ultimate in cooling
performance.
Workstation Concept
With more than 20 drive trays and 10 PCIe slots, the Core W200 can be used as
another workstation for technical or scientific purposes, holding data or
hosting a number of different features between computers. Compatible with the
latest Intel processors and AMD/Nvidia graphics cards, the Core W200 delivers
exceptional performance and creates effective work environment.

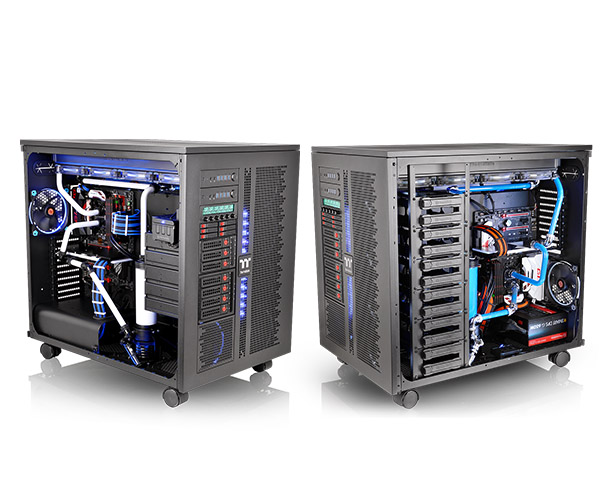

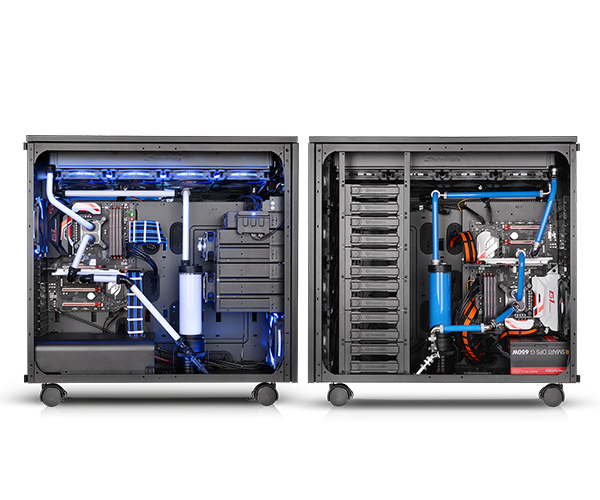

Dual System in One
Due to the partition of the chassis, users are capable of putting two systems
in the case. The Core W200 has room for XL-ATX, E-ATX, ATX, Micro ATX, and
Mini-ITX builds. With two systems in one case, there are also two sets of I/O
buttons located on front-top of the case.
Superior Expansion
Designed for high-end gaming systems and workstation compatibility, the Core
W200's modular drive racks allow makers to easily install up to more than twenty
data storage devices, a dual slot VGA of up to 635mm in length, and a tower CPU
cooler as high as 200mm. Even with a high-wattage PSU stretching to 220mm in
length, there is still plenty of space for cable management. Moreover, a 360mm
radiator can be installed in the front of the chassis, delivering superior
cooling performance.

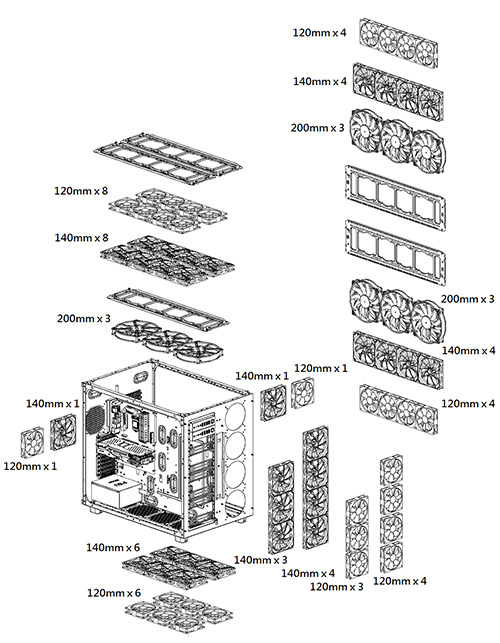

Outstanding Ventilation
The Core W200 's unparalleled cooling ability offers fan brackets with
various mounting points to support any type of cooling you can dream of
including DIY/AIO liquid-cooling systems and air-cooling units. Fans can be
mounted anywhere inside the chassis: support for up to eight 140mm fans at the
front and a rear 140mm fan guarantees excellent airflow capabilities; three
large 200mm fans on the top panel as well as six 140mm fans at the bottom, while
there is still room for 120mm, 140mm, and 200mm fans on both sides.
Versatile Expandability
With its stacking design, the Core W200 and the Core P200 make two different
combinations: by stacking Core P200 on the top or at the bottom of Core W200.
The mix and match of Core WP200 offers an expandable system allowing enthusiasts
to incorporate externally-modular upgrades. Stacked together, the chassis opens
up space to expand the liquid cooling system, the storage solutions, or even
create dual systems, thereby enabling a dedicated top/bottom set-up for pure
cooling. When stacked, the maximum radiator length supported is 600mm on the
front side.
Expand the limits with the stackable Core P200 Pedestal (sold separately)
allowing externally-modular upgrades for even more cooling and power
capabilities.
Core W200 Radiator Supporting List
Radiator Compatibility List |
|
120 |
240 |
280 |
360 |
140 |
280 |
420 |
560 |
200 |
400 |
600 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Front |
* |
* |
* |
|
* |
* |
|
|
|
|
|
Top |
* |
* |
* |
* |
* |
* |
* |
* |
* |
* |
* |
Rear |
* |
|
|
|
* |
|
|
|
|
|
|
Bottom |
|
|
|
|
* |
* |
|
|
|
|
|
Right Side |
* |
* |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
|
Water 3.0 Compatibility List |
|
|
|
|
|
|
|
|
Ultimate |
Extreme |
Pro |
Performer |
|
|
|
|
|
|
|
Front |
|
|
|
|
|
|
|
|
|
|
|
Top |
* |
* |
* |
* |
|
|
|
|
|
|
|
Rear |
|
|
* |
* |
|
|
|
|
|
|
|
Bottom |
|
|
|
|
|
|
|
|
|
|
|
Core W200 Fan Supporting List
Fan Compatibility List |
|
120mm |
140mm |
200mm |
Front |
7 |
7 |
- |
Top |
8 |
8 |
3 |
Rear |
2 |
2 |
- |
Bottom |
6 |
6 |
- |
Side (L/R) |
8 |
8 |
6 |
|
|
|
|
Thermaltake Compatible Fan |
|
120mm |
140mm |
200mm |
Pure Fan Series |
* |
* |
* |
Luna Fan Series |
* |
* |
* |
Odin Fan Series |
* |
* |
|

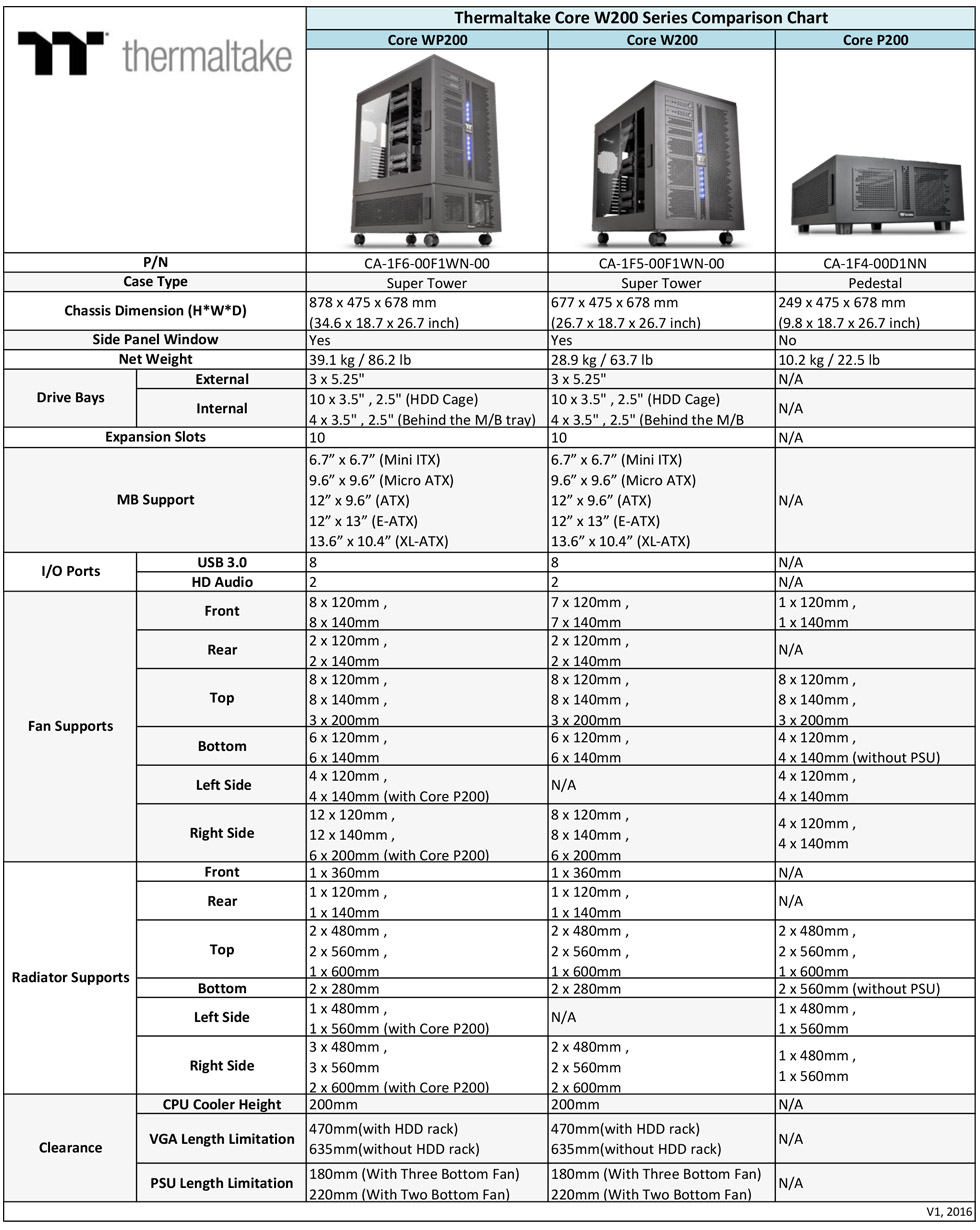

Specifications
P/N |
CA-1F5-00F1WN-00 |
Case Type |
Super Tower |
Dimension (H x W x D) |
677 x 475 x 678 mm |
(26.7 x 18.7 x 26.7 inch) |
Net Weight |
28.9 kg / 63.7 lb |
Side Panel |
Transparent Window |
Color |
Exterior &nterior : Black |
Material |
SPCC |
Drive Bays |
-Accessible |
3 x 5.25 |
-Hidden |
10 x 3.5 or 2.5 (HDD Cage)
|
4 x 3.5 or 2.5 (Behind the M/B tray) |
Expansion Slots |
10 |
Motherboards |
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) ,
|
12 x 13 (E-ATX) , 13.6 x 10.4 (XL-ATX) |
I/O Port |
USB 3.0 x 8, HD Audio x 2 |
PSU |
Standard PS2 PSU x 2 (optional) |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Fan Support |
Front: |
7 x 120mm , 7 x 140mm
|
Top:
|
8 x 120mm , 8 x 140mm , 3 x 200mm |
Rear: |
2 x 120mm , 2 x 140mm |
Bottom:
|
6 x 120mm , 6 x 140mm |
Right Side: |
8 x 120mm , 8 x 140mm , 6 x 200mm |
Radiator Support |
Front: |
1 x 360mm
|
Top: |
2 x 480mm , 2 x 560mm , 1 x 600mm
|
Rear: |
1 x 120mm , 1 x 140mm |
Bottom:
|
2 x 280mm
|
Right: |
2 x 480mm , 2 x 560mm , 2 x 600mm |
Clearance |
CPU cooler height limitation: |
200mm |
VGA length limitation:
|
470mm(with HDD rack) |
635mm(without HDD rack) |
PSU length limitation: |
180mm (With Three Bottom Fan) |
220mm (With Two Bottom
Fan) |
