All stock codes associated to this product
CA1F800M1WN02, CA-1F8-00M1WN-02
Overview
The new Core X71 Tempered Glass Edition full tower chassis by Thermaltake
features an enlarged 4mm thick tempered glass window, riser GPU support bracket
with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans, and its
groundbreaking interior design that offers full assembly capacity and
expandability for PC enthusiasts to create an advanced or a massive liquid
cooling system. The Core X71 is an ideal choice for those who are looking for a
chassis with superior expansion and unparalleled cooling performance!
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only
products that pass the design and hardcore enthusiasts standards that a true LCS
chassis should be held to. The Tt LCS certification was created so that we at
Thermaltake can designate to all power users which chassis have been tested to
be best compatible with extreme liquid cooling configurations to ensure you get
the best performance from the best features and fitment.

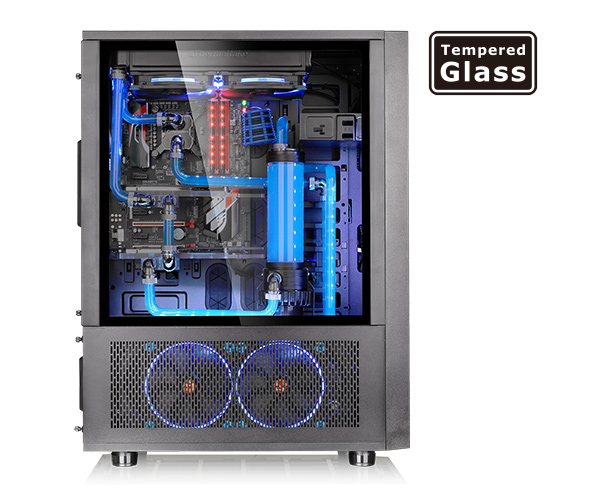

4mm Thick Tempered Glass Window with Gorgeous View
The tempered glass features 4mm thickness that guarantees the durability of
the window. Moreover, the enlarged window design permits users to fully display
and admire all components of the liquid-cooling system. Show off your dedicated
set in the subtlest manner!
Space-Optimized Dual Chamber Design
Optimized for space management, the Core X71 utilizes dual chamber design to
offer a tidy looking system by separating the liquid-cooling loop, and PSU and
HDD cages into a different chamber. The removable 3.5"/2.5" drive device racks
give assemblers plenty of flexibility to gain the maximum interior space needed
for advanced cooling performance.
*When placing the PSU at the lower chamber, 8 Pin power extension cable may
be required.

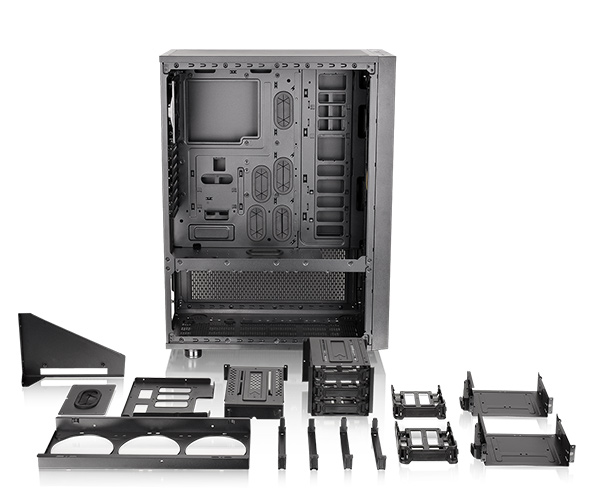

Fully Modular Concept
A "2 + 5" drive bay design for storage devices makes setting up the latest
storage solution super easy and flexible. Besides hanging 2 x 3.5"/2.5" at the
back of motherboard tray, users are also capable of freely adjusting the 3.5"
drive cages within the upper chamber or to the lower chamber to suit their
particular needs.
*Note: Suggested VGA thickness up to 50mm(2.5 -slot reference card standard)
with 7mm space for ventilation.

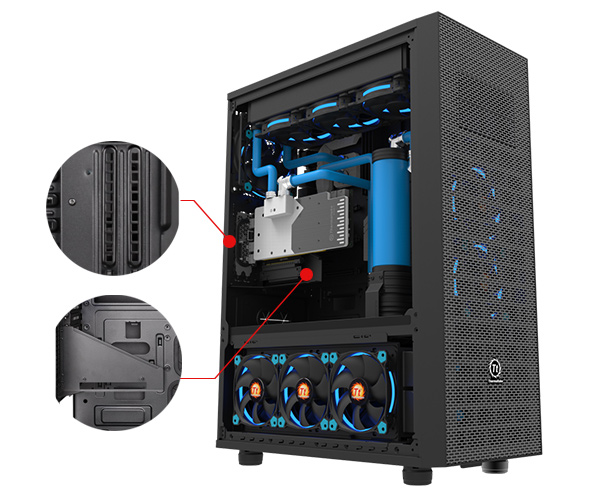

Riser GPU Support Bracket
Specially designed with dual GPU placement, the Core X71 has the support for
vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable
is optional. Plus, the included riser GPU support bracket not only can prevent
the graphic card from sagging, but also helps to reduce the weight on the
motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU
solutions.
Superior Expandability
Designed for high-end gaming system compatibility, the Core X71's modular
drive racks allow users to easily install up to seven data storage devices, a
dual expansion slot VGA of up to 420mm in length, and a tower CPU cooler as high
as 180mm. Even with a high-wattage PSU stretching to 220mm in length, the Core
X71 still leaves plenty of interior space for cable management. Moreover, a
480mm radiator can be installed at front of the chassis, delivering superior
cooling performance.
Ideal for Advanced Cooling Solutions
Featuring a width of 250mm, the Core X71's unparalleled cooling ability
offers fan brackets with various mounting points to support any type of gaming
system that can be accommodated, including DIY/AIO liquid-cooling systems and
air-cooling units. Users can install up to 480mm radiator at the front and a
360mm radiator on each side in the lower chamber. Additionally, the Core X71
comes with two 140mm Riing Blue fans at front and a 140mm fan at the rear to
optimize system ventilation.
Patented Riing 14 LED Blue – A 140mm patented blue LED Ring radiator fan with
high-static pressure design.

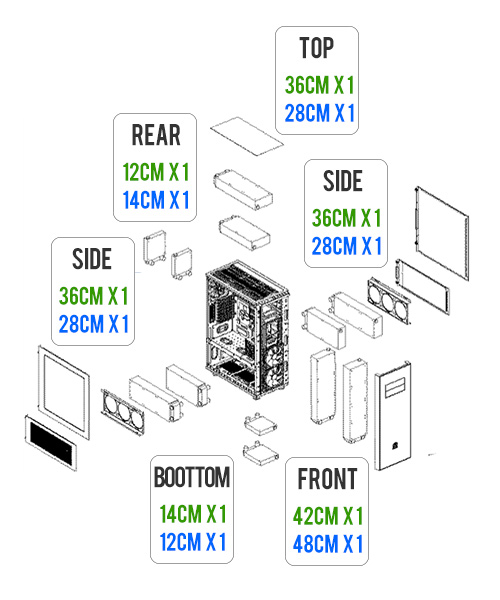

Core X71 Radiator Supporting List
Radiator Compatibility List |
|
120 |
140 |
240 |
280 |
360 |
420 |
480 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Front |
* |
* |
* |
* |
* |
* |
* |
Top |
* |
* |
* |
* |
* |
|
|
Rear |
* |
* |
|
|
|
|
|
Bottom |
* |
* |
|
|
|
|
|
Side (L/R) |
* |
* |
* |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All-in-One Compatibility List (Water 3.0
Series) |
|
|
|
|
|
120mm (Performer/Pro) |
240mm (Extreme) |
360mm (Ultimate) |
|
|
|
|
Top |
* |
* |
* |
|
|
|
|
Rear |
* |
* |
|
|
|
|
|

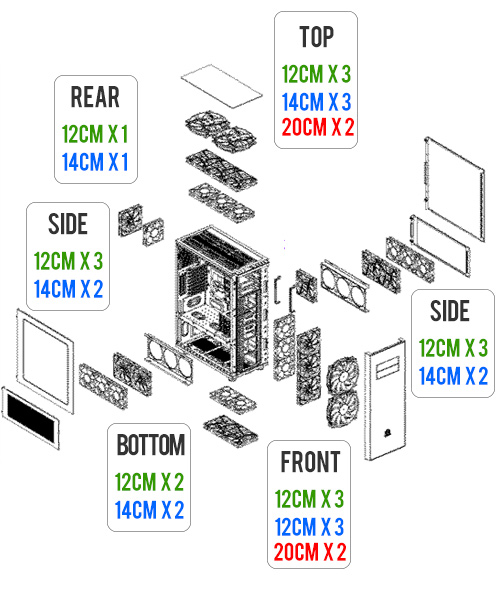

Core X71 Fan Supporting List
Fan Compatibility List |
|
120mm |
140mm |
200mm |
Front |
3 |
3 |
2 |
Top |
3 |
3 |
2 |
Rear |
1 |
1 |
|
Bottom |
2 |
2 |
|
Side |
3 |
2 |
|
|
|
|
|
|
|
|
|
Thermaltake Compatible Fan |
|
120mm |
140mm |
200mm |
Pure Fan Series |
* |
* |
* |
Luna Fan Series |
* |
* |
* |
Riing Fan Series |
* |
* |
|
Specifications
Model |
Core X71 TG Edition |
P/N |
CA-1F8-00M1WN-02 |
Case Type |
Full Tower |
Dimension (H x W x D) |
677 x 250 x 511 mm |
(26.7 x 9.8 x 20.1 inch) |
Net Weight |
12.7 kg / 27.9 lb |
Side Panel |
Tempered Glass (4mm thickness) |
Color |
Exterior &Interior : Black |
Material |
SPCC |
Cooling System |
Front (intake) : |
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x
2 |
(1000rpm, 22dBA with LNC)
|
Rear (exhaust) :
|
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) |
Drive Bays |
-Accessible : |
2 x 5.25 |
|
-Hidden : |
3 x 3.5 or 2.5 (HDD Cage) |
2 x 3.5 or 2.5 (Behind the M/B tray) |
Expansion Slots |
8 + 2 |
Motherboards |
6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6
(ATX) |
I/O Port |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU |
Standard PS2 PSU (optional) |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Fan Support |
Front: |
3 x 120mm , 3 x 140mm , 2 x 200mm |
Top: |
3 x 120mm , 3 x 140mm , 2 x 200mm
|
Rear: |
1 x 120mm , 1 x 140mm |
Bottom: |
2 x 120mm , 2 x 140mm
|
Left / Right Side:
|
3 x 120mm , 2 x 140mm |
Radiator Support |
Front: |
1 x 480mm , 1 x 420mm |
Top:
|
1 x 360mm , 1 x 280mm |
Rear: |
1 x 120mm , 1 x 140mm
|
Bottom:
|
1 x 120mm , 1 x 140mm
|
Left / Right Side:
|
1 x 360mm , 1 x 280mm |
Clearance |
CPU cooler height limitation: |
180mm |
|
VGA length limitation:
|
278mm(with HDD rack) |
420mm(without HDD rack) |
|
PSU length limitation:
|
180mm (With One Bottom Fan) |
220mm (Without Bottom
Fan) |
