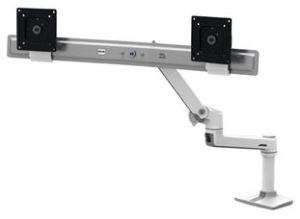

45-489-216 | Ergotron LX Desk Dual Direct Monitor Arm - White


Create a fully adjustable side-by-side monitor configuration that lifts both LCD screens simultaneously to where they're easier to see while reclaiming valuable desktop space.

Reposition your LCDs with just a touch. Up. Down. Forward. Back. The low-profile crossbow allows monitors to move simultaneously with ease. Monitors pivot up and down independently providing a compact range of motion and optimal monitor alignment.

Product Benefits

• Increases viewing comfort: Helps reduce eye, back and neck strain

• The low-profile monitor cross-bar provides a compact range of motion

• Easily move two monitors simultaneously

• Each monitor has individual tilt

• Position LCD screens for maximum ergonomic comfort-promotes wellness in any work area

• Free up your desktop to increase your workspace

• Easy to use-simple installation and effortless operation

• Patented CFmotion technology provides premium ease-of-use display adjustment

• Passes Ergotron's 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Specifications

• Part Number:45-489-026 (white), 45-489-216 (polished aluminum), 45-489-231 (silver)

• Description: LX Desk Dual Direct Arm

• Includes: LX Arm, extension, desk clamp, dual bow, (2) monitor pivots, 7" pole, and monitor mounting hardware

• Streamline cable management that routes cables under arm and within extension

• Portrait/landscape rotation with lockout

• Handle for Dual Direct Arm available as an accessory (98-037-062)

• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm &5 mm)

• Grommet mount attaches through hole 5/16" to 2" (7-51 mm) wide and up to 3" (80 mm) thick

• * Weight Capacity: Maximum individual LCD weight = 2-11 lbs (1-5 kg) per monitor. Total weight capacity = 4-22 lbs (1.8-9.9 kg)

• Tilt Range: 15° backward, 15° forward

• Up to 24.3" (61.7 cm) extended reach

• 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)

• ** Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen-size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness

• Shipping Dimensions: 32.8" x 13" x 7" (83 x 33 x 18 cm)

• Shipping Weight 15.5 lbs (6.6 kg)

• Warranty: Ten (10) years
