Overview

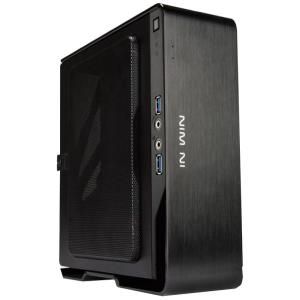

Small, Smart, Sleek and Spectacular!
Chopin is an ultra slim form factor case designed for the most efficient and
user friendly experience. It is only 3.3 liters in size, but comes with various
multi-functional features. It has everything you need, and nothing you dont.
Sleek Aluminium Exterior
Chopin features a 4mm brushed aluminium shell that complete a clean and sleek
chassis frontal.
Customizable I/O Panel
Four color I/O stripes allows you to customize your own case with your unique
style.
Dual Orientation
Ultra small form factor design takes little space on your desk, and it can be
positioned horizontally or vertically for maximum space saving.
150W 80 PLUS Bronze Adapter Included
A small, yet powerful 150 watt adapter features low noise and maximum
efficiency.
Perforated Mesh Panels
The top and side mesh panel design enhances the heat dissipation and provides
excellent ventilation.
Space Savvy Design
Innovative dual layout structure with 2 x 2.5 drive bays located at the other
side of motherboard main plate for maximum expandability in a compact size.
Specifications
Model |
Chopin |
Color |
Black |
Case Type |
Mini-ITX Tower |
Case Material |
Aluminium, SECC |
M/B Compatibility |
Mini-ITX (Max:6.7" x 6.7") |
Expansion Slots |
N/A |
Front Ports |
2 x USB 3.0 HD Audio |
External Drive Bays |
N/A |
Internal Drive Bays |
2 x 2.5" |
Thermal Solution Compatibility |
CPU Heatsink Compatible
- - CPU die surface to side panel height: 43mm Maximum
- - Motherboard to side panel height: 51mm Maximum
|
Power Supply Compatibility |
150W Internal PSU Included |
Product Dimension (H x W x D) |
244mm x 84mm x 217mm 9.6" x 3.3" x 8.6" |
Package Dimension (H x W x D) |
276mm x 120mm x 275mm 10.9" x 4.7" x 10.8" |
Net Weight |
2.2kg/4.8lb |
Gross Weight |
2.5kg/5.5lb |
