Aten CE750A USB VGA/Audio Cat 5 KVM Extender (1280 x
1024@200m)
Overview
The CE750A is a USB-based KVM Extender with automatic signal compensation and
RS-232 serial functionality that allows access to a computer system from a
remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the
CE750A is perfect for use in any type of installation where you need to place
the console where it is conveniently accessible, but you want the system
equipment to reside in a safe location – for example away from the dust and dirt
of the factory floor or the harsh environment of a construction site.
The CE750A improves on previous designs by the addition of an RS-232 port, on
both the Local and Remote Units, that allows you to connect to a serial terminal
for configuration (Local Unit) or serial devices such as touchscreens and
barcode scanners (Remote Unit).
Package Contents
- 1x CE750AL USB KVM Extender (Local Unit)
- 1x CE750AR USB KVM Extender (Remote Unit)
- 1x Custom KVM Cable set
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
Features
- Local and Remote units connect at distances up to 200 meters using Cat 5e
cable
- Dual console operation – control your system from both the local and
remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- USB keyboard and USB mouse ports
- RS-232 serial ports – allows you to connect to a serial terminal for
configuration (Local Unit) or serial devices such as touchscreens and barcode
scanners (Remote Unit)
- Supports stereo speakers and stereo microphone
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) – select between
Local and Auto operating modes
- Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV)
and 2KV surge protection
- Adjustable gain control – automatically and manually adjusts signal
strength to compensate for distance
- High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at
150m, 1280x1024@60Hz at 200m
- Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync
monitors; local monitor supports DDC, DDC2, DDC2B
- Hot pluggable
- Rack mountable
- Easy to install – no software required, simply connect cables to the
devices
- Supports wide screen formats*
* The EDID data for a widescreen is sent from the local video output port.
For widescreen modes and displays, connect the monitor to the local video output
port or use an ATEN EDID emulator.

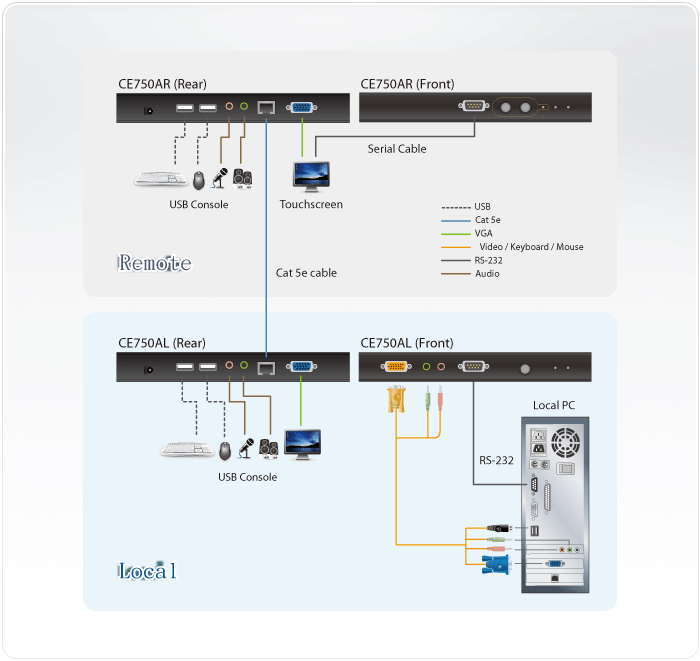

Diagram
Specifications
Connectors |
Console
Ports |
2 x USB Type A Female
(White) |
1 x HDB-15 Female
(Blue) |
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Pink) |
1 x DB-9 Female
(Black) |
1 x RJ-45
Female |
1 x DC
Jack |
KVM
Ports |
1 x SPHD-15 Female
(Yellow) |
1 x Mini Stereo Jack
Female (Green) |
1 x Mini Stereo Jack
Female (Pink) |
|
|
LEDs |
Local |
1
(Green) |
Remote |
1
(Green) |
Link |
N/A |
Compensation |
N/A |
|
|
Pushbuttons |
Operating Mode
Selection |
1 x
Pushbutton |
Compensation |
N/A |
|
|
Emulation |
Keyboard /
Mouse |
USB |
Video |
1920x1200@60Hz at
30m; |
1600x1200@60Hz at
150m; |
1280x1024@60Hz at
200m |
Power
Consumption |
DC5.3V/2.68W |
|
|
Environmental |
Operating
Temperature |
0-50C |
Storage
Temperature |
-20-60C |
Humidity |
0-80% RH,
Non-condensing |
|
|
Physical
Properties |
Housing |
Metal |
Weight |
0.47 kg ( 1.04 lb
) |
Dimensions (L x W x
H) |
20.20 x 8.63 x 2.50
cm |
(7.95 x 3.4 x 0.98
in.) |
