Aten KE6900ST USB DVI-D Single Display Slim KVM Over IP Transmitter
ATEN is well known for delivering innovative technologies that drive data
connectivity and access management. To offer extreme flexibility into any
working environment, we announced the new KVM over IP Matrix System that
combines KE Series Extenders with the KE Management Software (CCKM). This system
is designed to deliver the ultimate in flexibility when extending, controlling
and monitoring access to multiple computers, in a multitude of ways, across a
network.

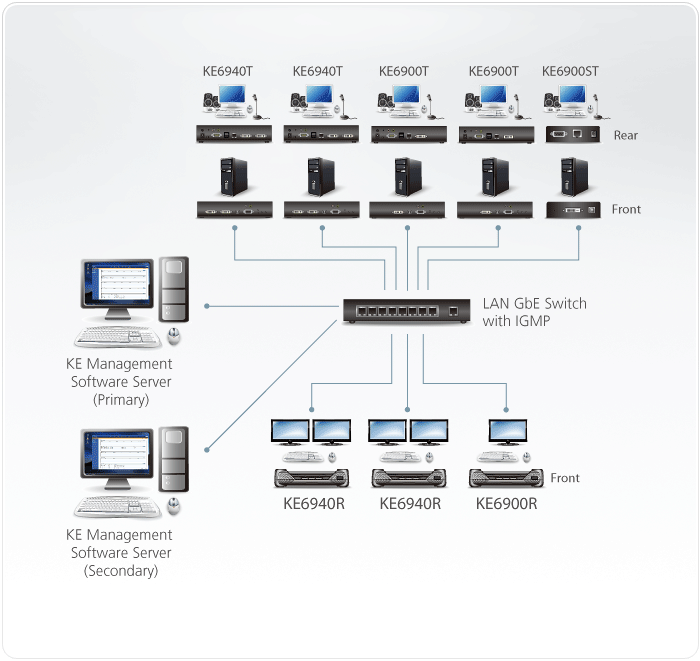

KE Series Extenders give extended access to a computer from a remote USB
console (USB keyboard, USB mouse, DVI monitor) anywhere over a network. As an
IP-based matrix Extender, it can connect in many different ways, to fulfill
different working environments, such as one-to-one (Extender mode), one-to-many
(Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode). The
KE6900 Single display Extender supports one DVI display at each end. The KE6940
Dual display Extender supports two DVI displays at each end, allowing the video
to display on two monitors. The KE6900ST Slim DVI KVM over IP Extender is a
compact and affordable transmitter which can be paired with any KE69x0R unit for
a savings based solution that stays within budget.
The KE Management Software (CCKM) provides KE Extenders with advanced
features for username/password authentication, auto detection of all KE Series
Extenders on the same subnet and the ability to define different types of
connections that can be switched and shared. New security features also provide
extra protection, supporting AES-128 bits encryption for secured data
transmissions, while RADIUS, LDAP, AD or remote user authentication provides an
added layer of enhanced security.
Whether you're monitoring, operating, controlling or extending computer
access, the KVM over IP Matrix System is made adaptable, to fit an endless
variety of working environments and workstation settings, to provide solutions
in broadcasting, control center, multimedia, manufacturing and many other
industries where matrix extending is required.
Specifications
Connectors |
KVM Ports |
1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x DB-9
Female (Black) |
Power |
1 x DC Jack (Black) |
LAN Ports |
1 x RJ-45 (Black) |
Switches |
Reset |
1 x Semi-recessed Pushbutton |
LEDs |
Link |
1 (Green / Orange) |
Power |
1 (Blue) |
Emulation |
Keyboard / Mouse |
USB |
Power Consumption |
DC 5V/3.25W |
Video Resolution |
Up to 1920 x 1200 @ 60Hz |
Environmental |
Operating Temperature |
050C |
Storage Temperature |
-2060C |
Humidity |
095% RH, Non-condensing |
Physical Properties |
Housing |
Metal |
Weight |
0.43 kg ( 0.95 lb ) |
Dimensions (L x W x H) |
14.39 x 10.30 x 3.00 cm (5.67 x 4.06 x 1.18 in.) |
Note |
For some of rack mount products, please note that the standard
physical dimensions of WxDxH are expressed using a LxWxH
format. |
