All stock codes associated to this product
OPC3301BTBKIT
Overview

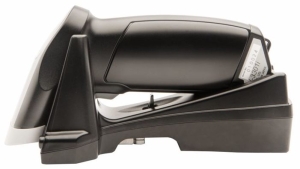

The OPI-3301i is a lightweight, comfortable and wireless handheld scanner
with a pistol grip design. It has a powerful CMOS imager to scan both 1D and 2D.
The Bluetooth connection ensures real-time data transfer to your system. Easily
paired with your phone, tablet or computer, this is a scanner that performs well
in any situation.
Applications
This product is used in service environments, kiosks, store counters,
warehouses, administrative services or tasks and retail. The OPI-3301i has a
modern classic, clean look that fits perfectly on a counter or desk where no
cables are desired.
How we describe the OPI-3301i
The pistol grip design and ergonomic fit of the scanner increases the comfort
when scanning while the modern classic look makes sure it looks good when on the
counter or desk. The scan engine can scan both 1D and 2D with a powerful imager
scanning at a speed of 60fps. The OPI-3301i is Apple MFi certified to facilitate
the pairing with Apple products like the iPad, iPod or iPhone. Compared with
other pistol grip scanners this one stands out in weight with only 120 grams to
its name. This is the 2D scanner version of the OPC-3301i.
The operator of the OPI-3301i is not required to be trained in detail, the
minimum guidance is sufficient. This product is a scanner that looks good in any
store, office or warehouse.
Features
A few highlights why the OPI-3301i should be in your hands:
- 1D
- Bluetooth connection
- Lightweight
- Plug and play
Specifications
Scan Engine
Light Source
Scan Pattern
Scan Rate
Motion Tolerance
Image Capture
Capture Area
Contrast Ratio
Resolution
- 0.102 mm / 4 mils (Linear Barcodes)
Depth of field
- Code 39:
5 mils - 5.5 to 7.5 cm
6 mils - 4.5 to 10.0 cm
10 mils
- 3.5 to 17.5 cm
20 mils - 4.0 to 30.0 cm
30 mils - 6.0 to 50.0
cm
Performance may be impacted by Bar code quality and environmental
conditions
Tilt Angle
Pitch Angle
Skew Angle
Ambient Light Immunity
- Fluorescent 10,000 Lux Max.
- Direct Sun 100,000 Lux Max.
Symbologies supported
- 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93,
Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), GS1 DataBar Limited, GS1
DataBar Expanded, Code 11, IATA, Industrial 2of5, Interleaved 2of5,
ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen,
Tri-Optic,UK/Plessey
Postal Code: Chinese Post, Korean Postal Authority
code
Programming Method
Driver available
Indicators
- Multi Colour LED (red/green/blue)
- Buzzer
Operating Modes
Communication Type
Communication Technology
- Bluetooth Ver. 2.1 SPP/HID, output Class 2,
- Range up to 10 m
- 1 to 1 Connection to Bluetooth enabled Device
- Master/Slave mode
- Authentication & encryption
Interfaces
Supply Voltage
- 6 VDC to Charging Base
- Battery: Li-ion 1100mAh, Charge time on Charging base 3 Hrs at 6V
- Operating Time: approx. 48 Hours at 1 Scan/5 Sec, Approx. 72 Hours Stand
by
Power Consumption
Drop Specification
- Designed to withstand repeated 1.5m drops to concrete
- Vibration Test 10-100Hz with 2G for 1 Hour
Environmental Sealing
ESD Protection
Operating Environment
- 0 ~ 50C, Relative Humidity 20 - 85% none condensing
Storage Environment
- -20 ~ 60C, Relative Humidity 20 - 85% none condensing
EMC/Safety Standards
- CE, FCC, VCCI, MFi, RoHS, IEC62471, IEC60950-1
External Dimensions (WxDxH)
- Scanner: 113 x 56 x 132 mm
Weight
Warranty
