All stock codes associated to this product
945000030, 945-000030, 3578501, 945000030(PROSWI), 945-000030(PROSWI)
Overview
Multiple In-Cockpit Controls

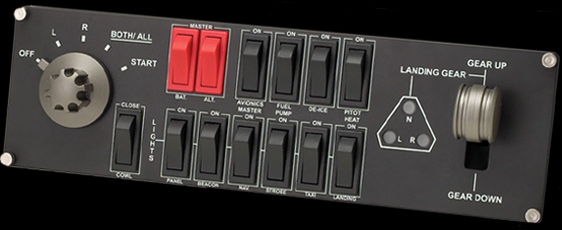

Saitek's Professional Flight Switch Panel is ideal for expanding the number
of controls in your flight simulator setup. Attach it to your Logitech G Flight
Yoke, place it atop your desk, or even mount it to your own custom cockpit
setup. Control your landing gear and lights, engine power and other important
aircraft functions, all from one compact unit.
Features
Five-Position Magneto Dial
Ignites Your Engines
Flight Switch Panel accommodates a wide range of different aircraft and
features a five-setting rotary switch that individually controls the magnetos in
your plane's ignition system. The 'R' and 'L' positions activate their
respective magneto in each engine, 'BOTH/ALL' activates every magneto, and
moving to 'START' engages the starter. Once engaged, the engines and magnetos
turn, working in unison to fire at exactly the right time in the ignition
process.
Realistic Landing Gear Control
With LED Indicators

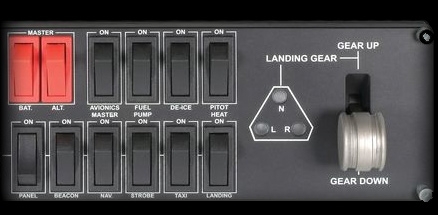

Bring your plane's landing gear up or down with a satisfying click of an
actual control lever. Convenient LEDs provide visual indication of real-time
gear status from FSX and Prepar3D. Now you can see the exact state of your
landing gear with a mere glance at the Switch Panel.
Full Customizable For All Flying Conditions
Modular and Interchangeable

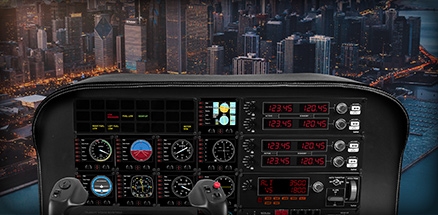

The Logitech G range of panels can be situated one on top of another or
side-by-side. Want the Radio Panel above the Multi Panel? Done. Want your Switch
Panel to the left of your Yoke? Go for it. Easy-to-use mounting brackets provide
the means to arrange your flight simulation setup in a configuration only
limited by your imagination.
Simple Installation
Plug-and-Play All the Way
Your panel works with Windows 7, 8.1 and 10 and, following the quick
installation of a small plug-in from the support page, is compatible with your
favorite flight simulation software for PCs including FSX - Flight Simulator X,
X-Plane 10, and Prepar3D2.2.
Learn To Fly An MD80
Simulate the Actual Aircraft with This Kit
For a quick simulation configuration to get you in the pilots seat of an MD80
twin-engine commercial jetliner, this bundle is the recipe:
- 1 Flight Yoke System
- 2 Flight Instrument Panels
- 1 Flight Switch Panel
- 1 Flight Radio Panel
- 1 Flight Multi Panel
Specifications
|
System Requirements |
Windows 10, Windows 8.1, Windows 7 |
|
1-USB 2.0 Port |
|
Internet connection for optional software download |
|
Packaging Content |
Flight Switch Panel |
|
Flight Switch Panel brackets |
|
User documentation |
|
Physical Specifications |
|
|
Flight Switch Panel |
|
|
Length |
11 in (28.2 cm) |
|
Width |
2.5 in (6.3 cm) |
|
Height |
3.3 in (8.4 cm) |
|
Weight (w/o bracket) |
13 oz (369 g) |
|
Weight |
1.2 lbs (549 g) |
|
Cable Length (Power/Charging) |
5.9 ft (1.8 m)
|
|
Flight Switch Bracket |
|
|
Length |
11 in (28.2 cm) |
|
Width |
3.2 in (8 cm) |
|
Height |
3.2 in (8 cm)
|
|
Controller Specifications |
|
|
Connection Type |
USB |
|
USB Protocol |
USB 2.0 |
|
USB Speed |
Full Speed |
|
Indicator LIghts (LED) |
Yes |
|
LCD Display |
No |
|
USB Ports (Built-in) |
No |
|
Backlighting |
No |
