Aten CS1912 2-Port USB 3.0 DisplayPort KVMPâ„¢
Switch
Overview
The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMPâ„¢ Switch provides the latest
innovations in desktop KVM switching technology to meet the increasing demand of
higher video quality and file transfer rates on modern computers. The CS1912
provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1
Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1912 gives users access to two DisplayPort computers
from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912
provides three convenient switching methods – front panel pushbuttons, mouse and
hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus
on one computer while the USB peripheral focus is on another computer. This
eliminates the need to purchase a separate USB hub or stand-alone peripheral
sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1912 is designed to surpass all requirements
for video post production, CAD design and applications that have a high demand
for precise video clarity and large data transfer rates. The CS1912 allows you
to share the audio from each computer and in HD quality when transmitted by the
DisplayPort, to offer you an exciting sound experience.
Package Contents
- 1 x 2-Port USB 3.0 DisplayPort KVMPâ„¢ Switch
- 2 x DisplayPort Cables
- 2 x USB 3.0 Cables
- 2 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
Features
- 2-port DisplayPort KVMPâ„¢ Switch with USB 3.1 Gen 1 hub and 2.1 surround
sound audio
- One USB console controls 2 computers and 2 USB peripherals
- Computer selection via front panel pushbuttons, hotkeys and mouse*
- Independent switching of KVM, USB, and Audio focus
- Superior video quality – up to 3840 x 2160 @ 30 Hz
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort 1.1 compliant, HDCP compliant
- Supports HD audio through DisplayPort**
- Full bass response for high-quality 2.1 channel surround sound systems
- Power On Detection – if a computer is powered off, the CS1912
automatically switches to the next powered-on computer
- Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via
an DisplayPort-to-HDMI/DVI DP++ adapter***
- Hot pluggable – add or remove computers without powering down the switch
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and
multifunction mice
- Multi-platform support – Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French and
German keyboards
- Mac keyboard support and emulation****
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Note:
* Mouse port switching is only supported under mouse emulation mode with a
USB 3-button mouse wheel.
** HD audio through DisplayPort cannot be switched independently.
*** Dual-Mode DisplayPort technology (DP++) does not require an active
adapter for most single display setups. Active DisplayPort adapters are
recommended if you are unsure of the video source's DP++ compatibility.
**** PC keyboard combinations emulate Mac keyboards. Mac keyboards only work
with their own operating system.

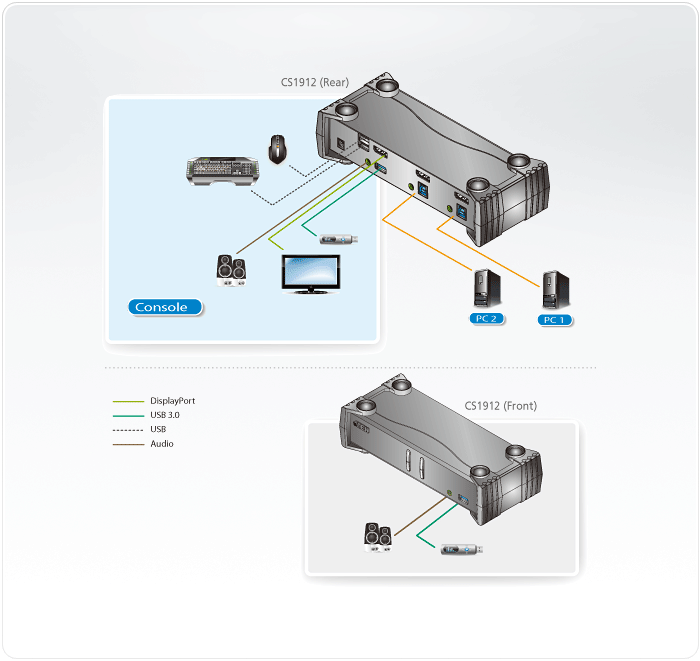

Diagram
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Hotkey, Pushbutton,
Mouse |
|
|
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x DisplayPort Female
(Black) |
|
2 x Mini Stereo Jack
Female (Green; 1 x front, 1 x rear) |
|
KVM (Computer)
Ports |
2 x USB3.1 Gen1 Type B
Female (Blue) |
|
2 x DisplayPort Female
(Black) |
|
2 x Mini Stereo Jack
Female (Green) |
|
Power |
1 x DC
Jack |
|
USB
Hub |
2 x USB3.1 Gen1 Type A
Female (Blue; 1 x front panel; 1 x rear panel) |
|
|
|
Switches |
|
Selected |
2 x
Pushbutton |
|
|
|
LEDs |
|
On Line
/Selected |
2
(Orange) |
|
USB
Link |
2
(Green) |
|
|
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
3840 x 2160 @
30Hz |
|
Scan
Interval |
1-99 Seconds (Default:
5 sec.) |
|
Power
Consumption |
DC 5.0V;
3.3W |
|
|
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal,
Plastic |
|
Weight |
0.73 kg ( 1.61 lb
) |
|
Dimensions (L x W x
H) |
21.00 x 8.80 x 5.55
cm |
|
(8.27 x 3.46 x 2.19
in.) |
