All stock codes associated to this product
GBAC300W, GB-AC300W
Overview
Features
- RGB Fusion-16.8M Customizable RGB Lighting
- Transparent Full Side Panel Window
- Support Vertical and Horizontal VGA Installation
- HDMI and USB Type-C I/O Panel
- PSU Shroud Design
- Detachable Dust Filter
Overview
DISPLAY FREELY

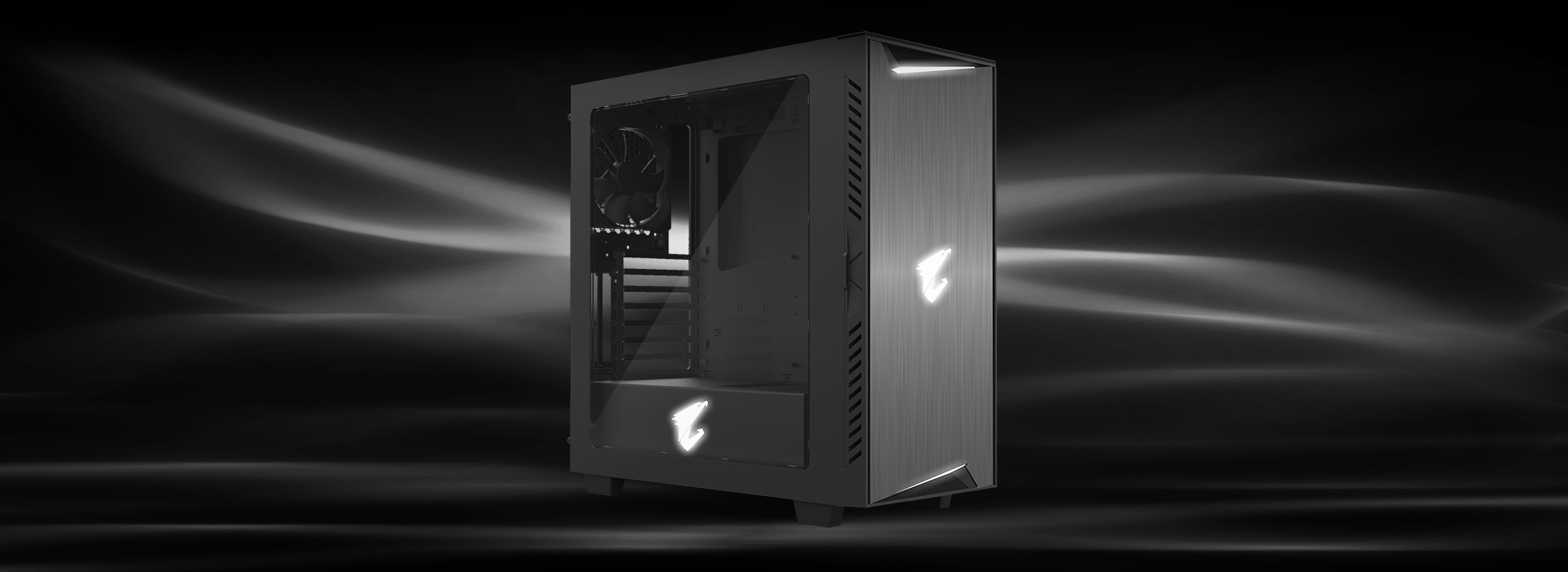

AC300W ATX MID-TOWER PC CASE

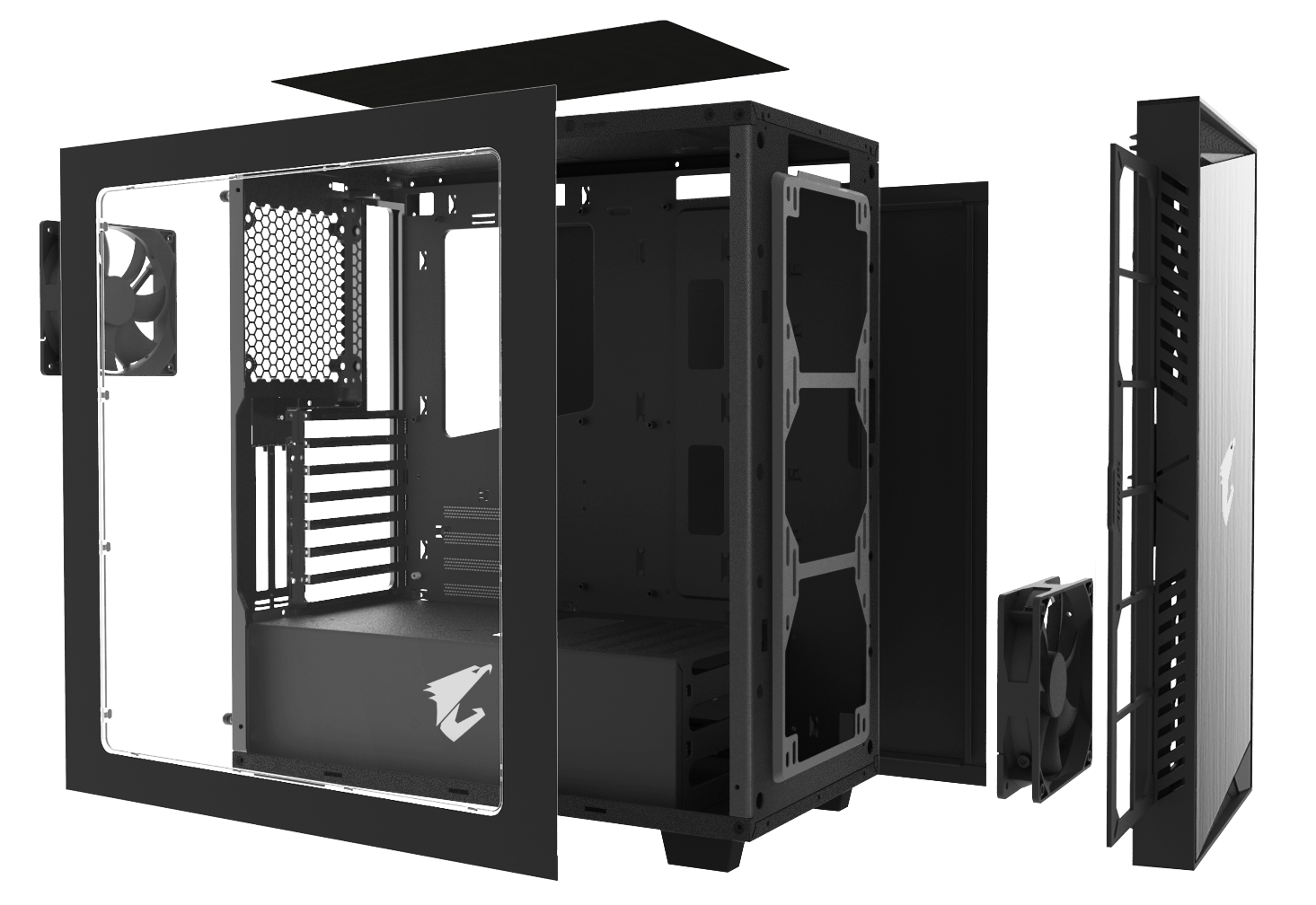

AORUS PRODUCT DESIGN
DETACHABLE DUST FILTER
Keep dust out of the case and prevent your system from suffocating with the
detachable dust filters that are easy to clean with a quick, simple rinse.
TRANSPARENT FULL SIDE PANEL WINDOW
The transparent acrylic side panel window gives a unique and full view of
your own build.

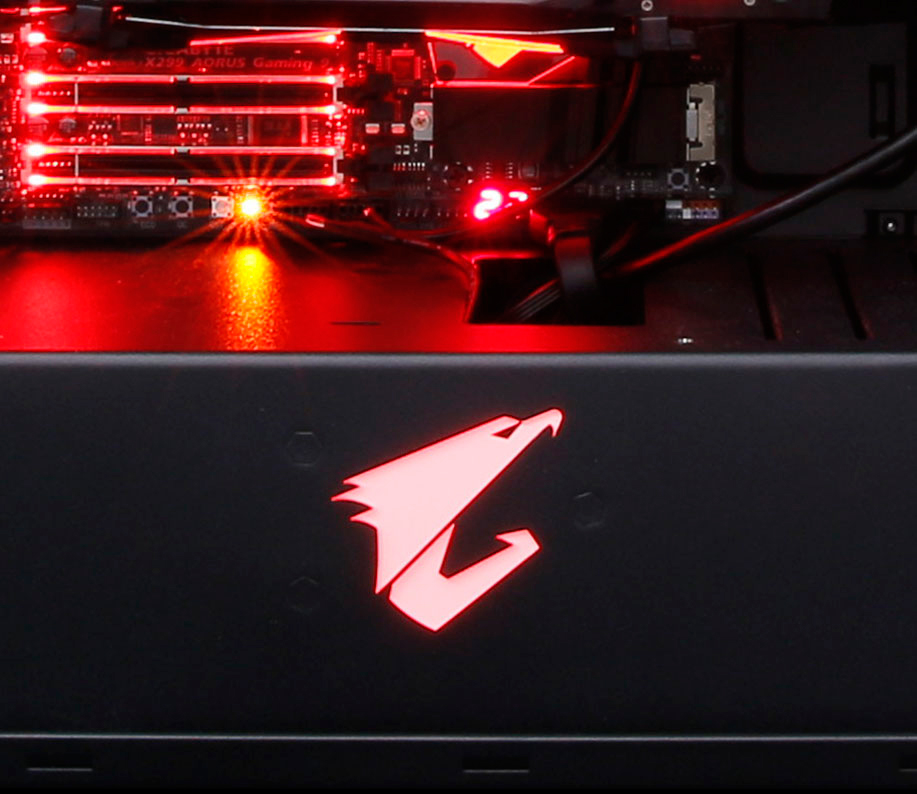

PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy cable connectors inside
the PSU shroud, while separating the PSU heat from the rest of the internal
system.
BACK-MOUNTING DRIVE BAYS
Mount the 2.5" SSD or 3.5" HDD hard drives from the back side of case,
keeping the system look clean and neat.

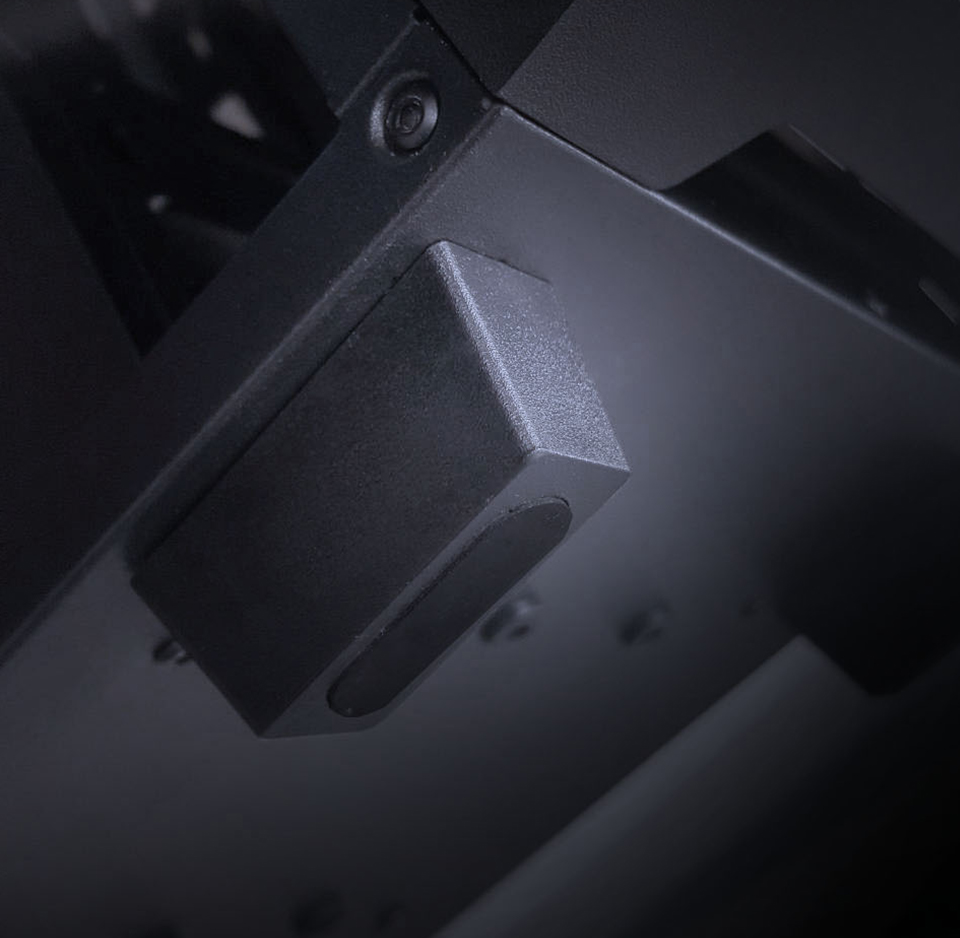

ABSORBING RUBBER FEET
Anti-vibration rubber feet designed to absorb vibrations from PC cases and
help heat dissipation.
SUPPORT VERTICAL & HORIZONTAL VGA INSTALLATION
The AC300W chassis is designed for both vertical and horizontal mounted VGA.
Show off your fancy graphics card for best viewing presentation with the
flexible support of vertical VGA installation.

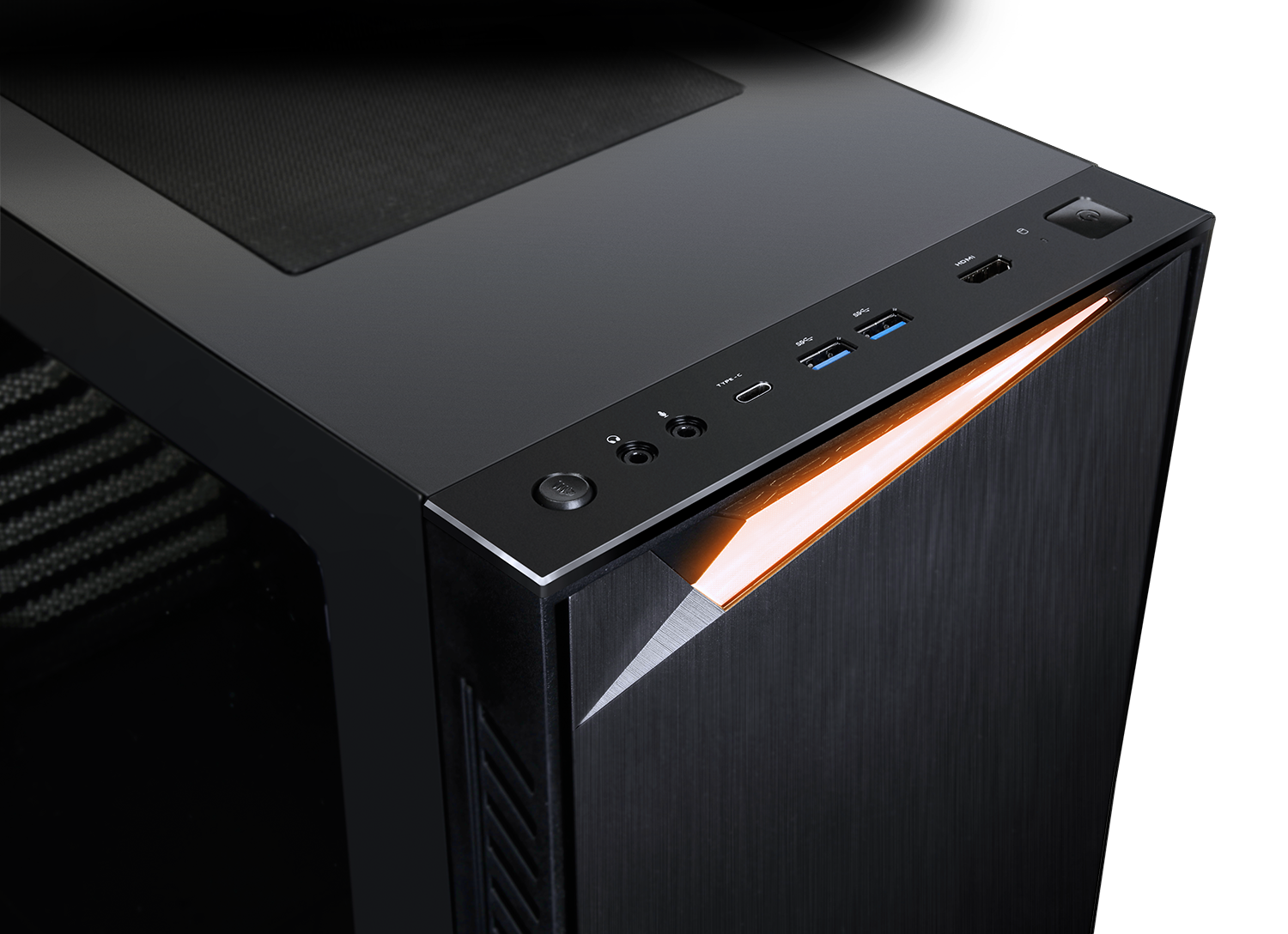

EVOLUTIONARY I/O PANEL
Equipped with an upgraded I/O panel, you have access to LED control, audio
ports and three USB ports including USB Type-C. Compliance with AORUS VR Link
connectivity, the I/O panel has also been optimized by introducing a HDMI port
for a convenient VR connection.
AORUS OUTLOOK
RGB FUSION
With
16.7M customizable color options and numerous lighting effects, you could now
choose the right scheme for your gaming rig through AORUS Graphics Engine.
CYCLING
- Smoothly cycles through all colors
CONSISTENT
- Choose a color for static light
FLASH
- Choose a color for flash effect
BREATHING
- Choose a color to fade in and out
OPTIMAL COOLING AIRFLOW
GOOD VENTILATION
DRIVE BAY IN THE WAY OBSTRUCT AIRFLOW
Specifications
|
Case Form Factor |
Mid Tower |
|
|
|
M/B Type |
mini-ITX/m-ATX/ATX |
|
|
|
Color |
Black |
|
|
|
Materials |
Steel, Plastic |
|
|
|
Dimensions |
H469*W211*D458 mm |
|
|
|
5.25" Driver Bays |
None |
|
|
|
3.5/2.5 Driver Bays |
2 |
|
|
|
2.5" Driver Bays |
3 (Behind the MB tray) |
|
|
|
I/O Panel |
HDMI x1 |
|
USB Type-C x1 |
|
USB 3.0 x 2 |
|
Audio in & out (supports AC97 / HD Audio) |
|
|
|
Expansion Slot |
7 or 2 (requires PCIE riser cable) |
|
|
|
Fan Support |
|
|
Front |
120mm*3 / 140mm *2 |
|
Top |
120 mm*2/ 140mm*2 |
|
Rear |
120mm*1 / 140mm*1 |
|
Default |
Rear 120mm*1+ Front 120mm*1 |
|
|
|
Power Supply Type |
Standard ATX (Not included) |
|
|
|
Maximum Compatibility |
|
|
CPU Height |
170mm |
|
VGA Length |
400mm |
|
PSU Length |
180mm |
