All stock codes associated to this product
NH-U14S-TR4-SP3, NHU14STR4SP3
Overview

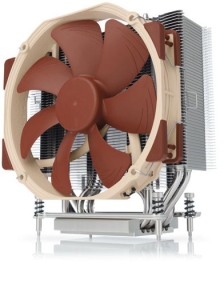

Continuing the legacy of Noctua’s classic NH-U-series, which has received
more than a thousand awards and recommendations from international hardware
websites and magazines, the NH-U14S has become a benchmark for high-end 140mm
single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s
TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact
surface as well as the latest SecuFirm2â„¢ mounting system for socket TR4/SP3.
Topped off with the renowned quiet NF-A15 PWM 140mm fan, Noctua’s proven NT-H1
thermal compound and a full 6-year manufacturer’s warranty, the NH-U14S TR4-SP3
forms a complete premium-quality solution that combines maximum performance and
superb acoustics for enthusiast-grade TR4/SP3 systems.
Features
Award-winning NH-U series
The NH-U14S is the first 140mm model in Noctua's award-winning NH-U series.
First introduced in 2005, the NH-U series has become a standard choice for
premium quality quiet CPU coolers and won more than 400 awards and
recommendations from leading international hardware websites and magazines.
Tailored custom version for TR4/SP3 (Ryzen Threadripper /
Epyc)
At 70x56mm, the copper contact surface of the TR4-SP3 version is more than
double the size of the standard model. Tailored to fit the enormous integrated
heat-spreaders (IHS) of AMDs TR4/SP3-based processors, this customised design
allows for an optimal heat flow from the CPU over the base to the heatpipes and
on to the cooling fins.
140mm size for maximum performance
With six heatpipes, a fin surface area of more than 6000cm and the large
NF-A15 140mm fan, the NH-U14S TR4-SP3 provides a superior level of cooling
performance that makes it ideal for the most high-end, enthusiast-grade TR4/SP3
systems.
NF-A15 140mm premium fan
Complying with Noctuas AAO standard and featuring sophisticated aerodynamic
design measures such as Flow Acceleration Channels, the NF-A15 has quickly built
up a reputation as one of the best 140mm heatsink fans on the market.
PWM support and Low-Noise Adaptor
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient
automatic speed control through the mainboard. In addition, the maximum fan
speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor
for even quieter operation.
Anti-vibration pads and fan-clips for second NF-A15
(optional)
For users who want to achieve even better performance by adding a second,
optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips
and an extra set of custom-designed anti-vibration pads that allow to off-set
the rear fan by 5mm to improve acoustics in dual-fan mode.*
SecuFirm2â„¢ mounting system for TR4/SP3
Noctuas SecuFirm2 mounting systems have become synonymous with quality,
safety and ease of use. The TR4-SP3 variant has been completely custom-designed
for the new socket and is particularly easy to install: Put on the heatsink, fix
the four spring-loaded screws and youre done!
Offset mounting options for better PCIe clearance
In order to assure optimal compatibility with SLI and CrossFire multi-GPU
setups, the SecuFirm2 mounting for TR4/SP3 makes it possible to offset the
cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing
clearance of the top PCIe slot.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware
journalists around the world, Noctua's NT-H1 is a proven professional grade TIM
solution that provides minimum thermal resistance, excellent ease of use and
outstanding reliability.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding
longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of
more than 150.000 hours and the entire NH-U14S package comes with a full 6-year
manufacturer's warranty.
Specifications
General |
|
Notes and warnings |
Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD
TR4/SP3 socket. Due to its customised larger base, it cannot be used on
any other sockets and is incompatible with Noctuas standard mounting
kits. |
|
|
Cooler Specification |
|
Socket compatibility |
AMD TR4 & SP3 |
Height (without fan) |
165 mm |
Width (without fan) |
150 mm |
Depth (without fan) |
52 mm |
Height (with fan) |
165 mm |
Width (with fan) |
150 mm |
Depth (with fan) |
78 mm |
Weight (without fan) |
865 g |
Weight (with fan/s) |
1030 g |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints
& nickel plating |
Fan compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting
holes), 120x120x25 |
Scope of delivery |
NF-A15 PWM premium fan |
|
Low-Noise Adaptor (L.N.A.) |
|
NT-H1 high-grade thermal compound |
|
SecuFirm2 mounting kit |
|
Anti-vibration pads and fan-clips for second NF-A15
(optional) |
|
Noctua metal case-badge |
Warranty |
6 Years |
|
|
FAN Specification |
|
Model |
Noctua NF-A15 PWM |
Bearing |
SSO2 |
Max. Rotational Speed (+/- 10%) |
1500 RPM |
Max. Rotational Speed with L.N.A. (+/- 10%) |
1200 RPM |
Min. Rotational Speed (PWM, +/-20%) |
300 RPM |
Max. Airflow |
140,2 m/h |
Max. Airflow with L.N.A. |
115,5 m/h |
Max. Acoustical Noise |
24,6 dB(A) |
Max. Acoustical Noise with L.N.A. |
19,2 dB(A) |
Input Power |
1,56 W |
Voltage Range |
12 V |
MTTF |
> 150.000
h |
