Technical specifications |
|
|
Scanner type |
Sheetfed |
|
Scan resolution, optical |
Up to 600 dpi (color and mono, Sheet-feed) |
|
Duty cycle (daily) |
Recommended for 7,500 pages per day |
|
Bit depth |
24-bits external 48-bits internal |
|
Levels of grayscale |
256 |
|
Task speed |
10 x 15 cm (4 x 6 in) color photo to file (200 dpi, 24-bit, tiff):
about 5.98 sec for single image scan |
|
10 x 15 cm (4 x 6 in) color photo to e-mail (150 dpi, 24-bit): about
4.91 sec for single image scan |
|
about 1.23 sec for single image send to email. Totally 6.14
sec |
|
A4 (8.27 x 11.69 in) PDF to e-mail (300 dpi, 24-bit): about 6.51 sec
for single image scan |
|
about 3.5 sec for single image send to email. Totally 10.01
sec |
|
Media types |
Cut Sheet Paper, Printed Paper (Laser and ink), Pre-Punched Paper, Bank
Checks, Business Cards, Freight Bills, Carbonless forms, Plastic Carrier
sheets for easily damaged documents, Previously stapled media with staple
removed |
|
Media weights, supported ADF |
10.7 to 110 lb |
|
Scan file format |
For text & images: ePub 3.0, HTML 4.0, Excel file format (*.xls,
*.xlsx), PowerPoint file format (*.pptx), Word (*.docx), WordPerfect
(*.wpd), searchable PDF, JPEG, PNG, BMP, TIFF, Text (.txt), Rich Text
(rtf), XML and XPS |
|
Scan input modes |
Two scan modes (simplex/duplex) on front-panel for HP SDSS in Win OS
and third parties applications via TWAIN, ISIS and
WIA |
|
Scanner advanced features |
Auto-color detect, auto-crop, auto-exposure, auto orient, OCR, edge
removal, background cleanup, remove hole, color drop out, straighten the
page, scan to cloud, scan to email, PDF security, misfeed detection
advance setting, batch processing, barcode, scan to multiple
desitnations |
|
Control panel |
2-line 16 character per line LCD display, Simplex button, Duplex
button, Cancel button, Power button with a LED and Tool
button. |
|
|
|
ADF specifications |
|
|
Automatic document feeder capacity |
80 sheets of Xerox 4024 75 g/m paper |
|
Automatic document feeder speed |
Up to 75 ppm/150 ipm |
|
Scan size (ADF), maximum |
216 x 3100 mm |
|
Scan size (ADF), maximum |
8.5 x 122 in |
|
Scan size (ADF), minimum |
50.8 x 50.8 mm |
|
Scan size (ADF), minimum |
2 x 2 in |
|
|
|
Compatible operating systems |
|
|
Compatible operating systems |
Microsoft Windows 10, Windows 8, Windows 7 |
|
Mac compatible |
No |
|
|
|
Connectivity |
|
|
Connectivity, standard |
USB 2.0 and USB 3.0 (SuperSpeed) |
|
Connectivity, optional |
USB 2.0 port for Wi-Fi accessory |
|
Twain version |
TWAIN version 2.1 |
|
|
|
Power and operating requirements |
|
|
Voltage |
Input Voltage range: 90 - 264 VAC, Rated Frequency: 50 - 60HZ,
Worldwide use |
|
Power consumption |
6.7 watts (ready), 0.9 watts (sleep), 0.1 watts (off), 0.1 watts
(auto-off) 2 |
|
Operating temperature range |
10 to 35ºC |
|
Operating humidity range |
15 to 80% RH (non-condensing) |
|
|
|
Dimensions and weight |
|
|
Minimum dimensions (W x D x H) |
12.20 x 7.79 x 7.48 in |
|
Weight |
8.4 lb |
|
|
|
What's included |
|
|
Warranty |
One-year bench limited warranty whole unit replacement, phone and Web
support included. Warranty may vary by country as required by law. Go
to https://www.hp.com/support to learn about HP world-class
service and support options in your region. |
|
|
|
What's in the box |

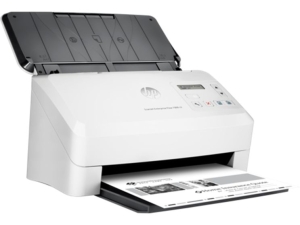

HP ScanJet Enterprise Flow 7000 s3 Sheet feed
Scanner |
|
Installation guide, Support flyer, Warranty guide |
|
2CDs |
|
Power cord |
|
USB cable |
|
Power Adapter |
|
|
|
Software included |
HP WIA scan driver |
|
HP TWAIN scan driver |
|
HP Smart Document Scan Software |
|
HP Scanner Tools Utility |
|
I.R.I.S. Readiris Pro |
|
I.R.I.S. Cardiris |
|
Nuance PaperPort |
|
EMC ISIS driver |
|
Kofax VRS Pro |
|
|
|
Cable included |
Yes(WW) |
|
1. With input and output trays folded and covers closed
|
|
2. Power requirements are based on the country/region where
the scanner is sold. Do not convert operating voltages. This will damage
the scanner and void the product warranty. |
|
3. Actual speeds may vary depending on scan
resolution, connectivity type, computer performance and application
software. |
