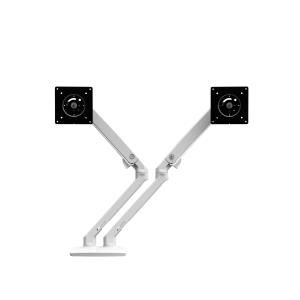

Ergotron 45-496-216 MXV Desk Dual Monitor Arm Mount - White
Add style to your dual monitor desk without sacrificing functionality. The
sleek and lightweight MXV incorporates a modern V-shaped design with proven
engineering to create a stable yet flexible platform for your side-by-side
screens.
With a slim profile, MXV offers 13" (33 cm) of integrated height adjustment,
integrated tilt and moreall on a convenient swivel base. The arms adjustability
helps increase viewing comfort, while its upscale finish leaves a stylish
impression.
Benefits
- Enhance productivity by positioning your work across two screens. Easily
turn one or both screens from landscape to portrait mode to view full pages
and additional applications without scrolling
- Saves valuable desk space with the cable management system and narrower
profile—25% slimmer than the LX arm
- Allows you to easily adjust your display with a light touch thanks to
patented Constant Forceâ„¢ technology
- Creates additional flexibility with a friction pivot that offers a
180-degree tilt
- Supports displays weighing 7 to 20 lbs (3.2 to 9.1 kg)
- Monitor can extend out up to 22.2" (56 cm)
- Sits securely on your workstation with a low-profile desk clamp base that
can fit in tight places
- Keeps your monitors within your desk space with a solid rotation-stop,
perfect for call centers and back-to-back desks
- Prevents your arm from making contact with the wall with the base’s
rotation-stop, which limits its range to 180 degrees ‡
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of
trouble-free height adjustment
- Arrives fully assembled for you to easily attach to your desk, add your
monitor and adjust the tension
Specifications
|
Screen |
24" § |
|
Capacity |
40 lbs |
|
18.1 kg * |
|
Lift |
13" |
|
33.0 cm |
|
Tilt |
180° †|
|
Pan |
360° ‡ |
|
Rotation |
360 |
|
Vesa |
MIS-D |
|
Warranty |
10 years |
|
Description: |
MXV Desk Mount Dual LCD Monitor Arm |
|
Includes fully assembled dual arm, two-piece desk clamp, mounting
hardware |
|
Can be configured to hold a laptop instead of an LCD display; also
order the accessory Notebook Tray (50-193-200) |
|
Quality Tested |
10,000-cycle test applied to lift mechanism, ensuring years of
trouble-free height adjustment |
|
Arm folds back over the base into a compact retracted position; perfect
for tucking under systems furniture storage shelves or cabinets in space
constrained areas |
|
Mounting Options |
Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm)
thick |
|
An accessory Grommet Mount is available to install arm to desk via a
through-hole in its surface: order 98-111 |
|
Desk clamp has anti-rotation screws to prevent base from
slipping |
|
Mounting Standards |
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75
mm) |
|
Screens sizes up to 34" can be accommodated though there will be a
reduction in adjustment capability |
|
* Weight Capacity |
individual monitor weight = 7 to 20 lbs (3.2 to 9.1 kg); maximum
combined weight of displays = 40 lbs (18.1 kg) |
|
Tilt Range |
90 backward, 90 forward |
|
Pan Range |
180 at base; 360 between extension and arm. Rotation-stop on base can
be disengaged at time of installation to increase range to
360 |
|
Extension Range |
17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of
base to VESA mounting plate |
|
Product Weight |
10.1 lbs (4.9 kg) |
|
Shipping Dimensions |
10.1 lbs (4.9 kg) |
|
Shipping Weight |
10.1 lbs (4.9 kg) |
|
Warranty |
Ten (10) years |
