All stock codes associated to this product
HDMI2VGA, 1612651, 65030839587

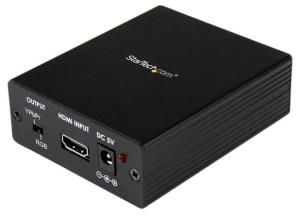

StarTech HDMI to VGA Video Adapter Converter w. Audio
Connect HDMI enabled devices to a VGA monitor with
stereo audio separation
-
Supports VGA and Component (YPbPr) output
conversion
-
Compliant with HDCP 1.1, and DVI
-
Built-in EDID
-
Audio video are separated on output
The HDMI2VGA HDMI to VGA converter converts digital HDMI or DVI video signals
to analog VGA, taking the input resolution from your device and converting it
into an analog signal at the same resolution.
The converter also separates the audio stream from the HDMI signal (HDMI LPCM
2-Channel) and converts it to analog stereo audio that can be used with the VGA
display.
With support for resolutions of up to 1080p, the HDMI2VGA converter is a
perfect solution for connecting video cards (desktop or laptop) or consumer
electronics devices such as game consoles or home theater receivers that offer
an HDMI output to a VGA display.
The HDMI2VGA adapter/converter is simple to use, with no complicated
settings, and is backed by a 2-year warranty and free, lifetime technical
support.
The StarTech.com Advantage
- The easiest way to convert HDMI to VGA with audio, allowing you to make
your existing devices work together
- Supports PC, SD (standard definition), and HD (high definition)
resolutions.
Specifications
| Warranty Information |
| Warranty |
2 Years |
| Hardware |
| Active or Passive Adapter |
Active |
| Audio |
Yes |
| Converter Type |
Format Converter |
| Performance |
| Audio Specifications |
HDMI LPCM 2-channel Input |
| Supported Resolutions |
PC: 1920x1200, 1600x1200, 1680x1050, 1440x900, 1280x1024, 1280x800,
1152x864, 1024x768, 800x600, 640x480
HD: 1080p/1080i (50, 60Hz),
720p (50, 60Hz), 576i/576p (50Hz), 480i/480p (60Hz) |
| Connector(s) |
| Connector A |
1 - HDMI (19 pin) Female Input |
| Connector B |
1 - 3.5 mm Mini-Jack (3 Position) Female Output |
|
1 - VGA (15 pin, High Density D-Sub) Female Output |
| Special Notes / Requirements |
| Note |
PC resolutions below 1280x1024 may support multiple refresh rates;
60Hz supported across all |
|
Audio from computers running macOS is not supported |
| Indicators |
| LED Indicators |
1 - Power (Red) |
| Power |
| Center Tip Polarity |
Positive |
| Input Current |
0.3A |
| Input Voltage |
100 ~ 240 AC |
| Output Current |
1.2A |
| Output Voltage |
5 DC |
| Plug Type |
N |
| Power Consumption (In Watts) |
6 |
| Power Source |
AC Adapter Included |
| Environmental |
| Humidity |
0~60% RH |
| Operating Temperature |
0C to 40C (32F to 104F) |
| Storage Temperature |
-10C to 60C (14F to 140F) |
| Physical Characteristics |
| Color |
Black |
| Product Height |
3.6 in [92 mm] |
| Product Length |
3 in [76 mm] |
| Product Weight |
6.1 oz [172 g] |
| Product Width |
3 in [76 mm] |
| Packaging Information |
| Shipping (Package) Weight |
18.4 oz [520 g] |
| What's in the Box |
| Included in Package |
1 - HDMI to VGA Converter w/ Audio |
|
1 - VGA to Component Breakout Cable |
|
1 - Universal Power Adapter (US/UK/EU/AUS) |
|
1 - Instruction Manual |
