All stock codes associated to this product
GPS4421-BKK1B, GPS4421BKK1B, DLGPS4421BU, DLGPS4421B-U, 5712505724521

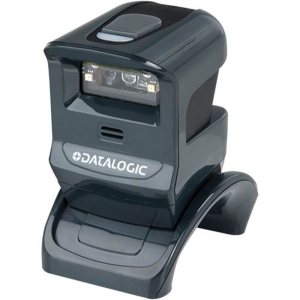

Datalogic Gryphon GPS4421-BKK1B 2D Area Imager Kit - USB,
Black
The Gryphon GPS4490 scanner is a presentation scanner in a stylish body available in white or dark grey. The GPS4490 scanner offers all the capabilities and performances of the Gryphon GD4400 handheld scanner but in a presentation-style shape. It allows hands-free scanning of small and easily handled items as well as handheld scanning operation for bulkier items. The reader's compact size makes it the ideal solution for space-constrained environments. Its adjustable stand positions the scanner for easy, intuitive reading. The stand can easily be removed if it is not needed, further reducing the overall dimensions of the scanner. Capable of reading codes from mobile phones, PDAs.
- USB HID Interface only
- Snappy omni-directional reading
- Intuitive aiming system
- Compact, ergonomic design is ideal for hands-free or handheld operation
- Illumination system optimized to allow easy reading of bar codes from mobile phones, laptops or PDAs
- Image capture
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Specifications
Light Source
Illumination: 625nm LED
Aiming: 650 nm VLD
Scan Pattern
752 x 480 Pixels
Image Capture
Graphic Formats: BMP, JPEG, TIFF
GreyScale: 256, 16, 2, JPEG, TIFF
Capture Area
Field of View: 40° H x 26° V
Contrast Ratio
25% Minimum reflective difference
Resolution
Standard Range (SR):
1D Linear Max. 0.102mm / 4 mils
Datamatrix 0.178mm / 7 mils
Depth of field
Code 39: 5 mils - 2.6 to 18.8 cm
Code 39: 10 mils - 0.0 to 37.9 cm
Data Matrix: 10 mils - 2.3 to 14.5 cm
Data Matrix: 15 mils - 0.0 to 23.2 cm
EAN 13: 13 mils - 0.8 to 42.2 cm
PDF417: 10 mils - 0 to 22.4 cm
QR Code: 10 mils - 2.3 to 14.3 cm
Performance may be impacted by Bar code quality and environmental conditions
Ambient Light Immunity
0 - 100,000 Lux
Symbologies supported
1D:Auto-discriminates all standard 1D codes including GS1 DataBarâ„¢ linear codes
2D:Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese
Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Programming Method
Manual: Reads special bar codes
Automatic: Software commands through the RS-232 / USB interfaces
Datalogic Aladdinâ„¢: Windows configuration program
Remote Host Download (Lowers service costs and improves operations)
Driver available
JavaPOS, OPOS Utilities
Indicators/Controls
Scanner Indicators:
Good Read LED
"Green spot" on the code
Adjustable Tone &Volume beeper
Interfaces
USB only version
Supply Voltage
5 VDC +/-5%
Power Consumption
Typical 175 mA, Max. 400 mA
Drop Specification
Withstands repeated drops from 1.2 m onto a concrete surface
Environmental Sealing
IP52
ESD Protection
+/- 16 kV air discharge
Operating Environment
0° ~ 40°C, Relative Humidity 0 - 95% none condensing
Storage Environment
-40° ~ 70°C, Relative Humidity 0 - 95% none condensing
EMC/Safety Standards
Complies to EU RoHS
CDRH Class II, EN 60825-1 Class 2, IEC 60825 Class 2
External Dimensions (WxDxH)
Scanner only : 64 x 74 x 95mm
Scanner with Stand: 73 x 121 x 107mm
Weight
Scanner only : 178g
Scanner with Stand: 295g
