All stock codes associated to this product
USB3S2SAT3CB, 2557443, 65030854696
StarTech USB3.0 to 2.5" SATA-III HDD Adapter Cable w.
UASP
Connect a 2.5in SATA hard drive to your computer using a portable cable with
UASP Support
- Cable-style adapter
- UASP Support (Attached SCSI Protocol Specification Revision 1.0)
- Compatible with USB 3.0/2.0/1.1 (5Gbps/480Mbps/12Mbps)

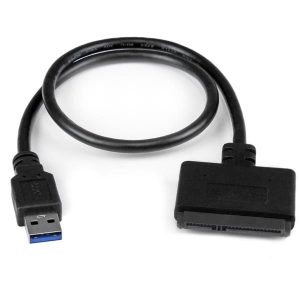

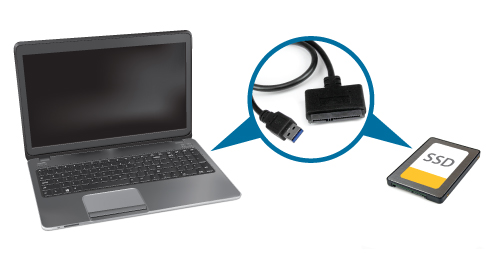

The USB3S2SAT3CB USB 3.0 to SATA adapter cable lets you connect a 2.5" SATA
hard drive or solid state drive to your computer through an available USB port
-- the easiest way to upgrade the hard drive in your laptop by adding an
external SSD via USB 3.0.
The cable supports UASP, allowing for transfer speeds up to 70% faster than
conventional USB 3.0, which enables you to utilize the full potential of your
SATA III SSD/HDD, when paired with a UASP-enabled host controller. See our UASP
testing results below for further details.
This portable adapter features a lightweight design with no external power
required, for easy storage in a laptop bag or carrying case. Plus, the
cable-style adapter makes it easy to swap between hard drives without having to
install your drives into an enclosure. Perfect for easy drive access for data
migration, drive cloning and data backup applications.
The USB3S2SAT3CB is backed by a StarTech.com 2-year warranty and free
lifetime technical support.
Improved Performance with UASP

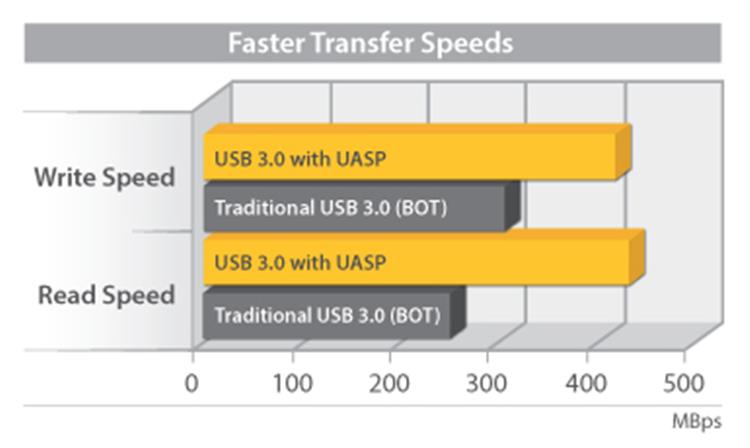

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In
testing, UASP performs with a 70% faster read speed and 40% faster write speed
over traditional USB 3.0 at peak performance.

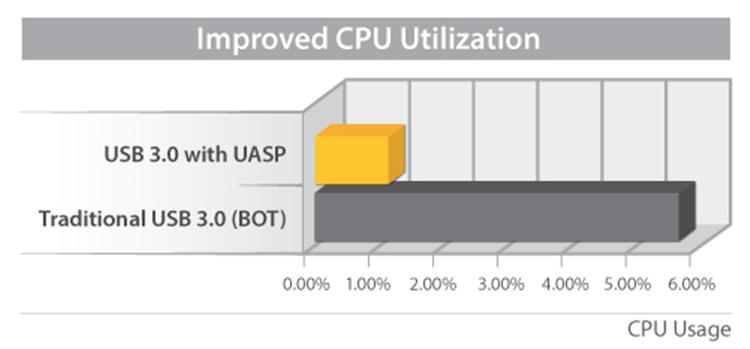

At the same peak in testing, UASP also shows an 80% reduction in required
processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a
UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
- Maximum portability with cable-style adapter, and no external power
adapter required
- Time-saving file transfers, up to 70% faster than traditional USB 3.0 when
used with a UASP-supported host
Specifications
| Warranty Information |
|
Warranty |
2 Years |
| Hardware |
|
Bus Type |
USB 3.0 |
|
Chipset ID |
ASMedia - ASM1153E |
|
Compatible Drive Types |
SATA |
|
Drive Size |
2.5in |
|
Fan(s) |
No |
|
Interface |
USB 3.0 |
|
Number of Drives |
1 |
| Performance |
|
4Kn Support |
Yes |
|
General Specifications |
Max power of the attached drive is 900 mA |
|
Max Drive Capacity |
Currently tested with up to 2TB 5900 RPM hard drives |
|
TRIM Support |
No |
|
Type and Rate |
USB 3.0 - 5 Gbit/s |
|
|
SATA III (6 Gbps) |
|
UASP Support |
Yes |
| Connector(s) |
|
Drive Connectors |
1 - SATA Data & Power Combo (7+15 pin) Receptacle |
|
|
1 - SATA Power (15 pin) |
|
Host Connectors |
1 - USB Type-A (9 pin) USB 3.0 Male |
| Software |
|
OS Compatibility |
OS independent; No software or drivers required |
| Special Notes / Requirements |
|
Note |
Cable will work only with 2.5" SATA drives
3.5"/5.25" drives are
not supported |
| Power |
|
Power Source |
USB-Powered |
| Environmental |
|
Humidity |
40%-85%RH |
|
Operating Temperature |
0C to 60C (32F to 140F) |
|
Storage Temperature |
-10C to 70C (14F to 158F) |
| Physical Characteristics |
|
Product Height |
0.4 in [9 mm] |
|
Product Length |
19.7 in [500 mm] |
|
Product Weight |
1.4 oz [41 g] |
|
Product Width |
1.9 in [49 mm] |
| Packaging Information |
|
Shipping (Package) Weight |
2.2 oz [61 g] |
| What's in the Box |
|
Included in Package |
1 - USB 3.0 to SATA 2.5" HDD Adapter Cable |
|
|
1 - Instruction Manual |
