Yealink W41P Wireless DECT Desk Phone

Yealink W41P DECT Desk Phone

The Yealink DECT desk phone W41P is a great complement to busineesses who have or need Yealink DECT solution. As a desk phone, it provides simplicity of use with familiar digital keypad as well as rich navigation and line keys. Information is available at a glance with vivid LED indicators and a 2.7� 192x64-pixel screen display on T41S. The integration of Yealink DECT dongle DD10K enables T41S to work concurrently with the Yealink DECT system as a handset (Yealink W60B suppports up to 8 DECT handsets in total)*. With deployment workload impressively reduced, it’s true plug-and-play.

Key Features of W41P

• Exceptional HD sound quality for every single conversation;
• 6 line keys with LED indicator for feature customization (e.g. one-touch speed dial and redial);
• Up to 100 phone book memory for easy contact management;

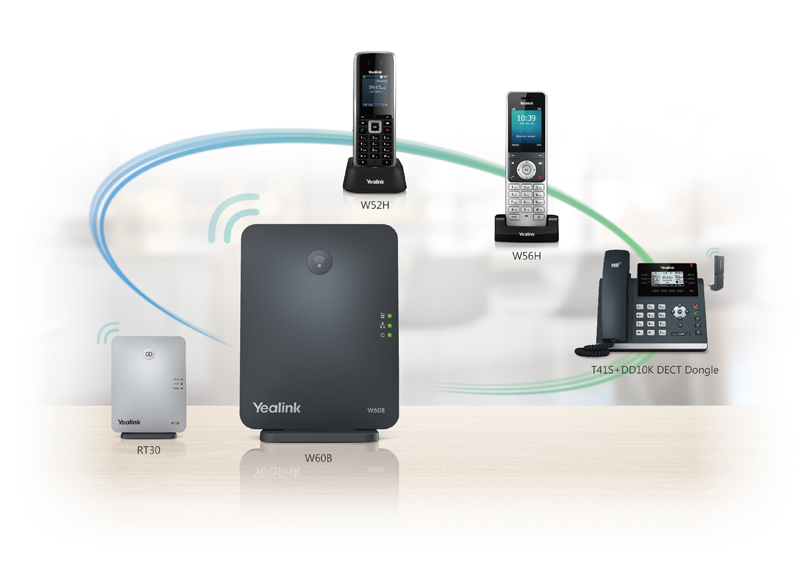

Yealink DECT Solution Ecosystem

The Yealink DECT phone solution enhances communication productivity and flexibility for on-the-move employees in various business segments. The new Yealiink DECT desk phone W41P is a package of T41S, W60B and DECT dongle DD10K; it offers the user a delightful interface and exceptional HD voice quality in addition to the ease of deployment that reduces IT department workload. It’s time to equip your office with Yealink’s scalable, feature-rich and HD DECT IP phone solution so that you can enjoy absolute flexibility in your business communications.

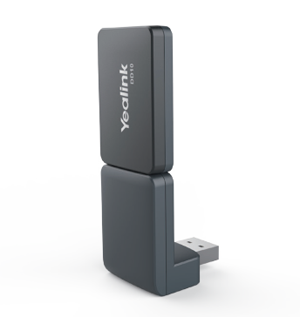

Yealink DECT USB Dongle

The Yealink DECT dongle DD10K enables T41S/T42S to work concurrently with theYealink DECT system as a handset after pairing with Yealink W60B DECT IP base station. Supported by a powerful transmission rate of 552kbit/s, this solution provides you with a quick and reliable DECT connection without wiring or cabling troubles, and gives you the privilege to enjoy wireless communications in minutes.

Bring Scalability to Cordless Communications

The launch of these new products is another step Yealink takes to complete its DECT IP phone solution, offering delightful user interface, exceptional HD voice besides the ease of deployment that reduces IT department workload. Customers from various business segments will be able to enjoy the scalability and flexibility of communication delivered by Yealink DECT Solution.

Specifications

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• DTMF
• Full-duplex hands-free speakerphone with AEC
• Wideband codec: Opus, AMR-WB (optional), G.722
• Narrowband codec: PCMU, PCMA, G.723, G.726, G.729, iLBC

Phone Features

• Up to 2 simultaneous calls per handset
• Intercom
• Switching between calls
• Speed dial, voicemail, silence
• 100 phone book memory (store in the base)
• Keypad lock
• Redial
• Call forward
• Call waiting
• Call transfer
• Call hold
• Mute
• DND
• 3-way conference call
• Direct IP call without SIP proxy
• Ring tone selection
• Emergency call
• Set date time manually or automatically
• Dsskey: Line , SpeedDial , Retrieve Park
• Visual voice mail > Anonymous call, anonymous call rejection

Directory

• Black list
• XML/LDAP remote phonebook
• Call history: dialed/received/missed

Display and Indicator

• 2.7" 192x64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Notification Light: voice mail and missed call is signaled via display and illuminated power indicator
• Dual-color (red or green) illuminated LEDs for line status information
• Multilingual user interface

Feature keys

• 6 line keys with LED
• 6 line keys can be programmed up to 15 paperless DSS keys (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “softâ€� keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• 2 x RJ45 10/100M Ethernet ports
• Power over Ethernet (IEEE 802.3af), Class 2
• 1 x USB port (2.0 compliant, connected to DD10K)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset por

Other Physical Features

• Stand with 2 adjustable angles
• Wall mountable
• External Yealink AC adapter (optional) : AC 100~240V input and DC 5V/1.2A output
• Power consumption (PSU): 1.3-3.0W
• Power consumption (PoE): 1.7-3.8W
• Dimension (W*D*H*T): 212mm*189mm*175mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management

• Phone lock for personal privacy protection
• Reset to factory, reboot

DECT

• Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards: CAT-iq2.0
• DECT Phone upgrade: Over-The-Air (only supported when connected to W60B)
• DECT Range: 50 meters indoor, 300 meters outdoor

Package Features

Package content:

• W60B Base Station
• Two Stands (one for W60B, the other for T41S)
• Two Power Adapters (one for W60B, the other for T41S)
• Two Ethernet Cables
• Quick Start Guides (W60B/T41S/DD10K)
• DD10K DECT Dongle
• Yealink SIP-T41S IP phone
• Handset with handset cord
• Wall Mount Bracket (Optional)

Giftbox size: 228mm*195mm*257mm
