Part Number |
45-489-026 (white) |
Description |

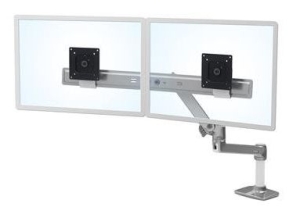

LX Desk Dual Direct Arm |
Includes |
LX Arm, extension, desk clamp, dual bow, (2) monitor pivots, 7" pole,
and monitor mounting hardware |
|
|
|
Streamline cable management that routes cables under arm and within
extension |
|
Portrait/landscape rotation with lockout |
|
Handle for Dual Direct Arm available as an accessory
(98–037–062) |
Mounting Standards |
VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm &5 x 75
mm) |
|
|
|
Grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up
to 3" (80 mm) thick |
Weight Capacity |
Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total
weight capacity = 4–22 lbs (1.8–9.9 kg) |
Note |
If installed on WorkFit-T or WorkFit-TL, maximum allowable individual
monitor weight is reduced to 4.8 lbs (2.2 kg). A separately order Grommet
Mount (98-017) is required for attachment |
Tilt Range |
15° backward, 15° forward |
|
|
|
Up to 24.3" (61.7 cm) extended reach |
|
‡ 13" (33 cm) vertical height adjustment with total monitor weight less
than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7
kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a
total height range of 8.5" (22 cm) |
|
** Maximum outside width of display is 25.1" (63.8 cm) when displays
are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm)
thick. Accommodates most displays with screen–size up to 25" as well as
some displays with screens as large as 27". Actual allowable width of
displays will vary slightly depending on display
thickness |
Shipping Dimensions |
32.8" x 13" x 7" (83 x 33 x 18 cm) |
Shipping Weight |
15.5 lbs (6.6 kg) |
|
|
