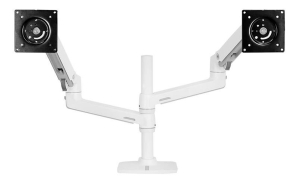

Ergotron LX Dual Stacking Arm Two-Monitor Mount (No Grommet) -
White
Durable steel and aluminum construction! Create a productive multi-display
configuration that lifts screens up to where they're easier to see while
reclaiming valuable worksurface.
Reposition your LCDs with just a touch. Up. Down. Forward. Back. The LX
provides unparalleled range of motion. Save time by using multiple applications
at once-eliminate toggling back and forth between documents and programs.
Product Benefits
- Frees up the desktop to increase workspace
- Easy to use: Simple installation and effortless operation
- Frees up the desktop to increase workspace
- Cable management feature routes cables under the arm, out of the way
- Easily turn one or both screens from landscape mode to portrait mode-view
entire pages without scrolling
- Passes Ergotron's 10,000-cycle motion test, which ensures years of
trouble-free height adjustment
- Patented Constant Force lift-and-pivot motion technology
SCREEN |
CAPACITY |
LIFT |
TILT |
PAN |
ROTATION |
VESA |
WARRANTY |
24" |
40lbs |
13" |
75° |
360° |
360° |
MIS-D |
10 years |
|
18.1kg* |
33.0cm |
|
|
|
|
|
Part Number |
45-492-216 |
Description |
LX Dual Monitor Arm, Stacking (white)
|
- Includes two (2) LCD arms and extensions, pole, desk clamp
- Can be configured to hold a laptop instead of an LCD display; also order
the Notebook Tray accessory (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring
years of trouble-free height adjustment
Improved LX Arm Features &efits
- Steel and aluminum construction offers greater durability and enhanced
aesthetics
- Snap-fit cap secures interface of arms to extensions for greater stability
New clamp and grommet mount base ensures greater stability of display and arm
- To facilitate stacking of monitors, maximum outside height of display can
be no more than 14" (35 cm). Most monitors with screens of 24" or less fit
within this specification. Larger screen sizes are allowable when positioning
displays side by side
Weight Capacity |
individual LCD weight = 7 to 20 lbs (3.2 to 9.1
kg) |
Mounting Standards |
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm &x 75
mm) |
|
Desk clamp attaches to edge up to 2.6" (66 mm)
thick |
|
A separately ordered grommet mount accessory (98-035) is available to
attach the arm through a hole in the desktop |
Shipping Dimensions |
19.25" x 15.25" x 9" (487 x 387 x 229 mm) |
Shipping Weight |
16lbs (7.2 kg) |
|
|
