Certifications |
|
|
Energy Conservation Certifications |
Energy Star |
|
|
|
|
Communications |
|
|
Communications Certifications |
USB v2.0 (Full Speed), RS-232C Serial, WLAN IEEE 802.11
b/g/n |
|
Communications Interface(s) |
USB (Mini), Serial, WLAN |
|
Communications Security |
WEP 64/128 bit, Enterprise 802.1x, LEAP(CKIP), EAP-FAST(TKIP/AES),
PEAP, EAP-TLS, EAP-TTLS, WPA/PSK (TKIP/AES), WPA2-PSK (AES), EAP (LEAP,
EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) |
|
|
|
|
Compatibility |
|
|
Operating System Compatibility |
Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit),
Windows Vista (32/64bit), |
|
|
Android v2.2 or later, iOS v6.0 or later, Windows Server 2012 R2,
Windows Server 2012, Windows Server 2008 R2, Windows Server 2008
(32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and
Debian |
|
Print Driver Compatibility |
Windows, Mac, Linux |
|
|
|
|
Consumables |
|
|
Compatible Tape Families |
HGe, TZe, HSe |
|
Compatible Tape Widths |
3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm |
|
Consumable Format |
Cartridge with Continuous Media |
|
Consumable Max Roll OD Size |
Not Applicable |
|
Consumable Roll Core ID Size |
Not Applicable |
|
Consumable Thickness |
Not Applicable |
|
Consumable Types |
Laminated Labels |
|
Media Width Max |
1.4" (36mm) |
|
Media Width Min |
0.14" (3.5mm) |
|
Tape Type‡ |
Laminated, Non-Laminated, Standard Laminated, Flexible ID, Extra
Strength Adhesive, Iron-On Fabric, Acid Free, Tamper Evident, Heat Shrink,
Stencil |
|
|
|
|
Dimensions |
|
|
Unit Dimensions (W x D x H) |
4.65" x 7.56" x 5.75" (118mm x 192mm x 146mm) |
|
Unit Weight |
3.33lbs. (1.51kg) without Tape, Battery Base and
Battery |
|
Carton Width |
6.9" |
|
Carton Height |
3.8" |
|
Carton Length |
7.5" |
|
Carton Weight |
6.03 lbs |
|
|
|
|
Environment Compatibility |
|
|
Operating Environment |
50°F - 95°F (10°C - 35°C) |
|
Storage Environment |
-4°F - 140°F (-20°C - 60°C) |
|
|
|
|
General |
|
|
Available Color(s) |
Black |
|
Available Memory |
6MB |
|
Channel Protected |
No |
|
Flash Memory |
6MB |
|
Media Exit Features |
Cutter |
|
Media Feed Features |
Cartridge |
|
RAM |
Not Published |
|
User Interface |
3 Switches (Power, Feed/Cut, WiFi) 4 LEDs (Power, Status, Battery,
WiFi) |
|
|
|
|
Power |
|
|
Battery Charge Time |
6 Hours |
|
Battery Life |
300 Cycles |
|
Battery Requirements |
Rechargeable Li-ion Battery (PA-BT-4000LI) |
|
Battery Yield |
20 Tapes |
|
Power Management |
Auto Power On/Off |
|
Power Source Options |
AutoRanging Power Supply, Replaceable Rechargeable Battery
(Optional) |
|
Power Supply |
24VDC 2.65A (AD-9100ESA) |
|
|
|
|
Print |
|
|
Print Resolution |
360 dpi |
|
Print Speed |
2.4ips (60mm/sec) |
|
Print Technology |
Laminated Thermal Transfer |
|
Print Width Maximum |
1.26" (32mm) |
|
Printer Type |
Desktop |
|
|
|
|
Print Features |
|
|
2 Dimensional Barcodes |
PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR
Code |
|
Bitmap Fonts |
Helsinki, Letter Gothic |
|
Borderless Printing‡ |
No |
|
Emulations |
Raster, ESC/P, P-touch Template |
|
Linear Barcodes |
Code39, Code93, Code128, ITF(I-2/5), UPC-A, UPC-E, EAN-8, EAN-13,
GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Codabar (NW-7), Industrial
2of5, Postnet |
|
Media Sensor Types |
Not Applicable |
|
Outline Fonts |
Helsinki, Brussels, Letter Gothic, |
|
Print Commands |
Raster, ESC/P, P-touch Template |
|
Stored Templates |
Up to 99 templates |
|
|
|
|
What's Included |
|
|
Carton Configuration |
Printer |
|
Carton Contents |

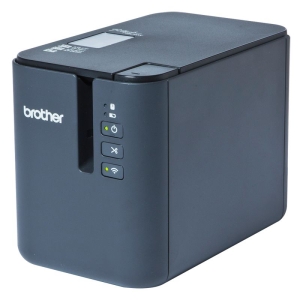

PT-P900W Label Printer, TZeS251 Tape (8m), USB Cable, AC Adapter
(AD-9100ESA), Power Cable, Printed Guides, Software (Brother Solutions
Center) |
|
Warranty Extension |
0 |
|
Warranty Length |
2 |
|
Warranty Type |
Standard |
