All stock codes associated to this product
C6A-20-Blue-SH, C6A20BlueSH, C6A20BLUESH, C6A-20-BLUE-SH, 5556165, 9350784003492

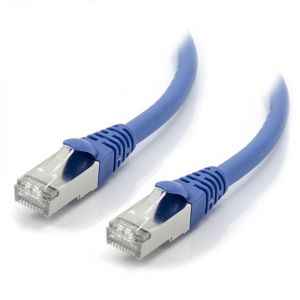

Alogic CAT6A Shielded LSZH Network Cable - 20m, Blue
ALOGIC CAT6a shielded snagless patch cables come in 10 different colours and
a range of lengths from 0.5m to 30m, which lets you colour code your
installation.
Connect Your Ethernet Devices
ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed
the requirements for the next generation 10GBASE-T applications. The ALOGIC
CAT6a cabling system provides an End to End solution that provides a guaranteed
750 Mhz of usable bandwidth. The ALOGIC CAT6a solution consists of
Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk
Installation Cables.
- Performance rated for 750 MHz bandwidth.
- Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast
Ethernet, &ower.
- Each twisted pair in the cable is individually wrapped in aluminum foil
Mylar (100% Coverage).
- Overall Copper Braided Shielded.
- Comes with LSZH (Low Smoke Zero Halogen) Jacket.
- Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8
(RJ45) plugs.
- Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE
performance up to 100mt.
Specifications
|
Compliance |
A-Tick, ETL, UL, IEEE, RoHS Compliant |
|
|
|
|
Input |
8P8C (RJ45) |
|
Wiring Scheme |
T568A |
|
Standard |
Category 6a TIA/EIA-568C-2.1 |
|
Connector |
50 micron gold-plated RJ45 |
|
Temperature Rating |
75C |
|
Voltage Rating |
30V |
|
Jacket |
LSZH (Low Smoke Zero Halogen) |
|
Conductor Type |
26AWG (7/0.16), Stranded Bare
Copper |
