All stock codes associated to this product
CB-C6A-30WHT, CBC6A30WHT

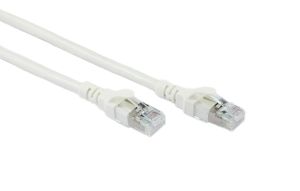

30M White CAT6A SSTP/SFTP Cable
Product DescriptionCAT6A ( CAT6
Augmented ) cable is an ideal solution for 10G network. It supports the
higher frequencies required for 10G Ethernet and fully backwards
compatible with CAT6 and CAT5e. All of our CAT6A cables are double
shielded and fully screened to ensure immunity from Alien Crosstalk and
other external interference and are specified up to frequencies of
500Mhz.
SSTP (Screened Shielded Twisted Pair) or SFTP (Screened
Foiled Twisted Pair) cabling offer shielding between the pair sets and
an overall sheath shield within the 100 Ohm twisted pair cable. This
type of shielding protects EMI from entering or exiting the cable and
also protects neighboring pairs from crosstalk.
Standards
- Australian Approval N18767
( ACMA Lab fully tested and Approved )
- ANSI/TIA 568C.2 Approval
- UL Approval UL444
- ISO/IEC60332-1 Approval
- ISO/IEC60332-3 part 24 Approval
- ISO/IEC 11801 Approval
- EN50288-4-2, EN50173 Approval
Specifications
- Meets all augmented CAT6A TIA-568-C.2 requirements
- Ideal Cable for 10 Gigabit Application
- High Performance Data Communication Cable
- Guaranteed Performance up to 500Mhz
- Fully screened for alien crosstalk immunity
- Fully shielded construction virtually eliminates ANEXT
- Fire Resistant/Flame Retardant PVC Jacket
- Plugmaster 50u gold-plated and shielded CAT6A connectors
- Pass Fluke DSX-4000 test
Construction Facts
- Cable features four individually aluminum/Mylar wrapped twisted
pairs, and an overall tinned copper braided shield, foamed PE
insulation, and an FR PVC jacket
- 26AWG stranded copper conductors
- specially designed RJ45 shielded plug with 50u gold-plated contact
- snagless designed boot provides tab protection
Applications
10GBase-T ( IEEE 802.3an)
1000Base-TX ( TIA/EIA-854)
1000Base-T ( IEEE 802.3ab)
100 Base-TX ( IEEE 802.3u)
10base-T ( IEE 802
