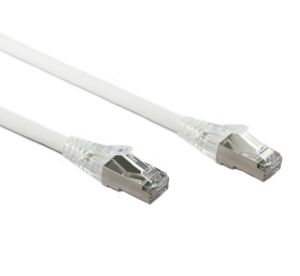

CB-LZC6A-10WHT | Konix CAT6A SFTP Cable LSZH ( Component Test ) - 10M - 10GbE

CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.

SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighboring pairs from crosstalk.

Standards

• Australian AS/CA S008:2010 Approval N18767
• ANSI/TIA 568C.2 Approval
• UL Approval UL444
• ISO/IEC60332-1 Approval
• ISO/IEC60332-3 part 24 Approval
• ISO/IEC 11801 Approval
• EN50288-4-2, EN50173 Approval

Specifications

• Meets all augmented CAT6A TIA-568-C.2 requirements
• Ideal Cable for 10 Gigabit Application
• High Performance Data Communication Cable
• Guaranteed Performance up to 500Mhz
• Fully screened for alien crosstalk immunity
• Fully shielded construction virtually eliminates ANEXT
• LSZH Jacket
• Plugmaster 50u gold-plated and shielded CAT6A connectors
• Fluke DSX-5000 Component tested

Construction Facts

• Cable features four individually aluminum/Mylar wrapped twisted pairs, and an overall tinned copper braided shield, foamed PE insulation, and a LSZH Jacket.
• 26AWG stranded copper conductors
• specially designed RJ45 shielded plug with 50u gold-plated contact
• snagless designed boot provides tab protection
