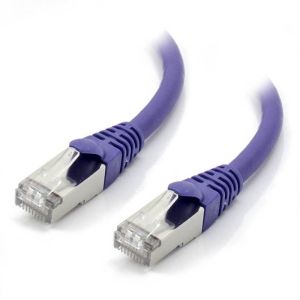

Alogic 10GbE Shielded CAT6A LSZH Network Cable - 0.5M, Purple
Description
ALOGIC Cat6A shielded network cables are designed to meet and exceed the
requirements for the next generation 1 GBASE-T applications. The ALOGIC Cat6A
cabling system provides an End to End solution that provides a guaranteed 75 Mhz
of usable bandwidth. The ALOGIC Cat6A solution consists of Pre Terminated
Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation
Cables.
Features
- Performance rated for 750 MHz bandwidth
- Suit for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast
Ethernet, &wer
- Each twisted pair in the cable is individually wrapped in aluminum foil
Mylar (100% Coverage)
- Overall Copper Braided Shielded
- Comes with LSZH (Low Smoke Zero Halogen) Jacket
- Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8
(RJ45) plugs
- Snag-free strain relief molded boot provides secure and accurate
connection
- Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE
performance up to 100mt.
- Lifetime Warranty
- A-Tick Complaint as per ACMA requirement
- ETL verified to TIA/EIA-568C.2.1 Category 6a
- Complaint to IEC 802.3an standards &O/IEC 11801
- UL Approved
Specifications
|
Vendor |
ALOGIC |
|
Wiring Scheme |
T568A |
|
Standard |
Category 6a TIA/EIA-568C-2.1 |
|
Connector |
50 micron gold-plated RJ45 |
|
Temperature Rating |
75C |
|
Voltage Rating |
30V |
|
Approvals |
A-Tick,ETL,UL,IEEE,RoHS Compliant |
|
Warranty |
Lifetime |
|
Package Type |
Polybag |
|
Jacket |
LSZH (Low Smoke Zero Halogen) |
|
Connector Type |
8P8C (RJ45) |
|
Conductor Type |
26AWG (7/0.16), Stranded Bare
Copper |
