Netstor NA265A-XGPU-R Elite Rackmount GPU
Enclosure
Overview
Elite Rackmount GPU Enclosure
NA265A is a professional-grade 19" rackmount GPU enclosure that works
perfectly with host PC, server or workstation. Through the adding of the
rackmountable NA265A GPU expansion enclosure, even the space-limited 1U or 2U
server can be transformed into a high-performing workstation or supercomputing
for the modern ultra fast processing center.

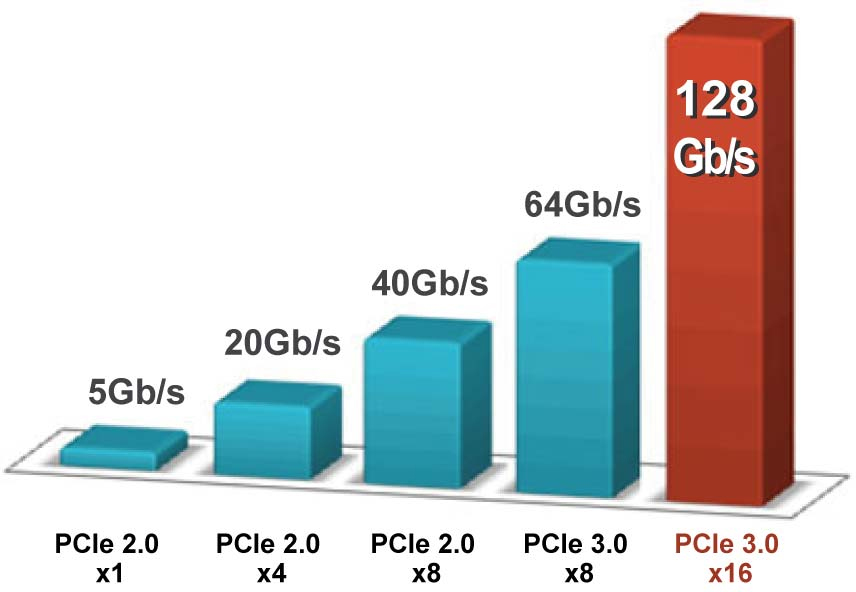

128Gbps Bandwidth – PCIe Gen3 x16
The Netstor NA265A GPU enclosure implements the latest PCIe 3.0 technology
and PCIe Gen3 16-lane host interface with throughput 8Gbps per lane, offering
blazing-fast data transfer rates up to 128Gbps between host and expansion
enclosure, dedicated for GPU-accelerated applications.

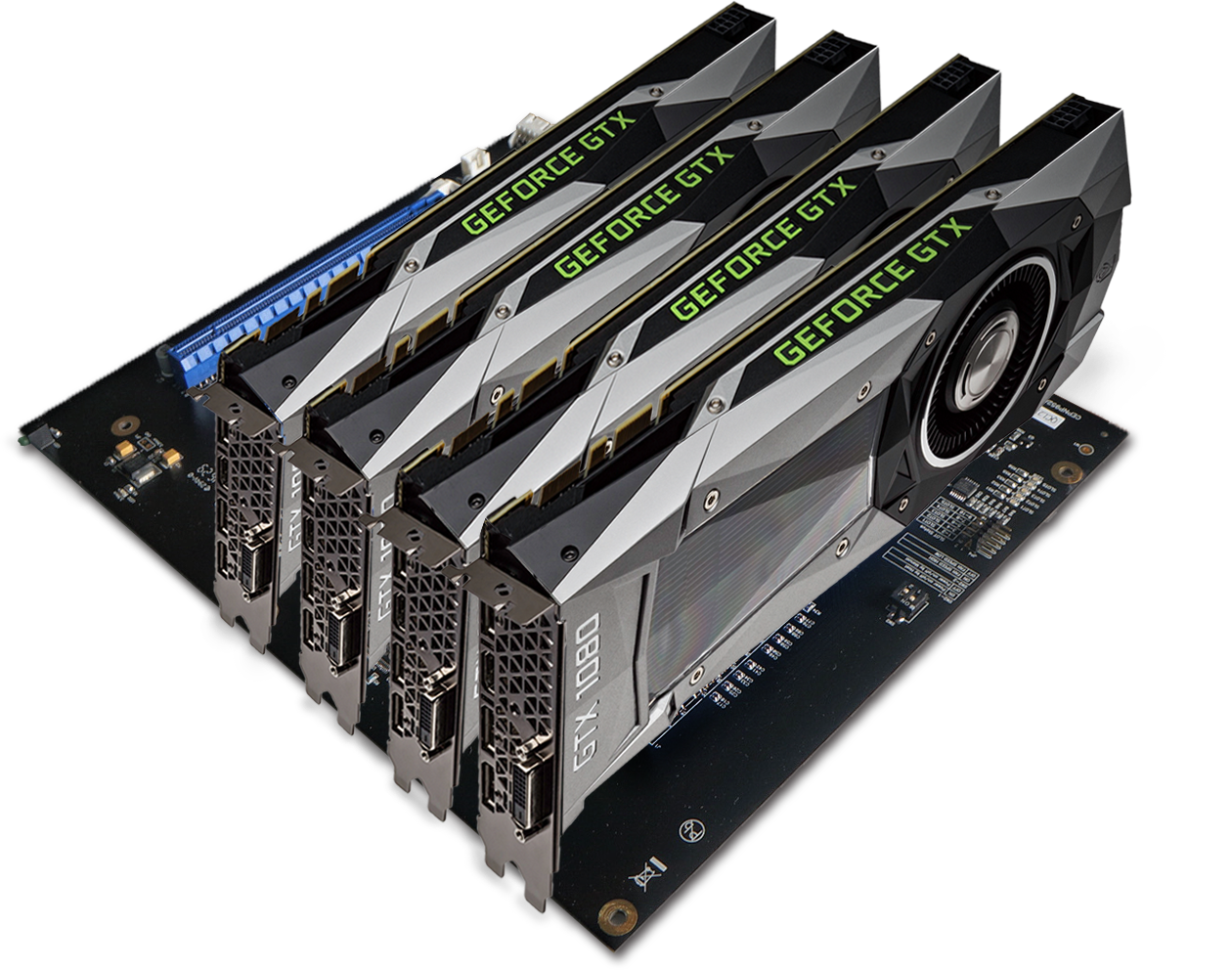

Up to 4 Dual-Width GPU Cards
The GPU enclosure is designed to have 4 PCIe x16 slots (x8 electrical)1 on
NA265A backplane supporting up to 4 double-width PCIe Gen3 GPU cards, or
single-slot PCIe cards. In addition, the enclosure can accommodate all
combinations of PCIe 3.0 ×1, ×4, ×8 and ×16 GPU/PCIe cards for every application
with backward compatibility for Gen2 cards to work with host, server or
workstation in areas such as HPC, telecom, and data centers.
Great Sufficient Powering
- 1200 WPSU
- 80 PLUSGold
- 6+2 pinPCI-E cables
Dedicated Single 1200W or Redundant 1350W PSU
Newest high-end or enthusiast GPU cards generally require high power wattage
for work; in light of the hi-power requirement condition, Netstor has
considerately planned a dedicated, high-efficient single 1200W PSU in NA265A GPU
enclosure to allow up to 4 high-performing graphics cards for processing, or a
redundant 1350W PSU in rackmount enclosure to allow NA265A to be deployed at
cabinet room with ultimate reliability and stability.
Supplementary 6+2 pin PCI-E Power Cables
Netstor NA265A GPU enclosure has been thoughtfully designed to provide extra
PCI-E power cables to meet each GPU card's supplementary power requirement.
Furthermore, any combinations of 6-pin and 8-pin PCI-E power connectors on every
graphics card are supported by NA265A.
High-Performance Computing
Traditional host computer or workstation only has CPU and regular GPU to work
with professional applications. However, these conventional data processors
cannot even provide a higher processing to meet modern working demands. Hence,
by adding the Netstor NA265A GPU enclosure with up to four high-end GPU cards to
your host/workstation can let your conventional host computer turn into a
supercomputing or high-performance computing workstation.
Computational Finance
GPU acceleration from Netstor NA265A offers financial service organizations
the capability to speed up their business processing and provide better
analytics. High-end GPUs within NA265A allow complicated risk calculations at
the trader level to run in seconds, allowing real-time risk to be business as
usual. Value at Risk, Counterparty Risk, and Initial and Lifetime Margining
calculations are the types of calculations benefiting from NA265A GPU
processing.
Data Science
Increasing number of data scientists are using multiple high-end graphics
cards in Netstor GPU enclosure for large data analytics to make better and
real-time business decisions. Typical application case in big data analytics
includes machine learning, deep learning, search, and sorting.
Medical Imaging
Medical imaging takes the advantage of multi-GPU computing to get
acceleration. Common use case in medical imaging covers accelerating Advanced
MRI Reconstruction and Computed Tomography (CT) Reconstruction. The use of
multiple high-end graphics card with Netstor GPU enclosure in this field is
matured and there have been many such applications in the medical area.
Numerical Analytics
Professionals can use specialized tools such as MATLAB, Mathematica, and
LabView…etc. through the utilization of multi graphics cards in Netstor GPU
enclosure for accelerating the numerical analytics computing. Reliable
statistics show computing capability of multi-GPU is more than ten times faster
than CPU alone.
Outstanding, First-Rate CFM Airflow
NA265A is designed with three front large 9x9 cm cooling fan modules with
each fan supporting 51 CFM (153 CFM for all), providing best airflow ventilation
to enclosure for most excellent heat dissipation ever, and ensuring graphics
cards within chassis running long term without any high temp concern. Moreover,
the fan speed of each cooling fan can be adjusted manually according to GPU
application situation within NA265A chassis.
Perfect Graphics Cards Compatibility
The Nvidia and AMD GPU cards that are compatible and work greatly with
Netstor NA255A enclosure include Nvidia GeForce 10 / 900 series, Quadro P6000 /
M6000 series and AMD Radeon RX, R9 series, FirePro W9100 / 9000 series.
Specifications
Form
Factor |
4U
Rackmount |
Host
Interface |
Up
to 128Gb/s external PCIe 3.0 x16 |
No.
of Slot |
4*
PCI Express 3.0 x8 (x16 connector) |
Card
Length Available |
Supports
full length,full height PCI Express Cards |
LED
Display for Enclosure |
Power-On
LED - Blue |
|
FAN
normal – green; Fan failure – Red |
|
TEMP
normal – green; TEMP Over 55°C – red |
Cooling |
Front:
Three 90x 90x 25 mm cooling fans |
|
51
CFM each fan @ full speed |
Alarm |
Buzzer
beeping for fan failure or over temperature (over 55°C)
occurs |
Material |
Solid
heavy-duty cold-rolled steel housing |
Power
Supply |
|
Model
|
NA265A-XGPU-R
Universal Redundant 1350W (Server-grade) |
Input |
90~230
VAC/50-60 HZ |
|
12V
@ 98A |
Dimension |
448
(D) x 482 (W) x 177 (H) mm |
|
17.6
(D) x 19 (W) x 7 (H) inch |
O.S.
support |
OS
Independent |
Host
Requirement |
One
PCIe 3.0 x16 slot and system has sufficient PCIe
resources |
|
Note: |
|
1.
The tower MacPro under 10.9 Mavericks and 10.10 Yosemite only supports up
to 2 nVidia GPU cards. |
|
2.
Now the tower MacPro under 10.11 El Capitan is able to support up to 3
nVidia GPU cards again. |
Accessories |
|
Model
No. |
|
NA265A-XGPU-R |
4U
Rackmount PCIe Gen3 Expansion Enclosure, 1350W(2+1) Redundant Power Supply
with extra 8* |
|
PCIe
connectors 6+2 pin for up to 4 double width GPU cards, with one PCIe Gen3
x16 host adapter and two PCIe x8
cables |
