All stock codes associated to this product
WaveV2, Wave V2, CADWAVEV2, CAD-WAVE-V2, 6933412713050

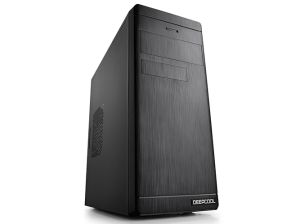

Deepcool Wave V2 Micro-ATX PC Case
Features
- Classic MATX case with elegant front panel design.
- 1x USB 3.0 + 2x USB 2.0 ports.
- All-black painted interior with 0.5 mm-thick panels.
- Accommodates graphic cards with a length of up to 320 mm.
- Support cable management.
Overview
Description

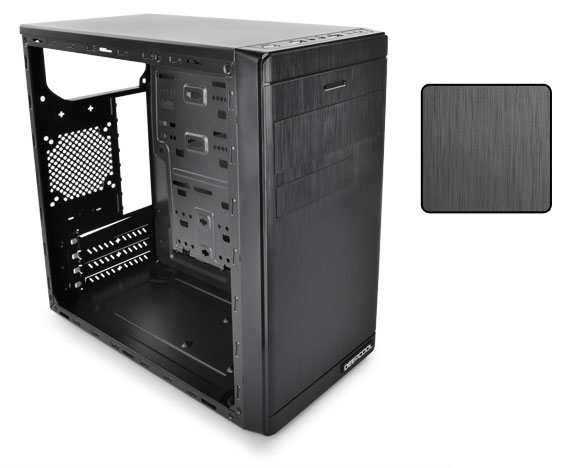

WAVE V2 is a Micro ATX case designed with maximum compatibility in mind.
Small size (390 x 217 x 435 mm) makes WAVE V2 the ideal choice for gamers or DIY
enthusiasts who are looking for computer cases that actually fits in their
limited space. Unique surface treatment provides an elegant and minimalist
visual.
Space Contracted Design
Classical Small Case Management
- Unique surface treatment provides an elegant and minimalist visual.
- Case dimensions of 390 x 217 x 435 mm.
- Support VGA card installation up to 320 mm length.

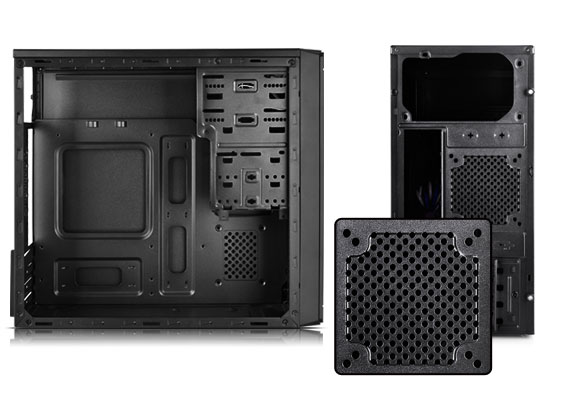

Good Heat Ventilation Performance
Optimized Airflow Design & Cooling System
- 1x 120 mm fan mounting ports on the front panel.
- 120 mm and 90 mm/80 mm mounting ports at the front / rear panel.
- Enhanced cable management to achieve orderly interiors.

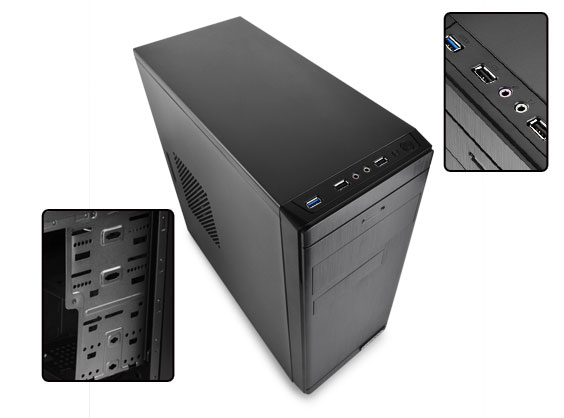

Details:
Attachable 5.25-inch and 3.5-inch drive bay covers.
1x USB 3.0 + 2x USB 2.0 ports.
Specifications
|
Motherboards |
MATX/MINI-ITX |
|
Materials |
SPCC+PLASTIC
(ABS) (Panel thickness: 0.5mm) |
|
Dimension
(LxWxH) |
Product:
L387*W175*H353.5mm (Package: L390*W217*H435mm) |
|
Net
Weight |
3.2KG
(Gross Weight: 3.8KG) |
|
5.25"
Drive Bays |
1
(External) |
|
3.5"
Drive Bays |
3
(1 external, 2 internal ) |
|
2.5"
Drive Bays |
3
(internal) |
|
I/O
Panel |
1×USB3.0/2×USB2.0/Audio×1/Mic×1 |
|
Expansion
Slots |
4 |
|
Cooling
Fans |
Optional:
Front: 1×120mm fan side: 1×120mm, Rear: 1×80/90mm |
|
Power
Supply Type |
ATX
PS2 |
|
CPU
Cooler Compatibility |
145mm
height /Liquid Cooler: 120mm at front |
|
VGA
Compatibility |
320mm |
|
EAN |
6.93341E+12 |
|
P/N |
DP-MATX-DPWAVE2 |
