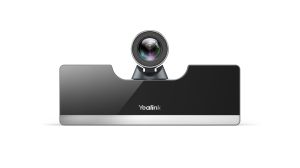

Yealink VC500 Video Conferencing Endpoint - 1920 x 1080, 5x Optical Zoom, HDMI, RJ45(2), USB2.0(2)

IMG 1 of 1
Our Price:
$4,213.75
or quickly purchase this product
Backorder
Part Number:
435256
(?) Brand:
Yealink
Manuf No:
VC500
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VC500

Yealink VC500 Video Conferencing Endpoint



Overview

  • Wide-angle Lens
  • Fits on TV
  • H.265 / HEVC
  • 1080P / 60FPS
  • Touchable Phone

Yealink VC500 is ideally designed to ensure everyone to have an immervise communication in the workspace. Equipped with the 5x optical zoom PTZ camera, it supports 1080P/60FPS video calls to make your business discussion be as life-like and interactive as possible. It possesses an all-in-one design and the first-class video and audio technology that create an easier and more effective collaboration experience. As the newest generation of Yealink VC series video conferencing endpoints, the VC500 adopts an intuitive user interface that makes meeting control simpler. Featuring H.265/HEVC, Opus and HD voice backed by Harman speaker, this new release facilitates more immersive audio-visual collaboration. By leveraging Yealink Meeting Server(YMS), the VC500 seamlessly supports Meeting Scheduling and One-touch Meeting Access. All combine to make VC500 one of the perfect solution for the small-to-medium meeting rooms.

Immersive Audio-Visual Experience

Using a new 5X optical PTZ camera, VC500 supports 1080P/60FPS video calls without distortion, thus greatly enhancing the fluency of video conferencing and making the presentation more vivid even in details. Its wide-angle lens, which provides an expanded 83° horizontal field of view, brings everyone in view without adjusting the camera. In one package, it co-works with Yealink conference phone CP960 to create a better audio solution which is backed by Harman speaker, Opus codec and Yealink Noise Proof technology; and in the other package, it is equipped with two wireless microphones, providing 20ft/360° voice pickup distance without any wiring troubles, providing you a distance-free communication without any cables restriction.

Easier Meeting Experience, Simpler Deployment

Yealink VC500 owns all-in-one design which combines codec and camera together, only one standard RJ45 network cable could connect TV area and conference table, saving more time and space for better communication. Meanwhile, it fits easily and seamlessly on the TV with thickness from 1mm to 77mm, making your meeting room clutter-free. Moreover, its 5-inch touchable VCS phone makes the meeting joining and meeting control simpler and more intuitive, and its friendly TV-style user interface helps you minimize the learning cost.

Less Bandwidth, Better Network Adaptability

Via supporting H.265/HEVC video codecs, just with the minimum 512kbps, 1080P HD video calls can be realized, thus saving more than 50% bandwidth than using H.264. Thanks to Yealink anti-packet loss technology, VC500 can resist up to 30% video packet loss which guarantees smooth video communication.

Wider Compatibility, Deeper Integration

Yealink VC500 supports standard H.323/SIP dual protocol as well as RS-232/HTTP API and VISCA/PELCO. It is not only deeply integrated with Yealink Meeting Server(YMS), supporting Meeting Scheduling and One-touch Meeting Access; but also worked with Yealink Cloud Management Service (VCMS), bringing quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms, like StarLeaf, Zoom, BlueJeans, Mind, etc.

  • 1080P/60FPS and 5x optical PTZ camera
  • 83° horizontal field of view
  • H.265/HEVC video codec, 1080P from 512Kbps bandwidth
  • Super video packet loss recovery technology, resist up to 30%
  • Two HDMI output and two HD content input (HDMI + Mini-DP)
  • VC500-Phone package: 5-inch touchable conference phone with Harman speaker
  • VC500-Wireless Micpod package:Two wireless microphones

Deeply integrate with leading cloud platforms:

  • Yealink Cloud Management Service (VCMS),
  • Yealink Meeting Server, StarLeaf, Pexip, Mind,
  • Zoom and BlueJeans

Specifications

Package includes:

VC500 Codecintegrate camera

CP960 Conference Phone with 2 Wired Expansion Mics Or 2 × Wireless Microphones with DD10 DECT Dongle

Cable Hub VCH50

Remote Control VCR11

Cable Bundle

Full-HD PTZ Camera

1920 x 1080 video resolution

60 frame rate (VC500 Pro)

5x optical zoom PTZ camera

Horizontal field of view: 83°

Vertical field of view: 52°

Pan angel range: +/- 30°

Tilt angel range: +/- 20°

Beauty shot

Video Standard and Network Suitability

Video codecs: H.265/HEVC (VC500 Pro), H.264 High Profile, H.264, H.263

Forward Error Correction (FEC)

Anti 30% video packet loss

Bandwidth dynamic adaptive adjustment

Shared content and audio preference strategy

Bandwidth/protocol/ auto adaptive

Audio Features

Audio codecs:

Opus, 8~48kHz sampling rate

14kHz bandwidth with G.722.1C

7kHz bandwidth with G.722.1

3.4kHz bandwidth with G.711 (PCMA/PCMU)

Audio technology:

Acoustic echo cancellation

Automatic gain control

Yealink Noise Proof Technology

CNG, PLC, AJB, DeRerb

VCS Phone CP960 (VC500-Phone)

Built-in 3-microphone array

20ft/360° voice pickup range

2 x CP Wired Expansion Mic

Harman speaker

5-inch touchscreen with 1280*720 resolution

CPW90 Wireless Microphone KIT (VC500-Wireless Micpod)

DECT Technology

800mAh battery capacity

24-hour talking time

12-day standby time

Indoor range: 50m

Outdoor Range: 300m (in ideal conditions)

10-foot (3-meter) 360° voice pickup

Mute the microphone with touchpad

Call Features

1080p60 people + 1080P30 content sharing

video quality

Video Layout: Picture-in-picture (PIP)

Video/audio recording and playback

Dual displays and ‘focus’ feature

Screenshots in USB flash drive

Group dial

YMS meeting control:

invite/remove

mute/unmute participates

lock

DND (do not disturb), call statistics

Auto answer, mute, and call waiting

Virtual keyboard

Local directory: 500 entries

Call history: all/missed/received/dialed

LDAP phonebook

Multi-language support

Additional five-way audio call

Standard Communication Protocol

H.323/SIP

Dual stream protocol: H.239 (H.323)/BFCP (SIP)

FECC: H.224/H.281, Sony VISCA and PELCO D/P

H.323 protocol suite: H.245, H.225, H.235, H.241

Gatekeeper account and SIP account

Compatible Cloud Platforms

Yealink Cloud Management Service

Yealink Meeting Server

StarLeaf/UC OpenCloud, supports QCP code

Pexip/Mind/Zoom/BlueJeans

Network and Security Features

IPv4 and IPv6, DHCP/static IP

HTTP/HTTPS web server

RS232/HTTP API for control system integration

SRTP/TLS, AES 128-bit encryption

QoS: 802.1p/q, Diff-serv

VLAN, IEEE802.1X, LLDP-MED

Anti-attack

Network diagnosis: Ping, trace route

Time and date synchronization using SNTP

Built-it certificate

NAT and Firewall Traversal

ICE/TURN/STUN

H.460

NAT (manual/auto mode)

Yealink intelligent firewall traversal

Open VPN

Configuration Management

Configuration via

browser/display/auto-provisioning

Virtual remote control

Firmware upgrading, factory resetting

Export or import configuration

System log exporting

VC500 Codec Connections

2 x HDMI output

1 x Yealink extension port (RJ-45) connect to

VCH50 /CP960 Phone

1 x 10/100/1000M Ethernet port

2 x USB 2.0

1 x Power port

1 x Security lock slot

1 x Reset slot

VCH50 Connections

1 x RJ45 port connect to VC500 codec

1 x RJ45 port connect to CP960

1 x HDMI input for content sharing

(with audio)

1 x Mini-DP input for content sharing

(with audio)

1x USB 2.0 for recording

Other Physical Features

External Yealink Power Adapter:

AC 100~240V input and DC 48V/0.7A Output

Wall/TV mounted shelf with screws

Power consumption (PSU):

Idle7.8W, normal operating: 8W; MAX: 11.8W

Dimension (W.D.H):

- VC500 codec: 300 mm x 99 mm x 165.3 mm

- CP960: 338mm x 338mm x 74mm

- VCR11: 190mm x 55mm x 24mm

Operating humidity: 10~95%

Operating temperature: 0~40°C

Storage temperature: -30~70°C

Package Features

N.W/CTN

6.6 kg

G.W/CTN

7.8 kg

Giftbox size

385mm x 290mm x 245mm
