All stock codes associated to this product
TL-PA8033P KIT, TLPA8033P KIT, TLPA8033PKIT, TL-PA8033PKIT, NWTLPA8033PKIT, NWTL-PA8033PKIT, 6935364086190, 6935364084004

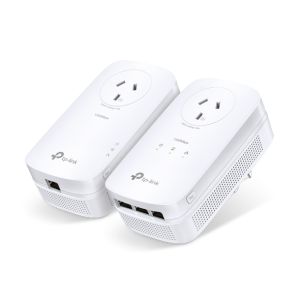

Tp-Link TL-PA8033PKIT Powerline
Adapters
Features
- AC1350 – Dual band Wi-Fi with combined speeds of up to 1350Mbps
- HomePlug AV2 – Provides ultra-fast powerline transfer speeds of up to
1300Mbps
- 2X2 MIMO – Establishes multiple simultaneous connections for you to enjoy
higher powerline speeds and greater stability
- Wi-Fi Clone Button – Automatically copies the network name (SSID) and
password of your main router with the touch of a button
- Auto-Sync – Add additional extenders to your powerline network by pair
button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED
Schedule for all network devices
- Extra Power Socket – Get power from the outlet for your other devices with
the integrated power socket
Overview
Enjoy Excellent Wi-Fi Coverage Throughout Your Home
Expand your Wi-Fi network using your home’s existing powerlines. Plug in the
TL-WPA8630P to transmit an internet connection to any area in your home and
share that connection with all of your favorite wired and wireless devices. A
unified network keeps your connection stable, even as you move around the house.
2X2 MIMO with Beamforming
More Stable Connections
2X2 MIMO is like adding extra lanes to a highway. It establishes multiple
simultaneous connection for you to enjoy higher speeds and greater stability.
Expansive Coverage
2X2 MIMO with Beamforming Technology also offers the benefit of improved
coverage throughout the home, particularly for previously hard to reach outlets.
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing
the Wi-Fi Clone button instantly copies your network name and password from your
router for easy setup. Wi-Fi Move automatically applies any settings changes
across the network. Your existing Wi-Fi settings will be synchronized to the new
extender automatically.
Plug, Pair and Play
- Plug the TL-PA8010P in the wall and connect it to the router with an
Ethernet cable. Then plug the TL-WPA8630P in any desired power outlet.
- Press the ‘Pair’ buttons on both adapters to create a secure network.
There you go! Just enjoy the seamless, high speed wired and wireless
network.
Extra Power Socket
The integrated power socket (up to 16A*) means that you can still get power
from the outlet for your other devices. Just plug your device into the
integrated socket the same way you would with a normal wall outlet. Moreover,
the built-in noise filter helps to eliminate electrical signal noise that might
otherwise affect powerline transmission performance.
More Gigabit Ethernet Ports, More Devices
Equipped with three gigabit Ethernet ports, the TL-WPA8630P allows you to
provide wired Internet connections for your high performance devices, including
PCs, game consoles, smart TVs, and media receivers. To start enjoying high-speed
access on all of your favorite devices, simply plug them into the TL-WPA8630P
using standard network cables. Now you can easily add devices to your network
and get more from your Internet connection.
Distracted by Blinking LEDs?
You can easily turn off the LED indicators by pressing the LED On/Off button
or control them remotely using the tpPLC App on your mobile device or the tpPLC
Utility on your computer.
Specifications
HARDWARE
FEATURES |
|
Plug
Type |
AU |
Standards
and Protocols |
HomePlug
AV2, IEEE 1901,IEEE 802.3, IEEE 802.3u |
|
IEEE
802.11b/g/n 2.4GHz, IEEE 802.11a/ac 5GHz |
Interface |
3
* Gigabit Ethernet Port, Power Socket |
Button |
Pair,
Reset, LED On/Off, Wi-Fi Clone |
Power
Consumption |
Maximum:
10.8 W (230V/50Hz) |
|
Standby:5W
(230V/50Hz) |
LED
Indicator |
Power,
Powerline, Ethernet, 2.4G Wi-Fi, 5G Wi-Fi |
Dimensions
( W x D x H ) |
TL-WPA8630P6.0
x 3.0 x 1.7 in. (152 x 75 x 42mm) |
|
TL-PA8010P5.2×2.8×1.7
in. (131×72×42 mm) |
Range |
300
meters in house |
SOFTWARE
FEATURES |
|
Quality
of Service |
ToS |
|
Supports
up to 4-level type QoS |
|
Support
up to 8-level VLAN priority field |
Security |
128-bit
AES Encryption |
Modulation
Technology |
OFDM |
IGMP |
IGMP
v1/v2/v3 |
OTHERS |
|
Certification |
CE,
RoHS |
Package
Contents |
AV1300
Passthrough Powerline ac Wi-Fi Kit: TL-WPA8630P &
TL-PA8010P |
|
2-meter
CAT.5e Ethernet Cable * 2 |
|
Quick
Installation Guide |
Box
Dimensions (W X D X H) |
9.1
x 7.5 x 3.9 in. (230x190x100 mm) |
System
Requirements |
Windows
10/8.1/8/7/Vista/XP, Mac OS, Linux2 |
Environment |
Operating
Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
|
Storage
Temperature: -40°F ~ 158°F (-40°C ~ 70°C ) |
|
Operating
Humidity: 10% ~ 90% non-condensing |
|
Storage
Humidity: 5% ~ 90%
non-condensing |
