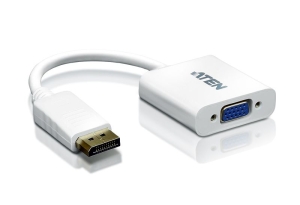

ATEN VC925-AT DisplayPort to VGA Adapter

IMG 1 of 1
Our Price:
$34.65
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
440115
(?) Brand:
ATEN
Manuf No:
VC925-AT
VC925AT
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VC925AT, VC925-AT

Aten VC925-AT DisplayPort to VGA Adapter



Overview

The VC925 is a DisplayPort to VGA adapter, allowing you to connect your devices DisplayPort output to the VGA input of a TV or other display.

The VC925 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to WUXGA (1920x1200@60Hz).

Full HD(1080P) ROHS Weee

Package Contents

1x VC925 DisplayPort to VGA Adapter

Features

  • Converts DisplayPort signals to VGA output
  • DisplayPort 1.2 a compliant
  • Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920x1200 (PC) / 1080p (HDTV)
  • No software or driver installation required

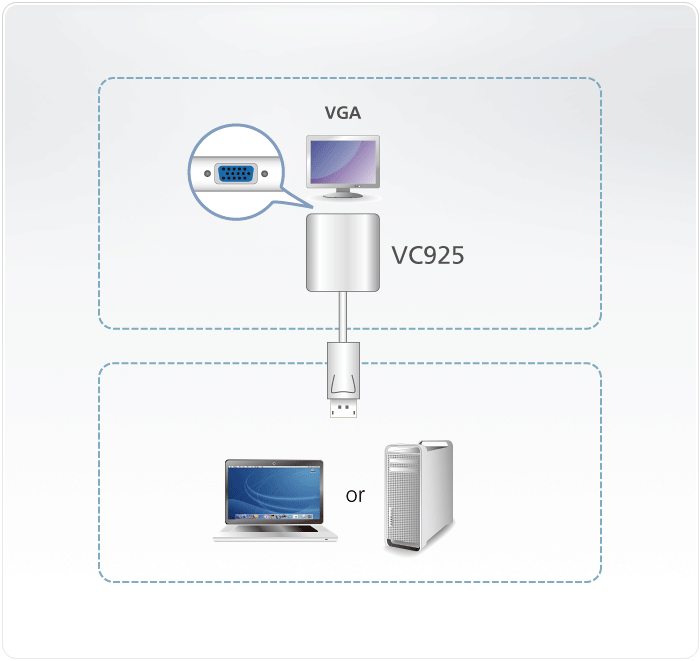

Diagram

Specifications

Video Input



Interfaces

1 x DisplayPort Male (White)





Video Output



Interfaces

1 x HDB-15 Female (Blue)





Video



Max. Pixel Clock

165 MHz

Max. Resolution

1920x1200@60Hz(PC)/1080p(HDTV)

Compliance

DP1.1a





Environmental



Operating Temperature

0 - 50 ºC

Storage Temperature

-20 - 60 ºC

Humidity

0 - 80% RH, Non-Condensing





Physical Properties



Housing

Plastic

Weight

0.04 kg ( 0.1 lb )

Dimensions (L x W x H)

18.00 x 4.50 x 1.50 cm



(7.09 x 1.77 x 0.59 in.)





Carton Lot

40 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
