Drives |
|
|
SAS hard
drives |
Up to 8 2.5-inch
or 3.5-inch SAS hot-plug hard drives |
|
(12.0 Gb/s) at speeds
of 7.2K, 10K or 15K rpm |
|
|
|
SATA hard
drives |
Up to 8 2.5-inch
or 3.5-inch SATA hot-plug hard drives |
|
(6.0 Gb/s) at speeds of
7.2K or 10K rpm |
|
|
|
JBOD Controller
Modules |
|
|
Expander
board |
1
module |
|
Sensors |
1 sensor on the
expander board |
|
|
|
Backplane Board
Connectors |
8 x SAS hard-drive
connectors |
|
1 x Power supply
connector |
|
2 x Cooling fan module
connectors |
|
1 x Sets of expander
board connector |
|
LED Indicators
Hard-drive carrier |
1 x Blue single-color
activity LED |
|
1 x Two-color LED
status indicator per drive |
|
Expander
board |
2 x One-color LED
status indicators for each SAS host port, one for SAS host port link and
one for the activity status |
|
2 x One-color LED
status indicators for each SAS expansion port, one for SAS expansion port
link and one for the activity state |
|
|
|
Controller
Back-Panel Connectors |
|
|

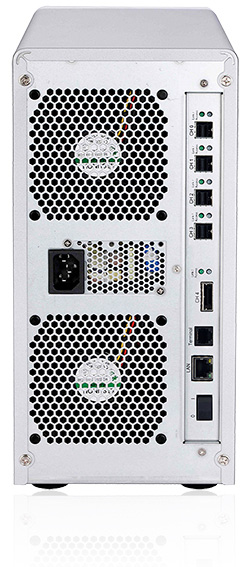

I/O
connectors |
4 x SFF-8644 + 1 x
SFF-8088 connectors for connection to the
host/expansion |
|
|
|
Management
connector |
1 x 6-pin UART RJ-11
connector |
|
1 x RJ-45 LAN connector
(manufacture manager only) |
|
Power
Supply |
Wattage 220 W maximum
continuous; |
|
Voltage 90256 V
rated |
|
Frequency 5060
Hz |
|
Amperage +12V/16A,
+5V/16A, +3.3V/14A |
|
Cooling
Fan |
|
|
Speed |
2 X 2700rpm/brushless
fan |
|
Amperage |
2 X
0.135A |
|
|
|
Physical
Dimension |
|
|
Height |
302
mm |
|
Width |
146
mm |
|
Depth |
290
mm |
|
Weight |
14.9lbs/6.8 kg (without
disk) |
|
|
|
Environmental
Temperature |
|
|
Operating |
0 to
40C |
|
Storage |
40 to
60C |
|
Relative
humidity |
|
|
Operating |
10% to 80%
(non-condensing) |
|
Storage |
5% to 95%
(non-condensing) |
