CLMJC5E100WH, CLMJC5E-100WH, 9350784013255

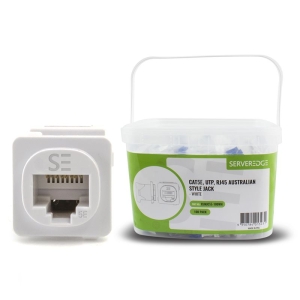

Serveredge Clipsal Style modular jacks are colour coded for both 568A and 568B standards and can be terminated using a 110 Tool. These jacks are designed for use with UTP network cable and are ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications. The outlets feature PCB technology which maintains low insertion loss, return loss and cross talk..
PRODUCT SPECIFICATION
ELECTRICAL CHARACTERISTICS
Dielectric Strength: 1000V RMS at 60Hz for 1 minute
Current Rating: 1.5 A maximum
Insulation Resistance: 200MO minimum
Contact Resistance: 1MO per contact
Temperature Range: -40°C to +70°C
Transmission Performance: ISO/IEC 11801 Class E
AS/NZS 3080:2003 Class E
MODULAR CONNECTOR MECHANICAL CHARACTERISTICS
RJ45 8-Pin Connector: FCC part 68, Subpart F and IEC 60603-7 compliant
Durability: 750 insertion cycles minimum
Material: Phosphor bronze with 50 micro- inches of gold over 100 micro-inches nickel plating
IDC CONNECTOR MECHANICAL CHARACTERISTICS
IDC Connector: Suitable insulation of 22 to 24 AWG (0.64 to 0.41mm)
Insulation Diameter (wire): 0.70 - 1.60mm
Connector Material: Phosphor bronze with nickel plating
IDC Body and Cover Material: Fire-retardant UL 94V-0, Plastic
PRODUCT FEATURE
* Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 andANSI/TIA/EIA-568-B Series Connecting Hardware Standards.
* Flexible locking tabs.
* UL 94V-O rated.
* Accepts solid 22-24 AWG diameter conductors.
* Universal colour-coding for 568A and 568B Standards.
* Lead frame technology eliminates the possibility of PCB failures.
