Thermaltake CL-W080-PL00BL-A Pacific PR15-D5
Reservoir/Pump Combo
Overview

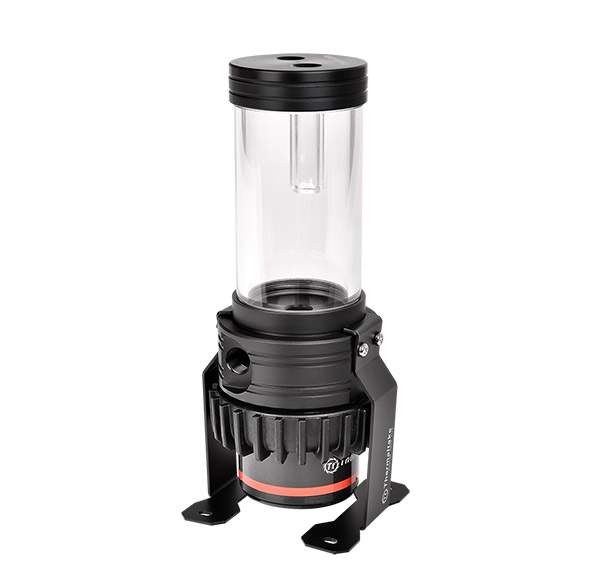

Pacific PR15-D5 Reservoir/Pump Combo
Thermaltake launches the Pacific PR Series tube reservoir and D5 pump for the
ultimate in custom PC watercooling configurations. Featuring exceptional
performance and unrivalled reliability, the PR15-D5 is manufactured from high
quality POM and PMMA material to provide a crystal clear, high performance,
durable solution. By giving users ideal mounting, fitting and flow, the PR15-D5
is the right choice for PC enthusiasts. Choose from: 200ml or 300ml to make your
system a showcase for all to see with the Thermaltake Pacific PR Series.
Tt LCS Certified is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it sets
the benchmark for all true LCS chassis and is applied only to products that meet
our stringent design standards for delivering what hardcore enthusiasts demand.
The Tt LCS certification is a way for Thermaltake to designate to all power
users the chassis which have been tested for best compatibility with extreme
liquid cooling configurations.
Driven Performance
Made in Taiwan, PR15-D5 top cap supports rubber washers for a proper seal,
including two predrilled G1/4 ports for fittings. Featuring 6mm thick of the
pipe wall, Pacific PR Series can sustain the maximum pressure up to 99 PSI
(Pounds per square inch). Also, users can easily open out the top cap, cleaning
the reservoir thoroughly.

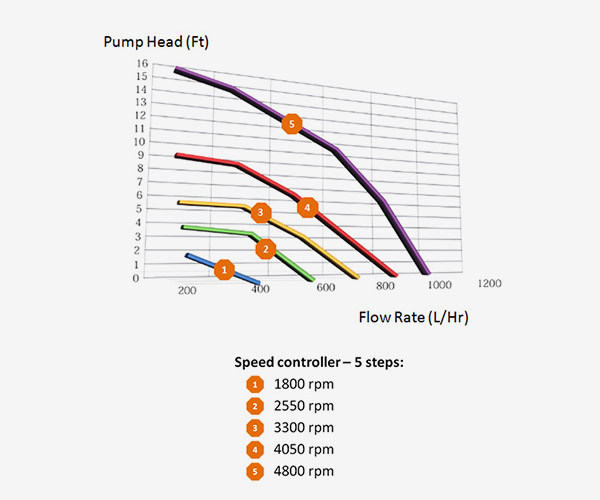

Ultimate Speed Controller and High-lift Pumping
The PR15-D5 is designed with a manual speed control knob to provide five
speeds. Maximum discharge up to 1135L/hr provides high-performance cooling to
your components. High-lift pumping of the pump head reaches up to 15 feet high
at the maximum speed. Enthusiasts can build up advanced liquid cooling loop, two
GPUs, three radiators, or even more DIY components at the same time.
The
pump is compatible with Thermaltake Pacific Series reservoirs and fittings,
further increasing system performance, providing ultimate control for your water
cooling system.

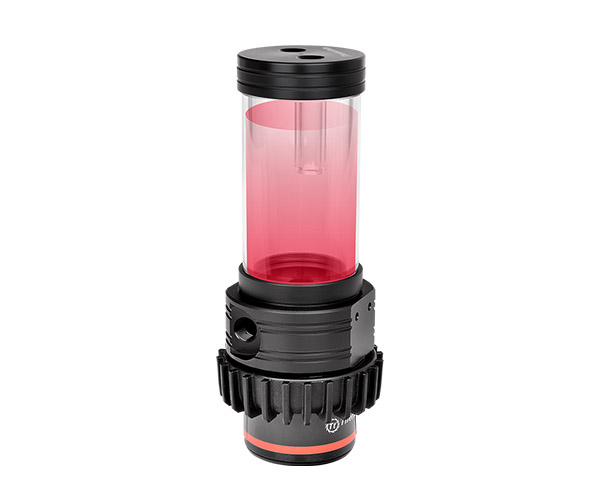

Heat-resistant Acrylic Tank
The Pacific PR Series tube reservoirs are all made of reliable, light
weighted POM and PMMA construction, which is crystal clear and highly durable.
High quality acrylic (PMMA) tube maximum working temperature: 131
DegreeF (55 DegreeC).
Easy and Flexible Application
Along with two brackets connected to both ends, Pacific PR Series is
solid hold inside the chassis and allows enthusiasts to build up superior water
cooling system from an aesthetic standpoint and incorporate externally-modular
upgrades for their chassis. The Pacific PR Series can be installed either
horizontally or vertically, making the chassis out of the ordinary!
Cautions:
Thermaltake
recommends the following steps to be taken after completing your water loop
setup
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system – copper, brass, nickel, aluminum, and steel – from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or
unwanted particles sticking to your tubes, radiators and other cooling
components.
- Coolant might fade over time.
Specificaitons
|
P/N |
CL-W080-PL00BL-A |
|
Dimension |
94.2 (L) x 87.4 (W) x
228.1 (H) |
|
Material |
POM+
PMMA |
|
Capacity |
200
ml |
|
Maximum
head |
15 feet
(4.5m) |
|
Maximum Flow
Rate |
1135
L/h |
|
Maximum
pressure |
50
PSI |
|
Input
current |
8 ~ 24
V |
|
Connector |
4
Pin |
|
Pump
Speed |
P1: 1,800
RPM |
|
P2: 2,550
RPM |
|
P3: 3,300
RPM |
|
P4: 4,050
RPM |
|
P5: 4,800
RPM |
|
Screw
Thread |
G
1/4 |
|

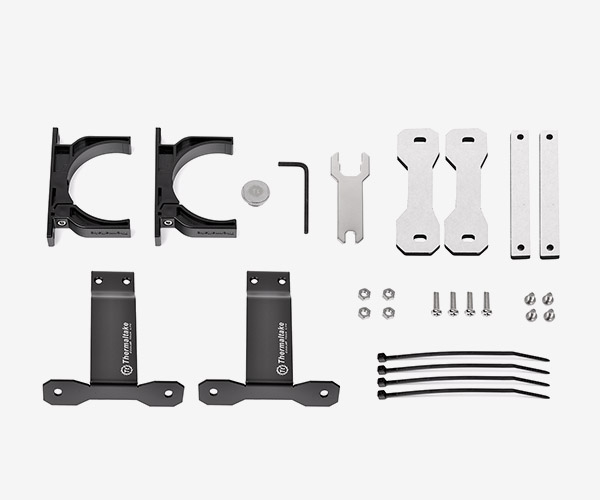

Parts |
1. Stopper *1 (G 1/4
) |
|
2. Bracket
*2 |
|
3. Clip
*2 |
