All stock codes associated to this product
CL-F063-PL12SW-A, CLF063PL12SWA, II37096

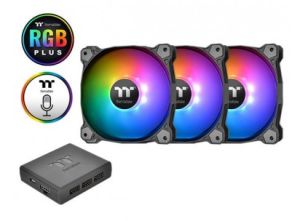

Thermaltake CL-F063-PL12SW-A Pure Plus 12 LED RGB
Radiator Fan TT Premium Edition (3-Fan Pack)
Overview
Pure Plus 12 LED RGB Radiator Fan TT Premium Edition (3-Fan
Pack)
Specially designed for mainstream market, Thermaltake Pure Plus 12 RGB
features compression blades, hydraulic bearing, and a 16.8 million colors LED
ring with 9 addressable LEDs. Supporting Thermaltake’s patented TT RGB PLUS
Software and AI interactive voice control, the Pure Plus 12 RGB lights up your
system without sacrificing performance!
TT RGB PLUS
TT RGB PLUS Ecosystem is the intelligent lighting system for PCs that
combines the most advanced addressable LED lighting with Thermaltake’s patented
TT RGB PLUS Software. TT RGB PLUS ecosystem provides nearly unlimited
possibilities for playing with colors, synchronizing lights to games, music, CPU
temperatures or other TT RGB PLUS products, including case fans, CPU/VGA
waterblocks, AIO CPU coolers, PSUs, LED strips and peripherals. The patented
software allows users to change the light modes, colors, speeds, brightness, fan
speeds, and even supports AI voice control in iOS and Android devices.
Patented TT RGB PLUS Software & App
Monitor the fan performance, adjust the fan speeds, and customize the
lighting effects for Thermaltake RGB PLUS series products with the patented TT
RGB PLUS Software and an exclusively designed mobile app. Choose a function from
below and scroll down to read the details.
SyncALL, Say “Hello TTâ€
Thermaltake AI Voice Control
Talking to TT RGB PLUS App is an easier, faster way to set lights for your
systems. You can ask it to turn the lights on or off, switch lights modes, dim
the lights, change light colors, or adjust lights speeds or fan speeds. Choose a
video from below to see how it works.
Fan Speeds
Simply drag the slider bar to adjust your fan speed RPM on a dedicated
control panel. The software is also included a number of preset fan modes that
allow you to set the fans to ‘Silent Mode’ where the RPM performs between a 500
– 1500 RPM range, or ‘Performance Mode’ which operates and dynamically adjusts
all the way up to 1500 RPM. Besides running at the optimal RPM range, you can
customize the speed by disabling PWM.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer
Chroma ecosystem. Users who have installed both the TT RGB PLUS Software and
Razer Synapse 3 can experience synchronized gaming and RGB lighting effects on
their TT RGB PLUS liquid cooling system and gaming gear! From cooldown timers,
health bars, and flashy ultimate indicators, to subtle ambient lighting that
sets the perfect mood for each game, Razer Chroma provides an experience that
transcends the screen and into your full setup, for a truly immersive
experience.
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service,
allowing you to control the lights or fan speeds by talking to the Alexa-enabled
device. With the support of Amazon Alexa, TT RGB PLUS products also offer an
additional visual cue for checking current weather condition in your locaiton or
anywhere in the world. All you have to do is simply starting the sentence with
“Alexa, tell Thermaltakeâ€, then the lighting color will correspond to the
weather condition in the location.
16.8 Million Colors LED Design
Featuring 9 addressable LEDs, great light coverage, and uniform color and
brightness, the built-in LED ring can paint your build with 16.8 million colors.
Digital Lighting Controller
The controller is designed with a DIP switch on the back. Hence, you can set
a number for each controller easily. You can add up to 5 devices to one lighting
controller and up to 16 controllers to the software. The controller and the
coding guide are included in all packs. *It is recommended to connect up to 3
controllers on one peripheral cable (Molex) only.
9 Fan Blade Design
120mm fan with unique 9 blades design is engineered to generate higher
airflow without compromising on ultra-silent operation.
Hydraulic Bearing with Low-Noise Design
Fan Speed(standard)
1500 RPM
Noise Level (standard)
25.8 dBA
Fan Speed(w/ Low Noise Mode)
500 RPM
Noise Level(w/ Low Noise Mode)
20.6 dBA
The hydraulic bearing self-lubricates with a high-quality, friction-reducing
substance, which lowers operation noise while improving thermal efficiency. The
seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
In-mold injection anti-vibration rubber pads provide a hassle-free usage with
80% protection coverage for all corners.
Specifications
P/N |
CL-F063-PL12SW-A
(Fan x3, Controller x1) |
Fan
Dimension |
120
x 120 x 25 mm |
Interface |
USB
2.0 connectors (9 Pin) |
System
compatibility |
Windows
7 / 8 / 8.1 / 10 |
Fan
Started Voltage |
9.0
V |
Fan
Rated Voltage |
12
V & 5V |
Rated
Current |
Fan
0.44 A (one fan, fan + LED) |
Power
Input |
12V
– 4.32 W , 5V – 11.52W (Fan*3) |
Fan
Speed |
500
~ 1500 R.P.M |
Max.
Air Pressure |
1.59mm-H2O |
Max.
Air Flow |
56.45
CFM |
Noise |
25.8
dB-A |
Bearing
Type |
Hydraulic
Bearing |
Life
Expectation |
40,000
hrs,25℃ |
Weight |
164
g |
