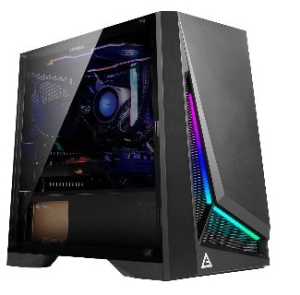

Antec DP301M Compact Micro-ATX Gaming
Case
Overview
DP301M is the micro-ATX version of another Antec new gaming series - Dark
Phantom. As the Dapper Dark Phantom, DP301M still keeps excellent quality and
the capability of being equipped with high-performance components. It may be
small and light, but we never neglect every detail of the case. The ARGB
boomerang front panel design represents the agility and speed in the gaming
realm. DP301M is the perfect choice for gamers to enter the gaming world.
- Net Weight: 4.9 Kgs
- Gross Weight: 5.9 Kgs
Subtle Intelligence
Mesh design will not stop the systematic airflow.
Flexible Equipment
Detachable front panel for easy dust clearance.
LED Mode Control
A. Motherboard support: Up to Micro-ATX
B. Preparation for Basic Storage
C. Graphics Card Support: Up to 360 mm
D. PSU Support: Up to 170 mm
E. CPU Cooler Support: Up to 160 mm
Ingenious Thermal Control
Compact Structural InteriorM for Exquisite Gear and
Updates
Specifications
|
Case
Specification |
|
|
Dimensions |
420
x 210 x 402mm (LxWxH) |
|
Form
Factor |
Micro-ATX |
|
Materials |
SPCC
& Plastic |
|
Mainboard
Support |
Micro-ATXMini-ITX |
|
Front
Access & Controls |
USB3.0
x 2, MIC/AUDIO(HD), Power, Reset, Mode |
|
Side
Panel |
Tempered
Glass Side Panel |
|
|
|
|
Expansion
& Drive Bays |
|
|
Expansion
Slots |
4 |
|
5.25" |
0 |
|
3.5"/2.5"
(convertible) |
2 |
|
2.5" |
2 |
|
|
|
|
Cooling |
|
|
Front |
3
x 120mm / 2 x 140mm |
|
Top |
2
x 120mm / 2 x 140mm |
|
Rear |
1
x 120mm |
|
Included
Fan(s) |
1
x 120mm in rear |
|
|
|
|
Radiator
Support |
|
|
Front |
≤
280mm |
|
Rear |
≤
120mm |
|
|
|
|
Clearance |
|
|
Max
GPU Length |
≤
360mm |
|
Max
CPU Height |
≤
160mm |
|
Max
PSU Length |
≤
170mm |
|
|
|
|
Others |
|
|
Dust
Filters |
Top
/ Bottom |
|
Net
Weight |
4.9
kgs |
|
Gross
Weight |
5.9
kgs |
|
Package
Dimension |
455
x 260 x 485 mm (DWH) |
